Product Overview

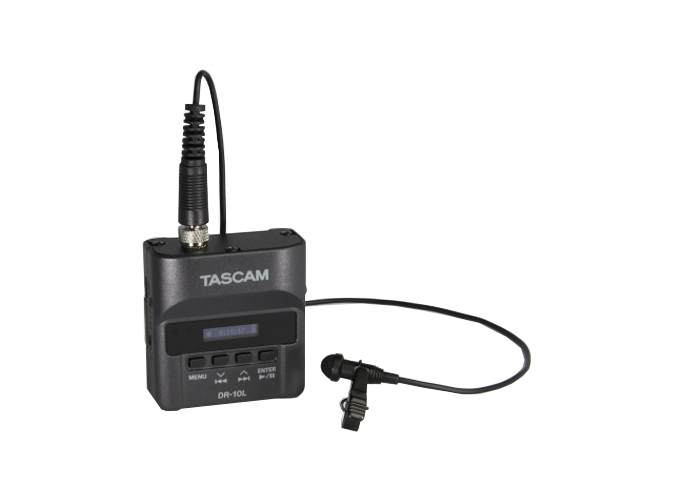

Ultra-compact and incredibly convenient, the TASCAM DR-10L is a digital recorder/lavalier microphone combo. The included wired lavalier microphone is affixed via a ⅛" screw-down lock connector for added flexibility, and is compatible with most Sennheiser lavalier mics and other mics with a compatible connector.
It's designed especially for both creative filmmakers and the busy videographers, making for an immensely powerful problem-solving tool, and delivering professional sonics and remarkable convenience.
Great for location recording, this system can be mounted to each on-camera actor (additional systems sold separately), eliminating the need for booms, wires, or expensive (and unpredictable) wireless systems. Ideal for live events, a unit can be worn by each and every member of even the largest wedding party to ensure that every last word is captured (additional systems sold separately). The combination of a portable, high-quality digital recorder matched with a tiny, professionally-spec'd microphone makes the DR-10L an inspiring tool for experimental audio designers as well.
Includes
- DR-10L Ultra-portable Digital Stereo Audio Recorder unit
- Lavalier microphone with microphone clip and windscreen
- USB cable
- Carrying case
- Belt Clip
- Owner's Manual (including warranty)
Features
- 44.1kHz/48kHz, 16-/24-bit linear PCM mono/poly recording
- Supports WAV format (compatible with BWF format)
- Media: micro SD/SDHC cards (supports 32GB capacities)
- Lavalier microphone with microphone clip and windscreen included (cable length: 160cm)
- Sliding record switch and hold function to prevent misoperation during recording
Specifications
- Mic Input: Lavalier ⅛" screw-down connector (Sennheiser format)
- Included Microphone: Lavalier, omni pattern
- Recording Media: microSD/SDHC card
- Recording Format: WAV/BWAV file
- Recording Resolution: 44.1/48kHz, 16- or 24-bit
- Dual Recording: Yes
- Limiter: Yes
- Audio Out: ⅛" stereo headphone jack
- Display: High-contrast OLED
- Power: 1 AAA battery or USB power
- Mounting Hardware: Built-in Belt Clip
- Recording media:
- microSD card (64MB to 2GB)
- microSDHC card (4GB to 32GB)
- Recording format: WAV(BWF)
- Sampling frequency: 44.1kHz, 48kHz
- Quantization bit rate: 16-/24-bit
- Analog audio Inputs:
- Connector: 1/8” (3.5mm) mini TRS JACK with screw-down lock
- MIC input gain: LOW / MID LOW / MID / HIGH / HIGH+
- Maximum input sound pressure: 115dB SPL
- Maximum input level: -15dBu (Gain L)
- Minimum input level: -55dBu (Gain H+)
- Mic input gain: +14dB to +38dB
- Input impedance: 33kΩ (mic bias off) / 2kΩ (mic bias on)
- Phones Connector: ⅛" (3.5mm) stereo mini jack
- USB:
- Connector: Micro-B type 4-pin
- Protocol: USB2.0 HIGH SPEED mass storage class
- Power: 1 AAA battery (Alkaline battery/Ni-MH battery/ Lithium battery), USB bus power
- Power consumption: 0.45W
- Battery operation time, WAV, 24-bit / 48kHz Rec, without headphones, limiter: OFF, Dual Rec: OFF, JEITA Rec:
- Alkaline battery (EVOLTA): Approx 10 hours
- Ni-MH battery (eneloop): Approx 8 hours
- lithium battery (Energizer ULTIMATE LITHIUM): Approx 15.5 hours
- Battery (RTC): Lithium x 1 (built-in with soldering)
- Dimensions (W x H x D): 2.0" x 2.2" x 1.0" (52 x 55.6 x 24.4mm)
- Weight:
- Including Battery: 2.2oz. (63g)
- Without Battery: 1.79oz. (51g)
- Operating temperature: 0°C to 40°C
- Audio Performance:
- Frequency response: 20Hz - 22kHz +1/-2dB (IN to PHONES)
- Distortion: 0.05% (1kHz sine wave, @ maximum input level)
- S/N Ratio: 88dB or higher (phones volume max, mic gain L selected)
- Maximum input level: -15dBu (Gain L)
- Minimum input level: -55dBu (Gain H+)
- Mic input gain: +14dB to +38dB
- Lavalier Microphone Performance:
- Microphone Sensitivity: -42dBV/Pa
- Pickup pattern: Omni
- Maximum input sound pressure: 115dB SPL
- Cable Length: 63" (160cm)
