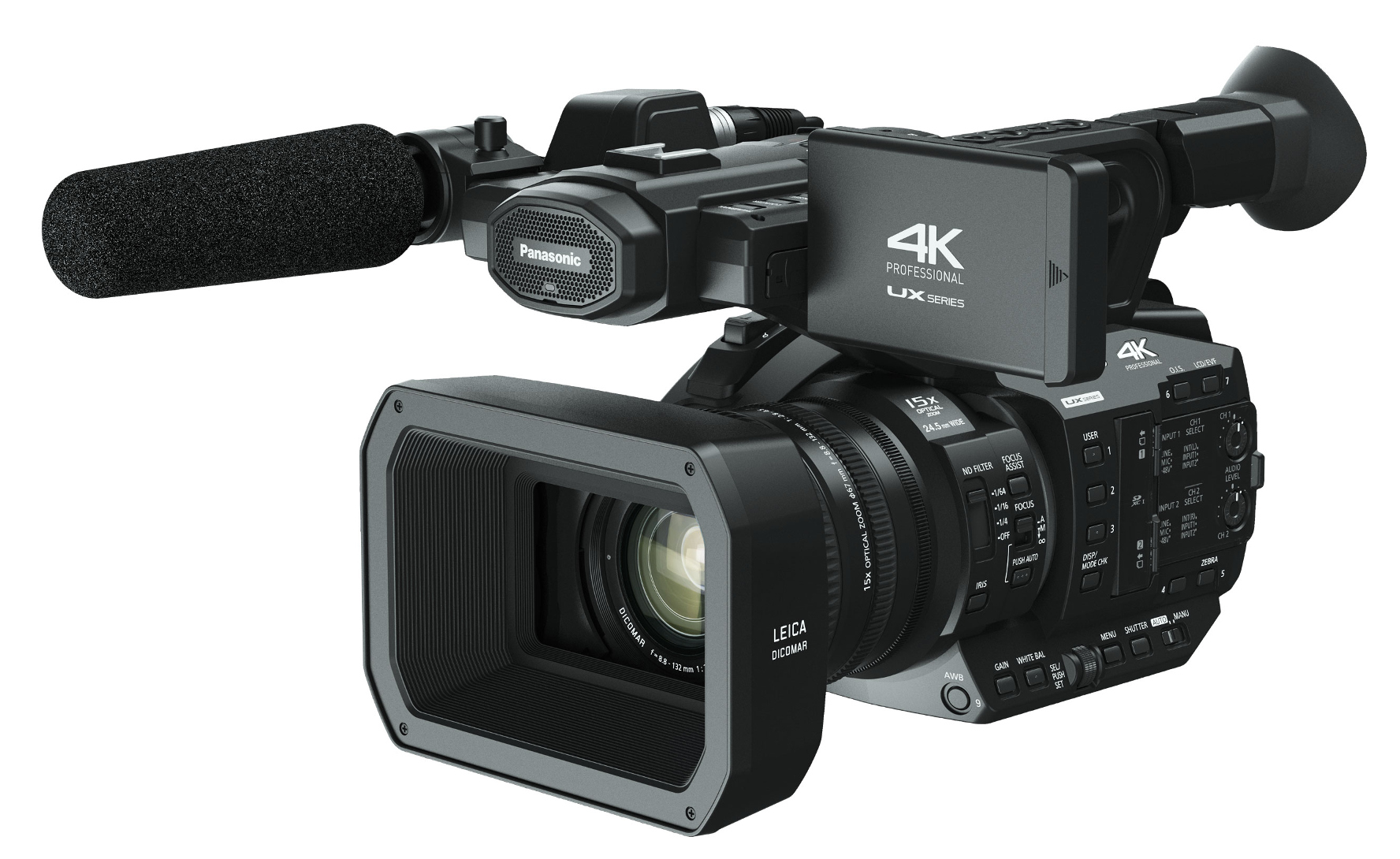

Panasonic AG-UX90PJ
4K Camcorder with 1" MOS Sensor and Wide-Angle 15x Optical Zoom Lens

OUR PART #:  AGUX90PJ

The AG-UX90 is the value model in Panasonic's 4K UX Professional Camcorder Series...
Learn More
Sale Price: $2,095.00
List Price: $2,295.00
You save 9%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Panasonic AG-UX90PJ
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The AG-UX90 is the value model in Panasonic's 4K UX Professional Camcorder Series, featuring a 1” (effective size) high-sensitivity MOS sensor with 15x optical zoom and a 24.5 mm wide angle lens. With its extensive focus assist features, multiple recording formats in 4K and HD, as well as precise image adjustment functions, the economical UX90 is the pro camcorder to upgrade to for entry-level 4K acquisition.

Panasonic AG-UX90 Includes:

  • AG-UX90 camera
  • Battery (AG-VBR59)
  • Battery charger (AG-BRD50)
  • AC adaptor
  • Microphone holder
  • Screw for microphone holder (12 mm)
  • AC cable x 2
  • Eye cup
  • Lens hood
  • INPUT terminal cap
  • Operating instructions

NOTE: Some gear shown above are NOT INCLUDED and sold separately. For more information on this and other products, please contact your Sales Pro.

Panasonic AG-UX90PJ Features:

  • HIGH PERFORMANCE 4K LEICA DICOMAR LENS:
    • Improve student performance by amplifying the teacher's lesson. The Enhanced Audio System boosts instructors' voices via a small, hands-free, wireless pendant that includes a push-button emergency notification. It's lightweight, easy to wear, keeps the focus on the lesson plan and provides safety when essential.
  • 4K OPTICAL IMAGE STABILIZATION:
    • The AG-UX90’s 15x optical zoom and wide angle lens (24.5 mm) ensures you get the shot you need, near or far. The i.Zoom function (HD mode only) increases the zooming capability to a maximum of about 25x zoom, while still maintaining high resolution. If needed, Digital Zoom (2x, 5x or 10x) gives you super-telephoto magnification without a significant drop in light intensity.
  • EASIER FOCUSING IN 4K:
    • The AG-UX90 is equipped with intelligent auto focus technology, offering industry-leading focusing speed, tracking performance and image stability. This top-level performance is achieved through the primary focus algorithm, which assures accurate and quick focus adjustment. A high-precision, high-speed Micro Drive Focus Unit accurately tracks subjects, even when experiencing abrupt changes in focal distance
    • The UX90 provides numerous options to optimize your settings, including adjustment of AF speed and sensitivity, as well as the width of the effective AF area. Other helpful features include one-push AF, the ability to set up to 3 preset focus positions and on-screen focus assist with colored focus areas.. The UX90 also can be put in manual focus mode for manual adjustments with the focus ring.
  • VARIETY OF RECORDING FORMATS:
    • The camcorder’s variety of recording modes with selectable image quality, frame rate and bit rate settings are ideal for a wide range of applications, from cinema production to online distribution. Images can be recorded with a resolution of UHD (3840 x 2160)/30p or FHD (1920 x 1080)/60p. Versatile and easy-to-use MOV (QuickTime), MP4 and AVCHD file formats are supported.
  • VFR (2 fps to 60 fps):
    • Full HD Variable Frame Rate (VFR) recording can be set in 10 steps from 2 fps to 60 fps (60Hz) / 9 steps from 2 fps to 50 fps (50Hz).
  • DUAL SD MEMORY CARD SLOTS:
    • The UX90 comes equipped with two SD cards slots, enabling options such as unlimited relay recording and simultaneous recording.
  • WIRELESS CAMERA OPERATION WITH ROP IPAD APP:
    • The AG ROP app for iPad is available free of charge from the Apple App Store. It enables wireless remote control of the AG-UX90, with installation of a wireless module (optional AJ-WM50/AJ-WM30). In addition to a multitude of control functions, such as camera settings, picture quality adjustment, REC start/stop and menu setting, the AG ROP app allows control of the UX90's internal lens for remote operation of the i.Zoom, zoom and focus. It also displays a thumbnail view and a preview view, so sub-recording clips can be displayed as thumbnails and previewed on an iPad.

Panasonic AG-UX90PJ Specifications (partial):

  • General:
    • Power:
      • DC 7.28 V (when the battery is used)
      • DC 12 V (when the AC adaptor is used)
      • Power Consumption: 12.2 W (when the LCD monitor is used)
      • Operating Temperature: 32°F to 104°F (0°C to 40°C)
      • Operating Humidity: 10 % to 80 % (no condensation)
    • Weight:
      • Body: Approx. 4.19 lb (1.9 kg) (body only, excluding lens hood, battery, and accessories)
      • Shooting: Approx. 5.07 lb (2.3 kg) (including lens hood, battery, and eye cup)
    • Dimensions (WxHxD):
      • Excluding protrusion and eye cup: 6-21/32" x 7-11/16" x 13-3/8" (169 x 195  x 340 mm)
      • Including eye cup, excluding protrusion: 6-21/32" x 7-11/16" x 15-1/32" (169  x 195  x 382 mm)
  • Camera Unit:
    • Pickup Device: 1.0-type MOS solid state image sensor
    • Effective Pixels:
      • 17.78 megapixel: FHD 59.94p/29.97p/23.98p
      • 8.59 megapixel: UHD 29.97p/23.98p
    • Lens:
      • Optical image stabilizer lens, optical 15x motorized zoom
      • F2.8 to F4.5 (f=8.8 mm to 132 mm)
      • 35 mm equivalent:
        • f=24.5 mm to 367.5 mm: FHD 59.94p/29.97p/23.98p
        • f=35.4 mm to 531.0 mm: UHD 29.97p/23.98p
      • Filter Diameter: 67 mm
      • ND Filter: 4 Positions (OFF, 1/4, 1/16, 1/64)
      • Shortest Shooting Distance (M.O.D.): Approx. 1.0 m from the front lens
    • Gain Setting:
      • L/M/H selector switch (toggle switch)
      • Standard mode: 0 dB to 30 dB (Adjustable in 1 dB steps) (Automatic setting can be assigned to L/M/H)
      • Extended ON: –3 dB to 30 dB (Adjustable in 1 dB steps) (Automatic setting can be assigned to L/M/H)
      • 33 dB and 36 dB switched (when assigning [S.GAIN] to the USER button)
    • Color Temperature Setting:
      • ATW, ATW LOCK, Ach, Bch, preset 3200 K/preset 5600 K/VAR (2000 K to 15000 K)
    • VFR Recording Frame Rate:
      • 30p mode: 2, 15, 26, 28, 30, 32, 34, 45, 60 (fps)
      • 24p mode: 2, 12, 20, 22, 24, 26, 28, 36, 48, 60 (fps)
    • Minimum Subject Illumination:
      • 1.3 lx  (F2.8, Super Gain 36dB, Manual slow shutter 1/30s)
      • Digital Zoom: 2x/5x/10x, i.Zoom: max. 25x (optical zoom + digital zoom)
    • Lens Hood: Hood with lens cover
  • Memory Card Recorder:
    • Recording Media:*1
    • SDHC memory card (4 GB to 32 GB),
    • SDXC memory card (48 GB to 128 GB)
    • UHS-I supported

NOTE: *1: An SD memory card with a capacity of UHS Speed Class 3 (U3) is required to shoot videos with a bit rate of 100 Mbps or higher.

    • Recording Slot: Slot x 2
    • System Format: 59.94 Hz
    • Recording Format: MOV, MP4, AVCHD
    • 2 Slot Functions: Relay, Simultaneous
    • Still Picture Recording Mode: JPEG (DCF/Exif2.2)
    • Still Picture Recording: Motion Picture Playback:
      • 8.3 M: 3840 x 2160 (16:9)
      • 2.1 M: 1920 x 1080 (16:9)
      • 0.9 M: 1280 x 720 (16:9)
  • Digital Video:
    • Video Signal for External Output: 8 bit 4:2:2
    • Recording Video Signal: 8 bit 4:2:0
    • Video Compression Format: MPEG-4 AVC/H.264 High Profile (MOV/MP4/AVCHD)
  • Digital Audio:
    • Sampling Frequency: 48 kHz/16 bit 2 ch
    • Audio Signal Format: LPCM (MOV/MP4), Dolby Digital (AVCHD)
    • Headroom: 12 dB

NOTE: For additional specifications and information, please see the brochure and specifications sheet in the documentations tab.
