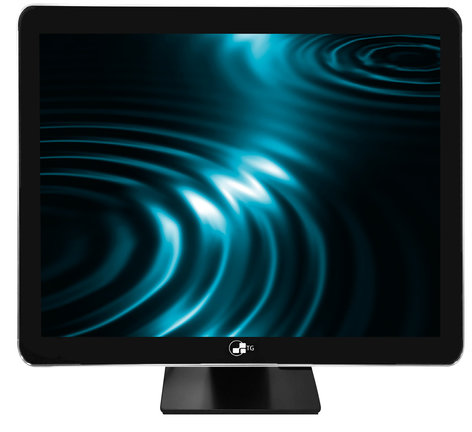

Tech Global Inc EVO192
19” Evolution-Touch LED Touch Screen

OUR PART #  EVO192

Call for price! Not available online.


Tech Global's EVO192 19" Evolution Multi-Touch LED Touch Screen is part of their Evolution Series of touch screen monitors. It features 10 point multi-touch using a capacitive stylus, your finger—even wearing nitrile, latex and vinyl gloves. It uses advanced technology to eliminate both wide and narrow band interference, and is compatible with Windows 7/8/10, Mac OS X, and Linux.

Applications:

  • Desktop
  • Medical (EMR/ EHR)
    • Patient Kiosks
    • Nurse Stations
    • Dental
    • Pharmacy Automation
    • Bedside
  • Government
    • Mission Critical
    • Utilities & Defense

Tech Global EVO192 Features:

  • Touch Screen Performance (Evolution-Touch)
    • Superior High-Performance Projected Capacitive (Unlimited Touch Activations)
    • 10 Point Multi-Touch (Finger, Capacitive Stylus, Nitrile, Latex and Vinyl Gloves)
    • USB HID compliant & Driver free with no calibration
    • Ultra Fast Precision Touch Response
    • Requires human intentional touch (HIT)
    • Anti-Fingerprint Oleophobic nano-coating
    • Anti-Glare Diffuses mirror-like reflection
    • Noise Immunity (Advanced technology to eliminate wide band and narrow band interference)
    • 3mm thick, sealed full glass display
    • Windows 8 (Swipe Zone)
    • Multiple monitor supported (W8)
    • Touch operation is unaffected by surface contaminants
  • Display Performance:
    • Medical "A" Grade LCD Panel/ 5:4
    • Edge-to-Edge sealed 3mm glass surface (Infection Control)
    • Industrial Cooling
    • Heavy duty shielded board level components
    • America's Best Commercial Warranty 4 Years with advanced replacement
    • (MTBF) 124,000 Hours
    • Energy Star Compliant
    • HDMI (HDCP Compatible) input provides expanded connectivity with advanced technology
    • VESA compliant
    • Locking power supply connection
    • Easily disinfected using any hospital cleaning agent
    • Made in the USA

Tech Global EVO192 Specifications:

  • Display: Medical "A" Grade Display/ Edge-Lit LED LCD
    • Viewable Image Size: 19"/ 5:4
    • Mean Time Between Failure (MTBF): 124,000 Hours
  • Touch Interface: Evolution-Touch (PCT/ Anti-Fingerprint): USB/ HID Compliant
    • Pixel Pitch 0.25mm
    • Pixels Per Inch: 102 @ native resolution
    • Brightness: 250 cd/m²
    • Contrast Ratio: 1000:1
    • Viewing Angle: 178° Vert./178° Hor.
    • Response Time: Rapid Response (25ms)
  • Synchronization Range:
    • Horizontal: 31.5 kHz to 81.1 kHz (Analog/Digital)
    • Vertical: 56 to 76 Hz
  • Input Signal
    • Video: ANALOG 0.7 Vp-p/75 Ohms
    • Sync: TTL Level (Positive/Negative)
    • Input Connectors: HDMI, DVI-D and VGA 15-pin D-sub
    • Native Resolution: 1280 x 1024 HD @ 60 Hz
    • Internal Speakers: No
  • Power Consumption: On 12W/ Power Savings Mode .35W
  • Physical:
    • Dimensions:
      • Net (with stand) 16.8" W x 13.9" H x 8.1" D
      • Net (without stand) 16.8" W x 13.9" H x 1.6" D
    • Net Weight (with stand): 14 lbs.
    • VESA Hole Configuration Specification: 100 x 100mm
  • Environmental Conditions:
    • Operating Temperature: 5-35C/41-95F
    • Operating Humidity: 20-80%
    • Operating Altitude: 6562ft (2000m)
    • Storage Temperature: -10-60C/14-140F
    • Storage Humidity: 10-85%
    • Storage Altitude: 40,000ft (12,192m)
  • Certifications:
    • 60601-1
    • IPX2
    • IP34
  • Warranty: 4 years parts and labor including backlight and touch components

Tech Global Inc EVO192
19” Evolution-Touch LED Touch Screen

OUR PART #  EVO192

Product Information:

Tech Global's EVO192 19" Evolution Multi-Touch LED Touch Screen is part of their Evolution Series of touch screen monitors. It features 10 point multi-touch using a capacitive stylus, your finger—even wearing nitrile, latex and vinyl gloves. It uses advanced technology to eliminate both wide and narrow band interference, and is compatible with Windows 7/8/10, Mac OS X, and Linux.

Applications:

  • Desktop
  • Medical (EMR/ EHR)
    • Patient Kiosks
    • Nurse Stations
    • Dental
    • Pharmacy Automation
    • Bedside
  • Government
    • Mission Critical
    • Utilities & Defense

Tech Global EVO192 Features:

  • Touch Screen Performance (Evolution-Touch)
    • Superior High-Performance Projected Capacitive (Unlimited Touch Activations)
    • 10 Point Multi-Touch (Finger, Capacitive Stylus, Nitrile, Latex and Vinyl Gloves)
    • USB HID compliant & Driver free with no calibration
    • Ultra Fast Precision Touch Response
    • Requires human intentional touch (HIT)
    • Anti-Fingerprint Oleophobic nano-coating
    • Anti-Glare Diffuses mirror-like reflection
    • Noise Immunity (Advanced technology to eliminate wide band and narrow band interference)
    • 3mm thick, sealed full glass display
    • Windows 8 (Swipe Zone)
    • Multiple monitor supported (W8)
    • Touch operation is unaffected by surface contaminants
  • Display Performance:
    • Medical "A" Grade LCD Panel/ 5:4
    • Edge-to-Edge sealed 3mm glass surface (Infection Control)
    • Industrial Cooling
    • Heavy duty shielded board level components
    • America's Best Commercial Warranty 4 Years with advanced replacement
    • (MTBF) 124,000 Hours
    • Energy Star Compliant
    • HDMI (HDCP Compatible) input provides expanded connectivity with advanced technology
    • VESA compliant
    • Locking power supply connection
    • Easily disinfected using any hospital cleaning agent
    • Made in the USA

Tech Global EVO192 Specifications:

  • Display: Medical "A" Grade Display/ Edge-Lit LED LCD
    • Viewable Image Size: 19"/ 5:4
    • Mean Time Between Failure (MTBF): 124,000 Hours
  • Touch Interface: Evolution-Touch (PCT/ Anti-Fingerprint): USB/ HID Compliant
    • Pixel Pitch 0.25mm
    • Pixels Per Inch: 102 @ native resolution
    • Brightness: 250 cd/m²
    • Contrast Ratio: 1000:1
    • Viewing Angle: 178° Vert./178° Hor.
    • Response Time: Rapid Response (25ms)
  • Synchronization Range:
    • Horizontal: 31.5 kHz to 81.1 kHz (Analog/Digital)
    • Vertical: 56 to 76 Hz
  • Input Signal
    • Video: ANALOG 0.7 Vp-p/75 Ohms
    • Sync: TTL Level (Positive/Negative)
    • Input Connectors: HDMI, DVI-D and VGA 15-pin D-sub
    • Native Resolution: 1280 x 1024 HD @ 60 Hz
    • Internal Speakers: No
  • Power Consumption: On 12W/ Power Savings Mode .35W
  • Physical:
    • Dimensions:
      • Net (with stand) 16.8" W x 13.9" H x 8.1" D
      • Net (without stand) 16.8" W x 13.9" H x 1.6" D
    • Net Weight (with stand): 14 lbs.
    • VESA Hole Configuration Specification: 100 x 100mm
  • Environmental Conditions:
    • Operating Temperature: 5-35C/41-95F
    • Operating Humidity: 20-80%
    • Operating Altitude: 6562ft (2000m)
    • Storage Temperature: -10-60C/14-140F
    • Storage Humidity: 10-85%
    • Storage Altitude: 40,000ft (12,192m)
  • Certifications:
    • 60601-1
    • IPX2
    • IP34
  • Warranty: 4 years parts and labor including backlight and touch components
