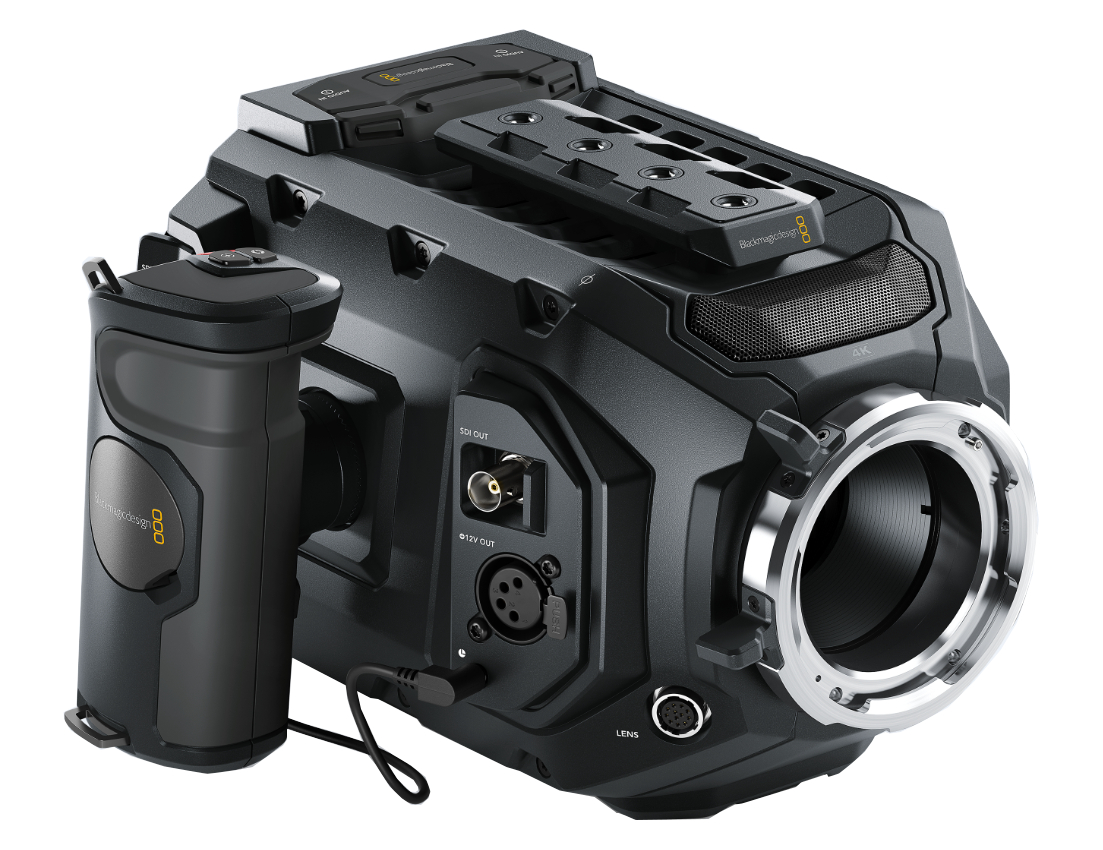

Blackmagic Design CINEURSAM46K/PL
URSA Mini 4.6K PL

OUR PART #:  CINEURSAM46K/PL

The Blackmagic Design CINEURSAM46K/PL URSA Mini is designed to be used on feature films, television shows, commercials, indies, documentaries, music videos and more.
Learn More
Our Price: $5,495.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Blackmagic Design CINEURSAM46K/PL
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Blackmagic Design CINEURSAM46K/PL URSA Mini is designed to be used on feature films, television shows, commercials, indies, documentaries, music videos and more. The stunning quality of its 4.6K sensor with 15 stops of dynamic range lets you capture epic cinematic shots, while its compact size is perfect for solo shoots or smaller crews. You can easily customize URSA Mini with high quality cinema lenses, rails, matte boxes and more. The optional shoulder mount kit features a quick release mounting plate so you can go from handheld to shoulder or tripod in seconds, making it perfect for pickup and run shooting situations. It’s the handheld Super 35mm digital film camera that you can use anywhere.

Blackmagic Design CINEURSAM46K/PL Includes:

  • Blackmagic URSA Mini 4.6K EF
  • Turret Dust Cap
  • Side Handle with LANC Cable and strap
  • Power supply
  • SD card with software and manual
  • DaVinci Resolve Studio USB dongle
  • Software Included:
    • DaVinci Resolve Studio grading software including Resolve USB dongle for Mac OS X and Windows
    • Blackmagic Media Express software
    • Blackmagic Disk Speed Test
    • Blackmagic Camera Setup

Blackmagic Design CINEURSAM46K/PL Features:

  • Highly customizable
  • Cinematic 4.6K sensor
  • HIgh frame rate recording
  • Stunnig ultra HD
  • Non-stop Recording
  • High resolutoin viewfinder
  • Touchscreen control
  • Professional connections
  • Advanced 12G-SDI
  • Professional audio
  • Embedded metadata
  • Flexible power

Blackmagic Design CINEURSAM46K/PL Specifications:

  • Camera Features:
    • Sensor Size: 25.34mm x 14.25mm (Super35)
    • Shooting Resolutions:
      • 4608 x 2592
      • 4096 x 2304 (4K 16:9)
      • 4608 x 1920 (4K 2.4:1)
      • 4096 x 2160 (4K DCI)
      • 3840 x 2160 (Ultra HD)
      • 3072 x 2560 (3K Anamorphic)\
      • 2048 x 1152 (2K 16:9)
      • 2048x1080 (2K DCI)
      • 1920 x 1080
    • Frame Rates: Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported
    • Dynamic Range: 15 stops
    • Focus: Focus button turns on peaking, auto focus available using compatible lenses
    • Iris Control: Iris button automatically adjusts the lens iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode
    • Lens Mount: EF Mount
    • Screen Dimensions: 5” - 1920 x 1080
    • Screen Type: LCD capacitive touchscreen
    • Metadata Support: Automatic camera data and user data such as shot number, filenames and keywords
    • Controls: Touchscreen menus on 5” screen. Push buttons for other controls. 2 assignable shortcut keys
    • Microphone: 2 x built in cardioid microphones for stereo recording with -15dB pad and low cut filter
    • Speaker: 1 x mono speaker, enabled in playback mode when headphones are not used
  • Storage Features:
    • Storage Rates:
      • 4608 x 2592
      • CinemaDNG RAW - 513MB/s
      • CinemaDNG RAW 3:1 - 180 MB/s
      • CinemaDNG RAW 4:1 - 135 MB/s
      • 3840 x 2160
      • Apple ProRes 444 XQ - 250 MB/s
      • Apple ProRes 444 - 165 MB/s
      • Apple ProRes 422 HQ - 110 MB/s
      • Apple ProRes 422 - 73.6 MB/s
      • Apple ProRes 422 LT - 51 MB/s
      • Apple ProRes Proxy - 22.4 MB/s
      • 1920 x 1080
      • Apple ProRes 444 XQ - 62.5 MB/s
      • Apple ProRes 444 - 41.25 MB/s
      • Apple ProRes 422 HQ - 27.5 MB/s
      • Apple ProRes 422 - 18.4 MB/s
      • Apple ProRes 422 LT - 12.75 MB/s
      • Apple ProRes Proxy - 5.6 MB/s
      • Storage rates based on 30 frames per second.
    • Storage Type: 2 x CFast 2.0
  • Connections:
    • SDI Video Output:
      • 1 x 12G-SDI BNC 10-bit 4:2:2
      • 1 x 3G-SDI BNC 10-bit 4:2:2
    • SDI Video Input: 1 x 12G-SDI BNC 10-bit 4:2:2
    • Ref/ Timecode Input: 1 x BNC reference or timecode input with automatic detection
    • Analog Audio Input: 2 x XLR analog switchable between mic and line levels. Phantom power support
    • SDI Audio Output: 2 channel
    • Headphones: 3.5mm stereo headphone jack
    • Remote Control: 2 x 2.5mm LANC input for Rec Start/Stop, plus Iris and Focus control using compatible lenses
    • Computer Interface: USB 2.0 Mini-B port for software updates
  • Standards:
    • SDI Compliance: SMPTE 292M, SMPTE 424 Level B, Draft SMPTE 2081-1, Draft SMPTE 2082-1
    • SDI Audio Sampling: 48 kHz and 24 bit
  • Operating Systems:
    • Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan or later
    • Windows 8.1 or Windows 10
  • Power Requirements:
    • External Power Input:
      • 1 x 4-pin XLR port for external power or battery use
      • 1 x 12-pin molex connector on rear battery plate
      • Custom V-mount battery plate with D-tap +12V regulated output from camera
    • External Power Output:
      • 1 x 12V output using 4-pin XLR for powering external accessories such as EVF
      • 1 x 12V regulated output from rear molex 12-way connector
    • Power: Rear camera mount compatible with industry standard V-mount or Gold Mount battery plates
  • Physical Specifications:

  • Environmental Specifications:
    • Operating Temperature: 32° to 104° F (0° to 40° C)
    • Storage Temperature: -4° to 113° F (-20° to 45° C)
    • Relative Humidity: 0% to 90% non-condensing
  • Product Warranty: 12 Month Limited Manufacturer's Warranty
