Blackmagic Design URSA Mini 4K Camera EF Mount with Super-35mm CMOS Sensor

OUR PART #: BMD-CINEURSAM40K/EF MFR #: BMD-CINEURSAM40K/EF

Copied to clipboard

The Blackmagic Design BMD-CINEURSAM40K/EF URSA Mini 4K EF features incredible 4.6K Super 35 image sensor with a massive 15 stops of dynamic range. ...Read more

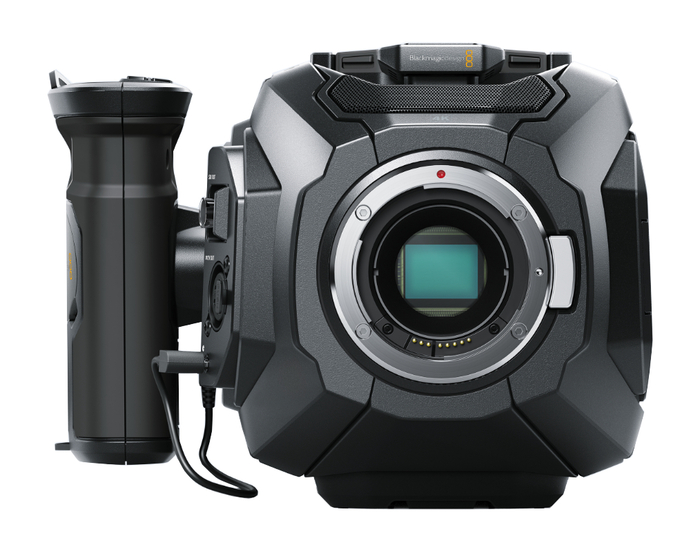

Blackmagic Design URSA Mini 4K Camera EF Mount With Super-35mm CMOS Sensor Image 1
Blackmagic Design URSA Mini 4K Camera EF Mount With Super-35mm CMOS Sensor Image 2
Blackmagic Design URSA Mini 4K Camera EF Mount With Super-35mm CMOS Sensor
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Blackmagic Design BMD-CINEURSAM40K/EF URSA Mini 4K EF features incredible 4.6K Super 35 image sensor with a massive 15 stops of dynamic range. The super compact and lightweight design is perfectly balanced for handheld use and comfortable enough for all day shooting. That means you get a handheld camera with higher resolution and better dynamic range than most Super 35mm film. URSA Mini shoots up to 60 frames per second, has a super bright 5" foldout viewfinder, dual RAW and ProRes recorders and more.

NOTE: Blackmagic does not include IEC cables on this product. We recommend also buying a C2G 03133, a 6’ IEC universal power cable.

Includes

  • (1) Blackmagic URSA Mini 4K EF
  • (1) Turret dust cap
  • (1) Power supply
  • (1) SD card with software and manual
  • (1) DaVinci Resolve Studio USB dongle

Features

  • Revolutionary URSA design and advanced URSA Mini software
  • Cinematic 4.6K sensor and High frame rate recording
  • Flexible power and customization options with other Blackmagic Design MINI URSA family products
  • Stunning ultra HD
  • Advanced 12G-SDI

Specifications

  • Sensor Size: 25.34mm x 14.25mm (Super35)
  • Dynamic Range: 15 stops
  • Shooting Resolutions: 4608 x 2592; 4096 x 2304 (4K 16:9); 4608 x 1920 (4K 2.4:1); 4096 x 2160 (4K DCI); 3840 x 2160 (Ultra HD); 3072 x 2560 (3K Anamorphic); 2048 x 1152 (2K 16:9); 2048x1080 (2K DCI); 1920 x 1080
  • Lens Mount: EF Mount
  • Screen Dimensions: 5” - 1920 x 1080
  • Screen Type: LCD capacitive touchscreen
  • Microphone: 2 x built in cardioid microphones for stereo recording with -15dB pad and low cut filter
  • Speaker: 1 x mono speaker, enabled in playback mode when headphones are not used
  • Connections:
    • SDI Video Output:
      • 1 x 12G-SDI BNC 10-bit 4:2:2
      • 1 x 3G-SDI BNC 10-bit 4:2:2
    • SDI Video Input: 1 x 12G-SDI BNC 10-bit 4:2:2
    • SDI Video Input: 1 x 12G-SDI BNC 10-bit 4:2:2
    • Ref/ Timecode Input: 1 x BNC reference or timecode input with automatic detection
    • Analog Audio Input: 2 x XLR analog switchable between mic and line levels. Phantom power support.
    • SDI Audio Output: 2 channel
    • Headphones: 3.5mm stereo headphone jack
    • Remote Control: 2 x 2.5mm LANC input for Rec Start/Stop, plus Iris and Focus control using compatible lenses
    • Computer Interface: USB 2.0 Mini-B port for software updates

Note

Additional specifications can be found in the Documentation tab.
