4.5" Two-Way Pendant-Mount Loudspeaker


Selected Model Price: $220.00
Write the first review.
Select a Model: (shipping times are approximate)

Related Products

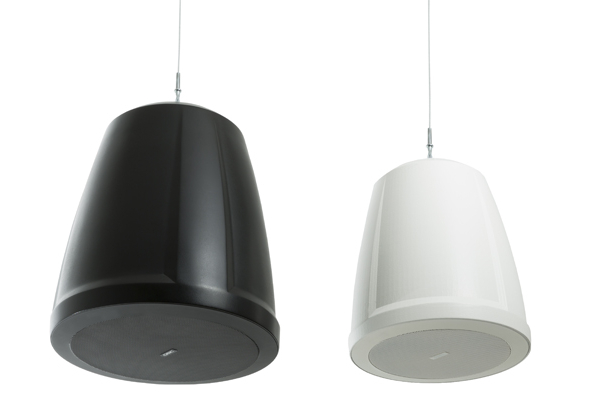

The QSC AcousticDesign™ AD-P4T is a 4.5" two-way pendant-mount loudspeaker ideally suited for a wide variety of foreground and background sound reinforcement applications which utilize 70/100V or 16 Ohm bypass configurations.

QSC AD-P4T Features:

  • Consistent tonal characteristics across the entire AcousticDesign family in surface, ceiling, and pendant applications
  • DMT (Directivity Matched Transition™) waveguide ensures smooth, uniform frequency response over the coverage area
    Snap-fit magnetic grille
  • 2x quick-link suspension cables and slip-lock fasteners provided
  • Intrinsic Correction™ voicings available via Q-SYS Q-SYS Platform and CXD amplifiers
  • Low-saturation and low-loss 70/100V transformers with 16 Ohm bypass
  • Blemish-free removable logo
  • Sealable input cover to prevent moisture from entering the input terminal block
  • Available in black (RAL 9011) or white (RAL 9010)
  • Complete EASE, CF2, CAD, & BIM information available online

QSC AD-P4T Specifications:

  • Effective frequency range: 65 Hz – 20 kHz
  • Rated noise power / voltage: 30 watts / 22 volts(rms)
  • Rated coverage (-6 dB): 150° conical DMT™
  • Directivity factor: 4.5
  • Directivity index [dB]: 6.5
  • Maximum continuous SPL: 102
  • Maximum peak SPL: 108
  • Nominal impedance [ohms]: 16
  • Recommended amplifier: 60 Watts
  • LF transducer: 114 mm [4.5 in] weather treated papercone woofer
  • HF transducer: 19 mm [0.75" in] aluminum dome tweeter
  • Input connector type: Euroblock connector withparallel output
  • Enclosure material: Impact Resistant ABS
  • Grille material: Powder coated steel
  • Ingress protection: IP-34
  • Operating environment: Designed for indoor use
  • Operating temperature range: -20 to 50° C [-4 to 122°F]
  • Net weight: 2.9 kg [6.5 lb]
  • Product dimensions (Diameter x Height): 237 x 272 mm[9.3 x 10.7 in.]
  • Shipping weight: 3.9 kg [8.7 lb]
  • Shipping dimensions (H x W x D): 298 x 362 x 286 mm[11.75 x 14.25 x 11.25 in]
  • Included mounting hardware: Two quick-link cable assemblies (length 3.25m/ 128 in 2mm thickness), two slip-lock fasteners, locking euro-blockconnector, sealable input cover and screws, snap-fit magnetic grille.
