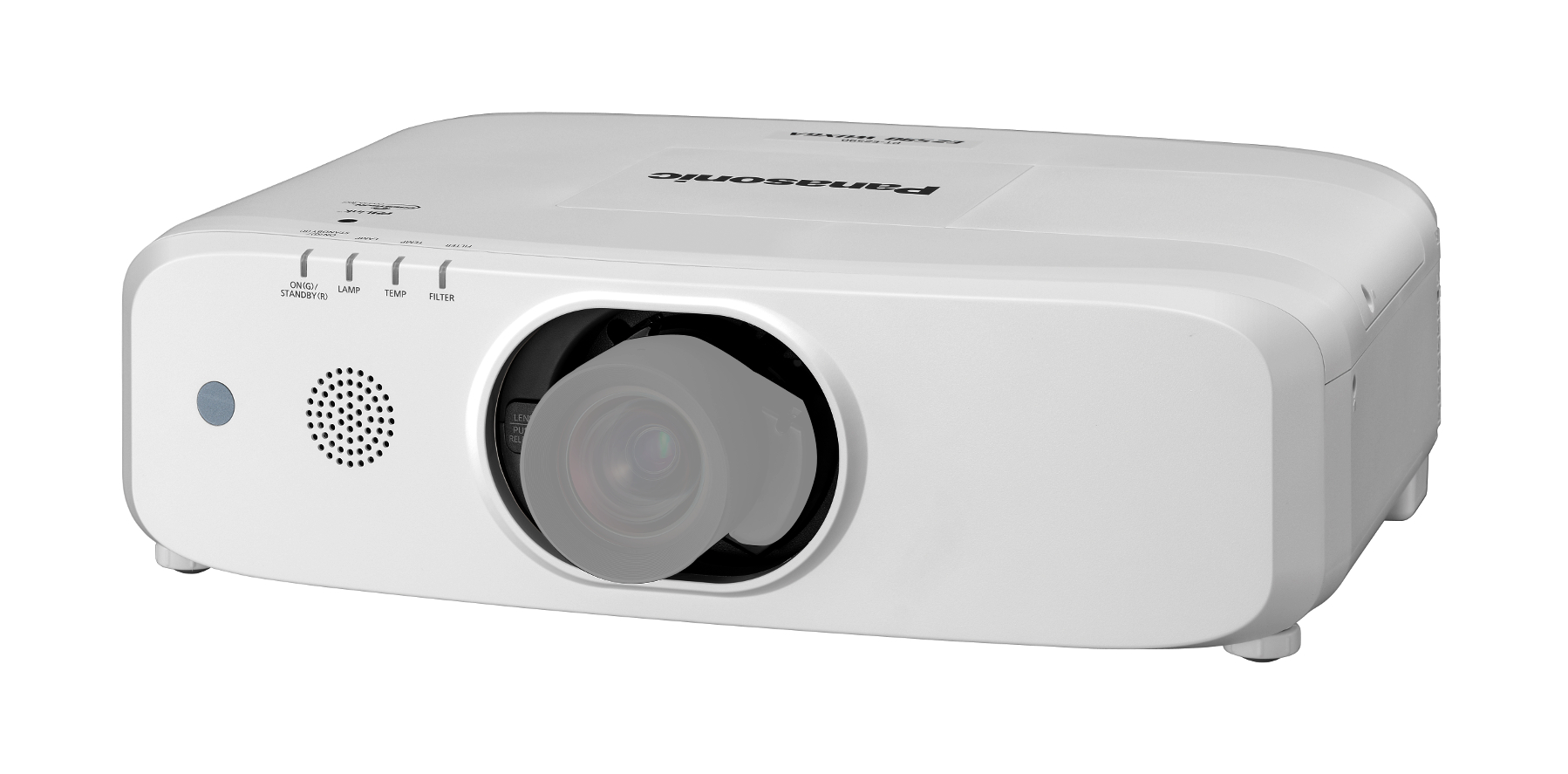

Panasonic PT-EZ590L
5400 Lumens WUXGA LED Projector Body

OUR PART #  PTEZ590LU

Our Price: $3,799.00
List Price: $6,999.00
You save 46%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

Panasonic's versatile PT-EZ590 serves up immersive pictures in nearly any situation, offering plug-and-play operation. Thanks to its dust-resistant construction, as well as long-life UHM lamp, it's engineered for trouble-free operation with very low maintenance, saving you time and money. With brightness of up to 5,400 lumens, the PT-EZ590 can produces vivid images even in high levels of artificial light. Text is clear and legible, while graphics and video are projected with natural vibrancy.

PT-EZ590L comes with a DIGITAL LINK* connection that supports transmission of Full HD video, audio, and control signals, all via a single CAT 5e or higher STP cable for distances of up to 492 ft (150m)**. An optional DIGITAL LINK Switcher or Digital Interface Box (both sold separately) allows source devices to be connected, and signals routed to the projector through one cable, simplifying the AV system, and delivering cost savings on installation.

*Note: DIGITAL LINK is based on the HDBaseT™ communication standard developed by the HDBaseT Alliance with unique Panasonic functions added. This means peripheral HDBaseT™-compatible devices manufactured by other brands can be connected together with Panasonic products such as the ET-YFB200G for easy system control over the network.
**Note: With the supplied lens. Value differs when the correction for both directions is operated.

Dynamic Contrast of 10,000:1 with Iris
A high dynamic contrast of 10,000:1 is enabled by an iris mechanism, delivering whites that are brighter and blacks that are deeper with minimal loss of detail in dark images, resulting in crisp and comfortable viewing.

High WUXGA Resolution for Lush Detail
Delivering up to WUXGA (1,920 x 1,200) resolution, the PT-EZ590 can display Full HD video. The added detail and depth engages viewers, and delivers a more compelling presentation.

Daylight View Basic Ensures Vivid Images in Bright Rooms
Panasonic's original Daylight View Basic employs an onboard sensor to measure ambient light and then calibrates the image-projection to suit, optimizing brightness and halftone color, and sharpening details for easy-to-see images, even in well-lit situations.

DICOM Simulation Mode* for Medical Presentations
Similar to the DICOM Part 14 medical imaging standard, this imaging mode lends a film-like quality to X-ray images, making the PT-EZ590 suitable for training presentations related to medicine*.
*Note: This product is not a medical instrument. Do not use for actual medical diagnosis.

Color Adjustment for Multi-screen Projection
This function corrects subtle variations in the color reproduction range of individual units set up for multi-screen projection, particularly in side-by-side configuration.

Applications:

  • Classrooms
  • Lecture theaters
  • Meeting/conference rooms

Panasonic PT-EZ590 Includes:

  • PT-EZ590 unit
  • Power cord with power cord holder
  • Wireless remote control unit, batteries for remote control (R03/LR03/AAA type)
  • Software CD-ROM (includes Logo Transfer Software, Multi Monitoring and Control Software)
  • Lens cap

Panasonic PT-EZ590 Features:

  • Extended Lamp Replacement Cycle
  • Dust-Resistant Cabinet and Extra-Long-Life Eco Filter
  • ECO Management Slashes Power Consumption
  • Quiet Operation in ECO Mode
  • Easy-Access Lamp and Filter
  • Power-saving Eco Standby Mode draws just 0.3W*
    *Note: When the Standby Mode is set to ECO, network functions such as Power On via LAN will not operate. Also, only certain commands can be received for external control using the serial terminal.
  • Direct Power Off enables safe projector shutdown via breaker switch
  • Anti-theft measures include security bar, password protection, and personalized startup logo
  • Supports free Multi Monitoring & Control Software
  • Onboard 10W speaker
  • Closed Captioning (NTSC, 480i YCBCR)
  • Schedule Function
  • Optional Wireless projection available*
    *Note: Wireless Module ET-WML100 is required (sold separately).

Panasonic PT-EZ590 Specfications:

  • Power supply: 100-240 V AC, 50/60 Hz
  • Power consumption : 484 W, (444 W with LAMP POWER set to NORMAL, 325 W with LAMP POWER set to ECO), (0.5 W when STANDBY MODE set to ECO*, 12 W when STANDBY MODE set to NORMAL)
    *Note: When Standby Mode is set to Eco, network functions such as power on over LAN will not operate. Also, only certain commands can be received for external control using the serial terminal.
  • LCD panel:
    • Panel size: 0.64" (16.3mm) diagonal (16:10 aspect ratio)
    • Display method: Transparent LCD panel (x 3, R/G/B)
      Drive method: Active matrix
    • Pixels:  2,304,000 (1,920 x 1,200) x 3, total of 6,912,000 pixels
  • Lens: EW6 Optional powered zoom/focus lenses and fixed-focus lens (all sold separately)
  • Lamp: 320 W UHM lamp x 1, lamp replacement cycle (lamp power: NORMAL/ECO): 4,000 hours/5,000 hours*
    *Note: This is the maximum value when the lamp is turned on for 2 hours and off for 0.25 hours. If the lamp is turned on more frequently or kept on for a long time, lamp replacement cycle will be reduced. Usage environment affects the duration of the lamp.
  • Screen size (diagonal): 1.03-10.57 m (40-400 in), 16:10 aspect ratio
  • Brightness*: 5,400 Lumens (lamp power: NORMAL, Dynamic Mode, Iris: OFF, Daylight View: OFF, Auto Power Save: OFF)
    *Note: Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
  • Center-to-corner uniformity*: 90 %
    *Note: Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
  • Contrast*: 10,000:1 (lamp power: NORMAL, Dynamic Mode, Iris: ON, Daylight View: OFF, Auto Power Save: OFF)
    *Note: Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
  • Resolution: 1,920 x 1,200 pixels
  • Scanning frequency:
    • HDMI/DIGITAL LINK: fH: 15-90 kHz, fV: 24-100 Hz, Dot clock: 25-162 MHz, compatible with HDCP
    • RGB: fH: 15-90 kHz, fV: 24-100 Hz, Dot clock: up to 162 MHz
    • YPBPR (YCBCR):
      • fH: 15.73 kHz, fV: 59.94 Hz [480i (525i)]
      • fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
      • fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
      • fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
      • fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p]
      • fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF]
      • fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p]
      • fH: 31.47 kHz, fV: 59.94 Hz [480p (525p)]
      • fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
      • fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
      • fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
      • fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p]
      • fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p]
      • fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p]
    • Video/YC:
      • fH: 15.73 kHz, fV: 59.94 Hz [NTSC/NTSC4.43/PAL-M/PAL60],
      • fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
  • Optical axis shift:
    • Vertical: ±60 % from center of screen (powered)
    • Horizontal: ±30 % from center of screen (powered)
  • Keystone correction range*:
    • Vertical: ±25°
    • Horizontal: ±30°
      *Note: With the supplied lens. Value differs when the correction for both directions is operated.
  • Installation: Ceiling/floor, front/rear
  • Onboard speaker:
    • 4.0cm round shape x 1
    • Output power 10.0W (monaural)
  • Terminals:
    • HDMI IN: HDMI 19-pin x 2 (Deep Color, compatible with HDCP), audio signal: Linear PCM (Sampling frequency: 48 kHz/44.1 kHz/32 kHz)
    • RGB 1 IN: BNC x 5 (RGB or YPBPR/YCBCR x 1) shared with VIDEO IN (S-video/composite video)
    • RGB 2 IN: D-Sub HD 15-pin (female) x 1
    • VIDEO IN: Pin jack x 1 (composite video)
    • MONITOR OUT: D-sub HD 15-pin (female) x 1 (RGB x 1) (compatible with RGB or YPBPR/YCBCR)
    • AUDIO IN: Pin jack x 2 (L/R x 1), M3 x 2 (L-R x 2)
    • AUDIO OUT: M3 x 1 (L-R x 1) for output (variable)
    • SERIAL IN: D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
    • REMOTE 1 IN: D-sub 9-pin (female) x 1 for external control (parallel)
    • REMOTE 2 IN: M3 x 1 for wired remote control
    • LAN:RJ45 x 1 (for network connection, 10Base-T, 100Base-TX, compliant with PJLink™)
    • DIGITAL LINK / LAN:
      • RJ-45 x 1 (for network and DIGITAL LINK (video/audio/network/serial control) connection, 100Base-TX, compliant with PJLink™, HDCP compatible, Deep Color compatible)
      • USB-A:  USB terminal for optional Wireless Module (ET-WML100) x 1, DC output terminal for power supply (DC 5 V, up to 900 mA) x 1
  • Operation noise*: 35 dB (lamp power: NORMAL), 29 dB (lamp power: ECO)
    *Note: Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
  • Filter: x 1, recommended replacement cycle: 15,000 hours*
    *Note: Usage environment affects the duration of the filter.
  • Mechanical shutter: Yes
  • Cabinet materials: Molded plastic (PC + ABS)
  • Dimensions: 19-19/32" W x 5-23/32" H* x 14-3/32" D (498 x 145* x 358mm) (without lens)
    *Note: With legs at shortest position.
  • Weight: Approximately 17.0 lbs (7.7kg) (without lens)
  • Operating environment:
    • Operating temperature: 0-45 °C (32-113 °F)*
    • Operating humidity: 20-80 % (no condensation)
      *Note: At altitudes below 4.593ft (1,400m) above sea level. Operating temperature range is 32 °F to 104 °F (0 °C to 40 °C) when used at altitudes from 4,593ft to 8,858ft (1,400m to 2,700m) above sea level. Also, if ambient temperature exceeds 104 °F (40 °C) (95 °F [35 °C] at high altitude), lamp power automatically switches to Eco to in order to protect the projector.

Note: Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice.
