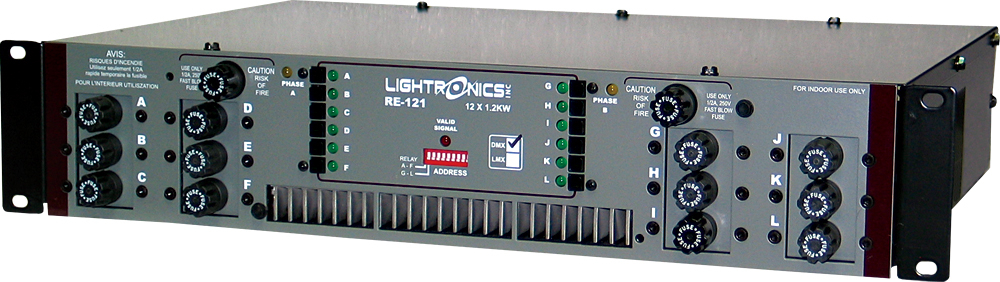

Lightronics RE121D-DP 12-Channel Rack Mount Dimmer with DMX, Edison Duplex Outlet Panel and Circuit Breakers

The Lightronics RE121D-DP is a 12 channel rack mount dimmer with a capacity of 1,200 watts per channel giving a total of 14,400 watts. It is suitable for church, stage, theater, school, night club, live performances and other event and artistic applications.

The RE121D-DP is controlled by a lighting control console. The unit uses the DMX-512 control protocol. Channels A - F and/or channels G - L may be switched to operate in "relay" mode. In relay mode, channels may be switched only to either to full on or full off depending on fader position.

Lightronics RE121D-DP Specifications:

• 12 Channels
• 1200W per Channel
• 10 Amp Fast Acting Fuses
• Dim/Relay Mode per 6 Channel groups
• 120/240V 60 Amp
• DMX-512 Protocol
• UL-508 Compliant
• Optional Circuit Breakers
