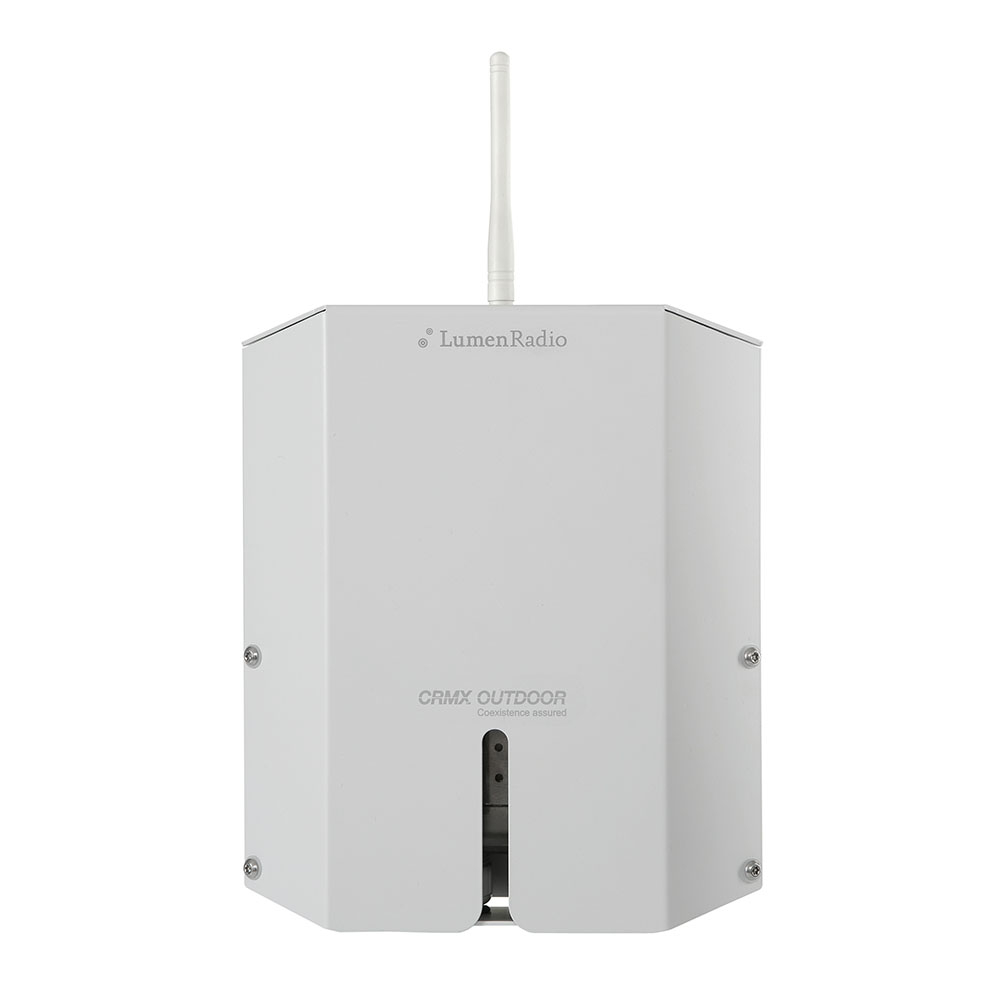

LumenRadio CRMX Outdoor RX IP67 Rated Wireless DMX Receiver with RDM, One Universe

The LumenRadio CRMX Outdoor RX, part of their CRMX Outdoor™ series, is an IP67-rated receiver for one full DMX/RDM universe of up to 512 channels being transmitted by a CRMX transmitter.

The CRMX Outdoor RX features compatibility with DALI and DSI, making it a part of the first product range for wireless DALI/DSI truly designed to operate in any environment. The onboard DMX to DALI/DSI converter can be easily configured over RDM.

You can also use the CRMX Outdoor RX in concert with a CRMX Outdoor Flex, CRMX Nova TX, CRMX Nova TX2, CRMX Nova TX2 RDM or any other CRMX transmitter.

LumenRadio's CRMX Outdoor RX is designed to utilize the international license-free ISM band (2.4GHz).

CRMX Outdoor Series

The CRMX Outdoor series is an adaptation of LumenRadio's CRMX Nova product line that's made for outdoor use while employing the same advanced CRMX technology and features for wireless DMX and RDM distribution. With a discreet and secure metal housing as well as integrated shock absorption, the CRMX Outdoor line is engineered to withstand any outdoor environment for many years. All LumenRadio CRMX Outdoor products are IP67 rated, so they're not only safe to install in humid environments, but can even withstand temporary submersion. DMX and Power inputs are made using cable glands at the bottom of the main enclosure. To fit in with older wireless systems using legacy equipment, CRMX Outdoor Receiver is compatible with W-DMX™ transmitters. However when you use it this way, you won't get the benefits of advanced CRMX technology.

LumenRadio CRMX Outdoor RX Key Features:

• Single Universe Receiver
• DMX512-A and RDM support
• Compatible with W-DMX™ transmitters
• Up to 1000 meter link range
• Connects to SuperNova
• 5ms latency
• 128-bit encryption of wireless link
• Automated Cognitive Coexistence
• Forward Error Correction
• IP67 classification
• N-type antenna connector
• Vandal-proof casing

LumenRadio CRMX Outdoor RX Specifications:

• Manufacturer #: LRONRRX1CRMX
• Manufacturer Product Name: ON-RRX1
• Supported protocols:
  • USITT DMX512, DMX512(1990) & DMX512-A
  • RDM ANSI E1.20
  • DALI (64 short addresses, 16 groups or broadcast)
  • DSI
  • Streaming ACN (Draft and Final)
  • ArtNet I, II, and 3
  • Pathport
  • Strand ShowNet
  • ETCNet 2 & 3
• Power:
  • High voltage input: 85-264VAC / 47-70Hz / 3W
  • Overvoltage and ESD protected power input
  • PoE. Power over Ethernet
• Physical:
  • Enclosure: IP67 vandal-proof housing
  • Dimensions: 7.9" W x 9.6" H x 3.1" D (201 x 244 x 78mm)
  • Weight: 3.5 lbs (1.6 kg)
• RF characteristics:
  • Operational frequency range: 2402-2480 MHz
  • Output power levels: 300mW (25dBm) (only allowed in North America), 100mW (20dBm), 50mW (17dBm), 10mW (10dBm)
  • Tested link range: 500m in urban area using 100mW output power mode
• Connectors:
  • DMX: Pluggable terminal strip, Phoenix® MSTB 2,5
  • Antenna: N female
  • AC: 13AWG Pluggable terminal strip
  • Ethernet: standard RJ45
