LumenRadio OE-WDFP
CRMX DMX Receiver, W-DMX Footprint

OUR PART #:  LROEWDFP

The OE-WDFP from LumenRadio, part of LumenRadio's CRMX OEM DMX PCB series, the OEM versions of their CRMX Nova DMX products.
Learn More
Our Price: $276.36
List Price: $282.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

LumenRadio OE-WDFP
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

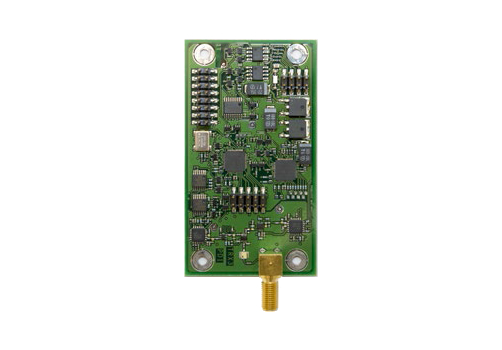

The OE-WDFP from LumenRadio, part of LumenRadio's CRMX OEM DMX PCB series, the OEM versions of their CRMX Nova DMX products. It provides support for one full DMX universe of up to 512 channels at maximum refresh rate. This particular version is the DMX Receiver model in the W-DMX™ form factor.

It's based upon LumenRadio's advanced CRMX technology, and comes equipped with advanced features like low latency, automated cognitive coexistence, DMX fidelity, strong encryption, and more, all together included on one small PCB.

When used with older wireless systems that may include legacy equipment, the OE-WDFP offers W-DMX™ transmitter compatibility, though if you use it in this fashion, you won't get the benefits of the advanced CRMX technology.

You should be able to easily integrate the OE-WDFP into your system, but if you run into problems, LumenRadio's engineers can provide the support you may need.

Additionally, the OE-WDFP utilizes the international license-free ISM band (2.4GHz).

LumenRadio OE-WDFP Key Features:

  • Support for DMX512-A
  • Compatible with W-DMX™ transmitters
  • Up to 1000 meter link range
  • 5ms latency
  • 128-bit encryption of wireless link
  • Automated Cognitive Coexistence
  • Forward Error Correction
  • MCX antenna connector

LumenRadio OE-WDFP Specifications:

  • Manufacturer #: LROEWDFP
  • Series: CRMX OEM DMX PCB
  • Supported protocols: USITT DMX512, DMX512(1990) & DMX512-A
  • Power:
    • Low voltage input: 6-12VDC (unregulated) or 5VDC (regulated)
    • Current consumption: 130mA (RX), 250mA (TX)
  • Physical:
    • Dimensions (excluding antenna): 1.8" W x 0.47" H x 3.2" D (46 x 12 x 82mm)
    • Weight: 0.02 oz (10 g)
  • RF characteristics:
    • Operational frequency range: 2402-2480 MHz
    • Output power levels: 300mW (25dBm) (only allowed in North America), 100mW (20dBm), 50mW (17dBm), 10mW (10dBm)
    • Tested link range: 500m in urban area using 100mW output power mode
  • Connectors:
    • Standard 0.1" x 0.1" (2.54 x 2.54mm) 2× 10-position interface connector
    • MCX-type antenna connector
