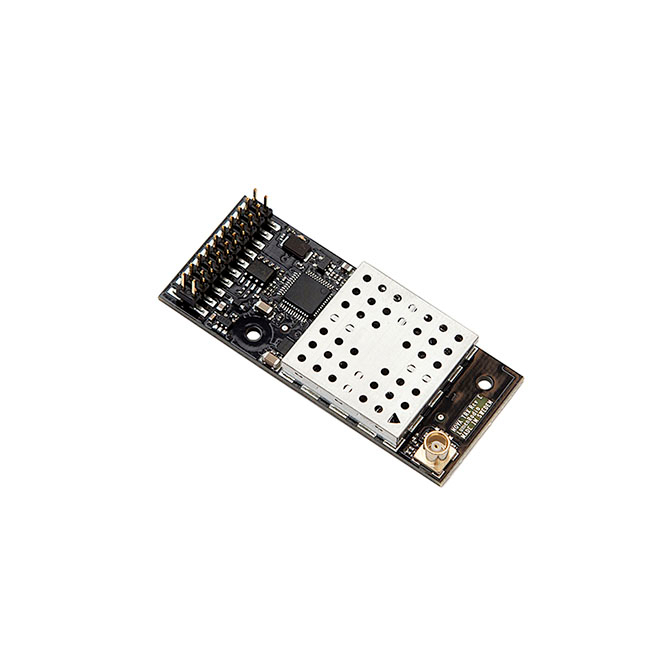

LumenRadio OE-GTX1
CRMX OEM DMX PCB DMX Transmitter

OUR PART #:  LROEGTX1

The LumenRadio OE-GTX1 is part of their CRMX OEM DMX PCB series—the OEM versions of their CRMX Nova DMX products...
Learn More
Our Price: $346.92
List Price: $354.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

LumenRadio OE-GTX1
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The LumenRadio OE-GTX1 is part of their CRMX OEM DMX PCB series—the OEM versions of their CRMX Nova DMX products, offering support for one full DMX universe of up to 512 channels at maximum refresh rate. This is the DMX Transmitter version.

Built upon LumenRadio's advanced CRMX technology, the OE-GTX1 comes with advanced features such as low latency, automated cognitive coexistence, DMX fidelity, strong encryption, and much more, all packed together on one small PCB.

To work with old wireless systems that may include legacy equipment, the OE-GTX1 provides W-DMX™ transmitter support. However, if you use it in this way, you won't get the benefits of the advanced CRMX technology.

The OE-GTX1 is easily integrated into your system, but if you run into problems, LumenRadio's engineers can offer the support you need.

Also, the OE-GTX1 utilizes the international license-free ISM band (2.4GHz).

LumenRadio OE-GTX1 Key Features:

  • Support for DMX512-A
  • Compatible with W-DMX™ transmitters
  • Up to 1000 meter link range
  • 5ms latency
  • 128-bit encryption of wireless link
  • Automated Cognitive Coexistence
  • Forward Error Correction
  • MCX antenna connector

LumenRadio OE-GTX1 Specifications:

  • Manufacturer #: LROEGTX1
  • Series: CRMX OEM DMX PCB
  • Supported protocols: USITT DMX512, DMX512(1990) & DMX512-A
  • Power:
    • Low voltage input: 6-12VDC (unregulated) or 5VDC (regulated)
    • Current consumption: 130mA (RX), 250mA (TX)
  • Physical:
    • Dimensions (excluding antenna): 1.1" W x 0.47" H x 2.6" D (27.5 x 12 x 65mm)
    • Weight: 0.02 oz (10 g)
  • RF characteristics:
    • Operational frequency range: 2402-2480 MHz
    • Output power levels: 300mW (25dBm) (only allowed in North America), 100mW (20dBm), 50mW (17dBm), 10mW (10dBm)
    • Tested link range: 500m in urban area using 100mW output power mode
  • Connectors:
    • Standard 0.1" x 0.1" (2.54 x 2.54mm) 2Ă—10 position interface connector
    • MCX-type antenna connector
