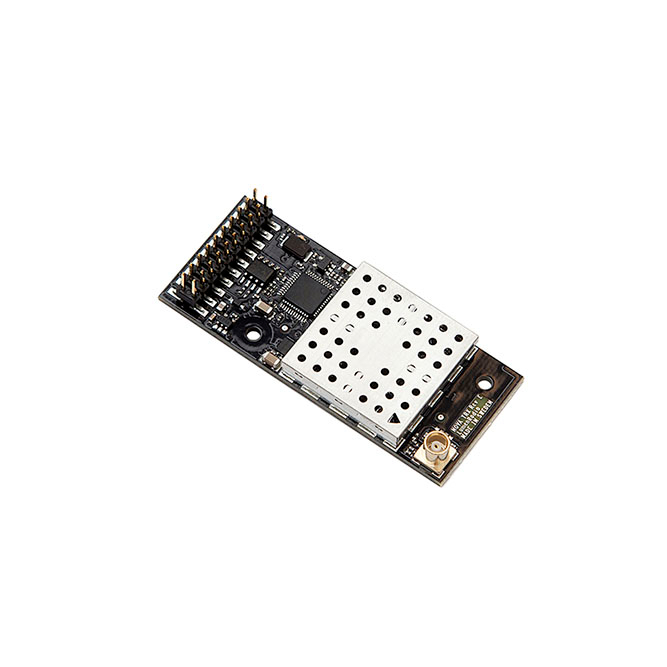

LumenRadio OE-GRX1
CRMX OEM DMX PCB DMX Receiver

OUR PART #:  LROEGRX1

The OE-GRX1 from LumenRadio is part of their CRMX OEM DMX PCB series, which are the OEM versions of their CRMX Nova DMX products.
Learn More
Our Price: $276.36
List Price: $282.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

LumenRadio OE-GRX1
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The OE-GRX1 from LumenRadio is part of their CRMX OEM DMX PCB series, which are the OEM versions of their CRMX Nova DMX products. It offers support for one full DMX universe of up to 512 channels at maximum refresh rate. This particular version is the DMX Receiver model.

Having been built upon LumenRadio's advanced CRMX technology, the OE-GRX1 comes with advanced features such as low latency, automated cognitive coexistence, DMX fidelity, strong encryption, and more, all included together on one small PCB.

When working with older wireless systems that may include legacy equipment, the OE-GRX1 offers W-DMX™ transmitter compatibility, though if you use it in this way, you won't get the benefits of the advanced CRMX technology.

The OE-GRX1 can be easily integrated into your system, but if you run into problems, LumenRadio's engineers can provide the support you may need.

In addition, the OE-GRX1 utilizes the international license-free ISM band (2.4GHz).

LumenRadio OE-GRX1 Key Features:

  • Support for DMX512-A
  • Compatible with W-DMX™ transmitters
  • Up to 1000 meter link range
  • 5ms latency
  • 128-bit encryption of wireless link
  • Automated Cognitive Coexistence
  • Forward Error Correction
  • MCX antenna connector

LumenRadio OE-GRX1 Specifications:

  • Manufacturer #: LROEGRX1
  • Series: CRMX OEM DMX PCB
  • Supported protocols: USITT DMX512, DMX512(1990) & DMX512-A
  • Power:
    • Low voltage input: 6-12VDC (unregulated) or 5VDC (regulated)
    • Current consumption: 130mA (RX), 250mA (TX)
  • Physical:
    • Dimensions (excluding antenna): 1.1" W x 0.47" H x 2.6" D (27.5 x 12 x 65mm)
    • Weight: 0.02 oz (10 g)
  • RF characteristics:
    • Operational frequency range: 2402-2480 MHz
    • Output power levels: 300mW (25dBm) (only allowed in North America), 100mW (20dBm), 50mW (17dBm), 10mW (10dBm)
    • Tested link range: 500m in urban area using 100mW output power mode
  • Connectors:
    • Standard 0.1" x 0.1" (2.54 x 2.54mm) 2× 10-position interface connector
    • MCX-type antenna connector
