LumenRadio CRMX Nova RX RDM Wireless DMX Receiver with RDM, One Universe

OUR PART #: LRINRRX1CRMX MFR #: LRINRRX1CRMX

Copied to clipboard

The LumenRadio CRMX Nova™ RX RDM, is a receiver for one DMX/RDM universe being transmitted from any CRMX transmitter. ...Read more

LumenRadio CRMX Nova RX RDM Wireless DMX Receiver With RDM, One Universe Image 1
LumenRadio CRMX Nova RX RDM Wireless DMX Receiver With RDM, One Universe
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

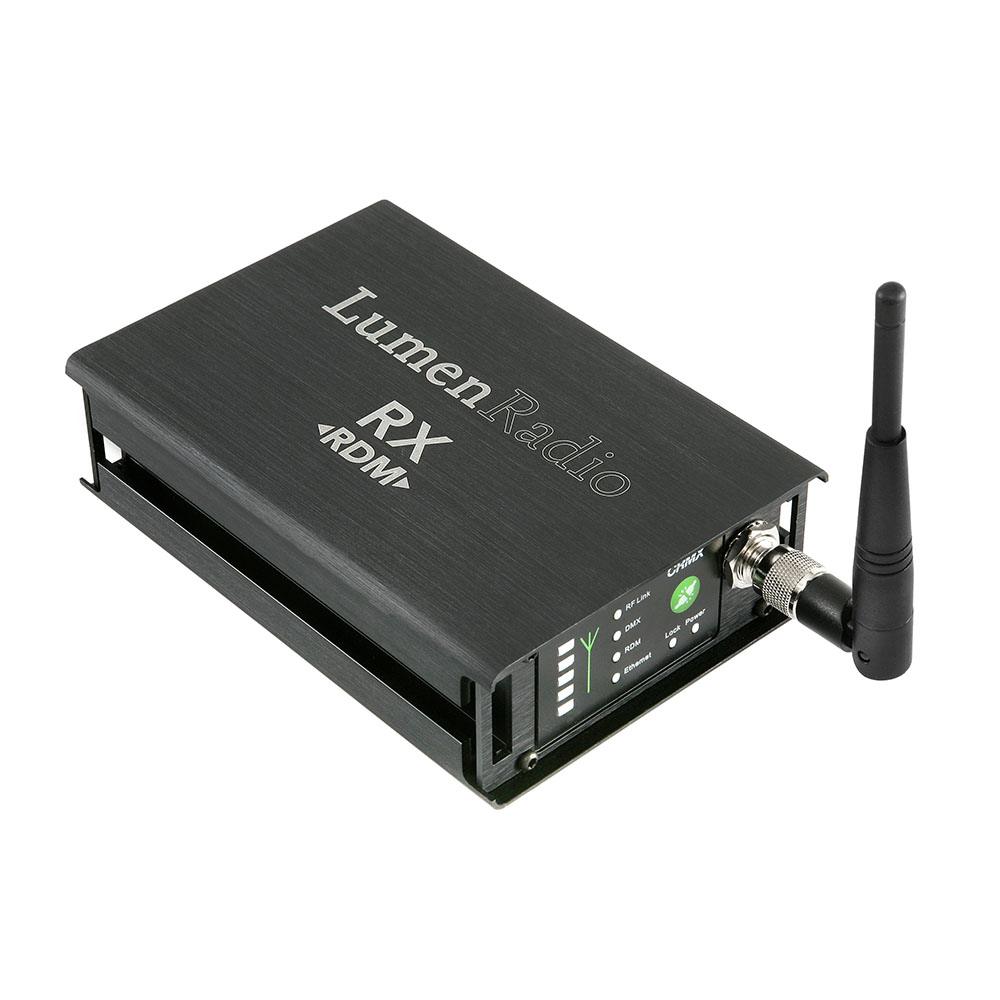

The LumenRadio CRMX Nova™ RX RDM, is a receiver for one DMX/RDM universe being transmitted from any CRMX transmitter. It's compatible with one full DMX/RDM universe of up to 512 channels at maximum refresh rate. Working together with a RDM-compliant CRMX Nova transmitter, the CRMX Nova RX RDM can also support RDM (ANSI E1.20). Use it along with LumenRadio's prized CRMX SuperNova RDM controller and management software to monitor signal strength and adjust settings from a remote location. Connect it to any RDM-enabled fixture, and you'll get wireless feedback from that fixture.

Based on LumenRadio's advanced CRMX technology, the CRMX Nova RX RDM offers all the advanced features you'd want, such as Automated Cognitive Coexistence, lowest industry latency at 5ms, DMX fidelity, 128-bit encryption, plus much more. Additionally, you get the ability to configure and monitor your fixtures over RDM, without having to hassle with a cable. To work with old wireless systems using legacy equipment, the CRMX Nova RX RDM supports W-DMX™ transmitters working on the 2.4 GHz band. Working with it in this way will not let you make use of the benefits of the advanced CRMX technology or RDM.

CRMX Nova RX RDM features compatibility with all other CRMX products, both indoor and outdoor, DMX and RDM.

Also, CRMX Nova RX RDM utilizes the international license-free ISM band on 2.4GHz.

CRMX CRMX Nova RX RDM Key Features:

  • Single Universe Receiver
  • DMX512-A and RDM support
  • Compatible with W-DMX™ transmitters
  • Up to 1000 meter link range
  • Connects to SuperNova
  • 5ms latency
  • 128-bit encryption of wireless link
  • Automated Cognitive Coexistence
  • Forward Error Correction
  • RP-TNC antenna connector

CRMX CRMX Nova RX RDM Specifications:

  • Manufacturer #:
  • Manufacturer Product Name:
  • Supported protocols:
    • USITT DMX512, DMX512(1990) & DMX512-A
    • RDM ANSI E1.20
  • Power:
    • High voltage input: 85-264VAC / 47-70Hz / 10W
    • Low voltage input: 12VDC ±20% / 2.5W
    • Overvoltage and ESD protected power inputs
  • Physical:
    • Dimensions: 4.3" W x 1.7" H x 6.3" D (110 x 44 x 125mm)
    • Weight: 24 oz (700 g)
    • Enclosure: Anodized extruded aluminum
  • RF characteristics:
    • Operational frequency range: 2402-2480 MHz
    • Output power levels: 300mW (25dBm) (only allowed in North America), 100mW (20dBm), 50mW (17dBm), 10mW (10dBm)
    • Tested link range: up to 1000 meters line-of-sight
  • Connectors:
    • DMX: 1 XLR Neutrik® 5-pin gold plated female
    • Antenna: RP-TNC male
    • AC: IEC 320-C14 male
    • DC: Pluggable terminal strip, Phoenix® MSTD 2,5
