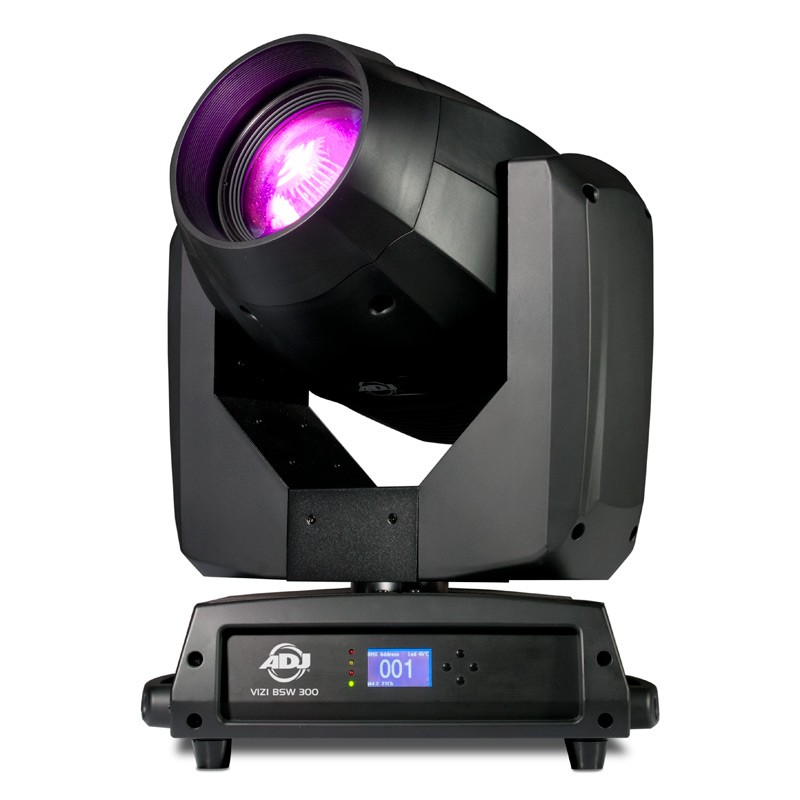

ADJ Vizi BSW 300 300w LED Hybrid Moving Head Beam, Spot, Wash Fixture with Zoom

OUR PART #: VIZI-BSW-300 MFR #: VIZ300

Copied to clipboard

ADJ's Vizi BSW 300, their flagship LED moving head, is a a hybrid beam/spot/wash fixture powered by a specially designed 300W LED engine. ...Read more

ADJ Vizi BSW 300 300w LED Hybrid Moving Head Beam, Spot, Wash Fixture With Zoom Image 1
ADJ Vizi BSW 300 300w LED Hybrid Moving Head Beam, Spot, Wash Fixture With Zoom Image 2
ADJ Vizi BSW 300 300w LED Hybrid Moving Head Beam, Spot, Wash Fixture With Zoom Image 3
8s70PkcsrUU
1 Video
ADJ Vizi BSW 300 300w LED Hybrid Moving Head Beam, Spot, Wash Fixture With Zoom
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Replacement Parts

Product Overview

ADJ's Vizi BSW 300, their flagship LED moving head, is a a hybrid beam/spot/wash fixture powered by a specially designed 300W LED engine. It comes packed with professional features engineered for use in larger venues as well as event productions.

The Vizi BSW 300 is ADJ's most powerful LED Moving Head to date. It employs a specially designed 300W LED engine that offers massive output for most large venues and event productions. It's a great hybrid utility fixture, as it acts as an all in one beam, spot, and wash fixture. And even more, it comes in a smaller footprint than most other movers in its class.

The Vizi BSW 300 has motorized focus, motorized zoom, (2) 6-facet rotating prisms (one linear & one circular), (2) separate color wheels, (2) GOBO wheels (1 wheel fixed metal & one wheel rotating/replaceable GOBOs). Additionally, there's a LCD function display on the front panel, with the rear panel offering powerCON In/Out and 3-pin & 5-pin DMX connections.

ADJ Vizi BSW 300 Features:

  • Hybrid Beam / Spot / Wash Moving Head
  • LED DMX 4-Button menu system
  • Independent gobo and color wheels
  • 16-Bit Pan/Tilt Positioning and Pan/Tilt speed adjustment
  • Motorized Focus and Motorized Zoom
  • Shutter: Pulse effect; random strobe slow to fast
  • Dimming: 0% - 100%
  • Omega Quicklock brackets included

ADJ Vizi BSW 300 Specifications:

  • 1 x 300 White LED engine
  • 2 DMX Channel Modes: 18 & 21 channels
  • Pan: 540°
  • Tilt: 270°
  • Stepper motors with micro stepping
  • 10°-20° beam angle
  • 14 colors + white
  • 2 separate Gobo Wheels:
    • Wheel 1: 6 Static Fixed Gobos + Spot & 3 Variably Sized Beam Aperture Gobos
    • Wheel 2: 7 Rotating Gobos + Spot (6 Colored Glass Gobos and 1 Metal Gobo)
  • 2 separate Color Wheels:
    • Wheel 1: 7 Static Colors plus Open
    • Wheel 2: 7 Static Colors plus Open including:
    • CTO (3200K); CTC (5600K) & UV
  • 6-facet Prism (Circular & Linear)
  • 3-/5-pin XLR In/Out
  • PowerCon In/Out
  • Power Consumption: 345W
  • Multi-voltage Operation: 100-240V, 50Hz/60Hz
  • Dimensions (LxWxH): 14.75" x 12.75" x 21.5" (376 x 325 x 545mm)
  • Weight: 49 lbs. (22 kg)
