ADJ PENTA PIX
5x15W RGBW Beam Effect LED Fixture with Collimator Lens

OUR PART #:  PENTA-PIX

The ADJ Penta Pix is a 5-head beam effect with pixel zone control and features 5x 15 Watt 4-IN-1 RGBW LEDs with ACL lenses that produce crisp, sharp beams for your purposes.
Learn More
ADJ Penta Pix - Beam Example #2 View
ADJ Penta Pix - Beam Example #1 View

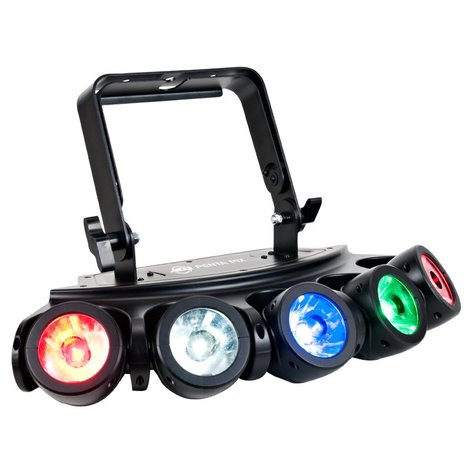

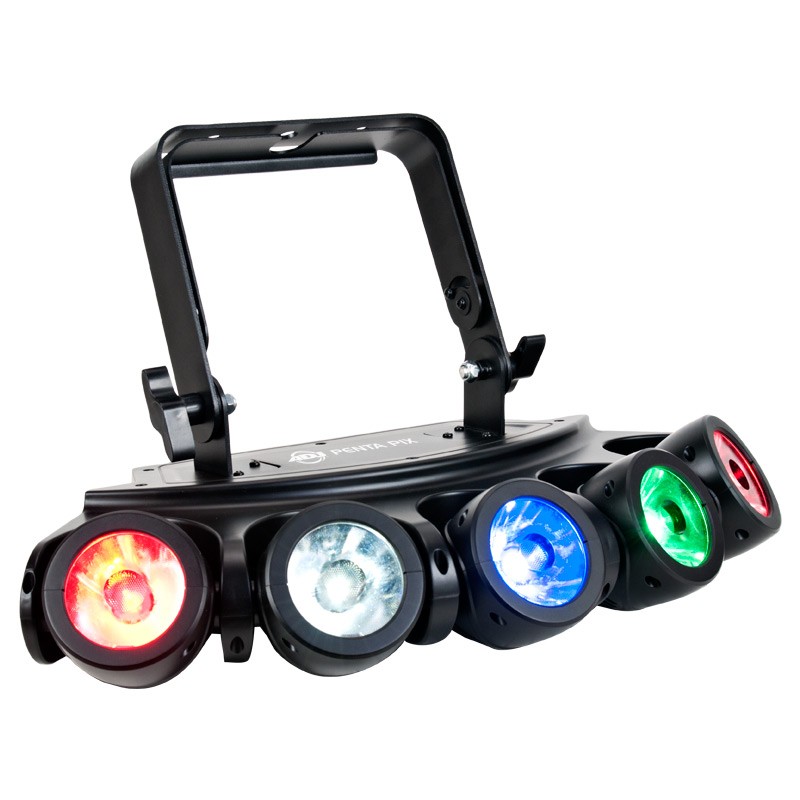

ADJ Penta Pix - Front View

Click a thumbnail to see more images. (5 total)

Our Price: $399.99
List Price: $559.95
You save 29%!
Write the first review.
ADJ PENTA PIX
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

The ADJ Penta Pix is a 5-head beam effect with pixel zone control and features 5x 15 Watt 4-IN-1 RGBW LEDs with ACL lenses that produce crisp, sharp beams for your purposes.

The 5-head beam effect comes with pixel zone control and is designed to produce quick chasing sharp beam effects generated by its ACL lens (Advanced Collimator Optic Lens). Each head can be manually positioned on a X axis. Additional featured highlights of the Penta Pix include (63) color macros, (3) DMX channel modes, (5) selectable dimming curves and (15) onboard lightshows. Additionally, it has a 3-pin DMX In/Out, 4-button DMX menu, 3-pin DMX In/Out, powerCON In/Out, and an included scissor yoke.

ADJ Penta Pix Features:

  • New ACL (Advanced Collimator optic Lens) for razor sharp 6° beams
  • 5-Zone Pixel Control
  • (15) exciting onboard Lightshows with sound active control
  • Runs extremely cool! - NO Duty Cycles! – Run all night!
  • (5) selectable Dimmer Curves
  • Includes scissor yoke + safety hook on rear panel
  • 4-Button DMX LED Display

ADJ Penta Pix Specifications:

  • Manufacturer SKU: PEN613
  • 5x 15-Watt 4-in-1 RGBW Quad LEDs
  • (5) Operational modes: Sound Active, Auto Run, RGBW Dimmer Mode, ColorMacro Mode, & DMX Control
  • (63) Preset Color Macros
  • (3) DMX Channel modes: 4/6/22 DMX channels
  • 3-Pin DMX In/Out connections
  • Strobe speed (Controlled via DMX)
  • 0-100% electronic dimming (Controlled via DMX)
  • Power Consumption: 77W maximum
  • AC Connection: PowerCON IN/OUT; Daisy chain power
  • Multi-voltage operation: AC 100-240V 50/60Hz
  • Dimensions (LxWxH): 21" x 11" x 10.25" (530 x 280 x260mm)
  • Weight: 12 lbs. (5.4 kg.)
