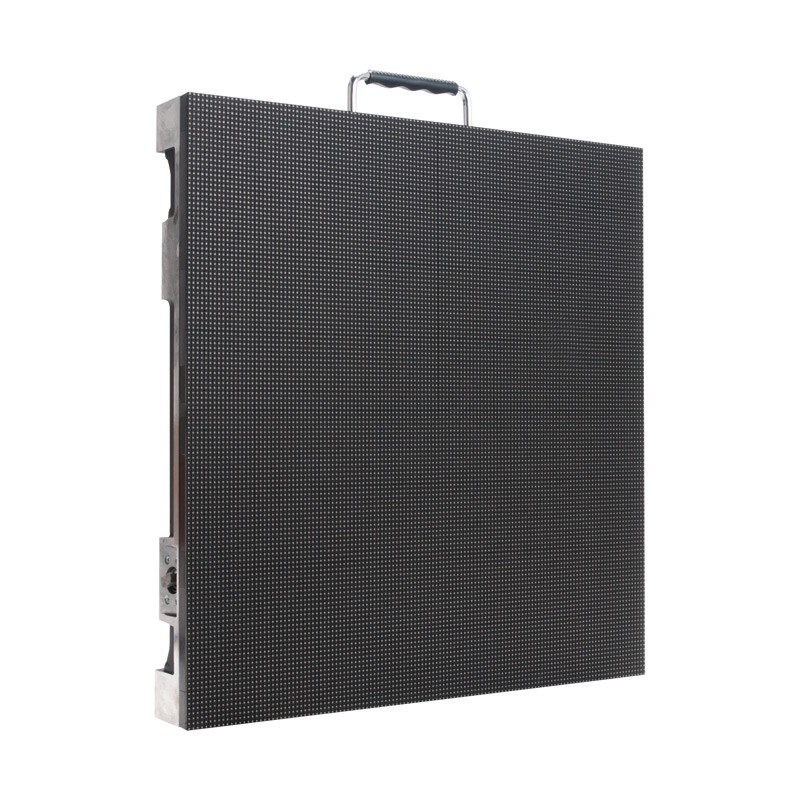

ADJ AV3
3.9mm LED Video Wall Panel, ETL Approved

OUR PART #:  AV3-ADJ

The ADJ AV3 is a single high-resolution video panel featuring a brightness of 1000NITS. Each AV3 has a pixel pitch of 3.91mm with a configuration of a 3-in-1 RGB SMD2121 LED.
Learn More
Our Price: $1,199.95
List Price: $1,799.95
You save 33%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

ADJ AV3
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The ADJ AV3 is a single high-resolution video panel featuring a brightness of 1000NITS. Each AV3 has a pixel pitch of 3.91mm with a configuration of a 3-in-1 RGB SMD2121 LED. Within the master panel are 4 mini modular panels, providing for easy serviceability. Connections on the AV3 include powerCon In/Out and Ethercon In/Out. Each panel also comes equipped with a Novastar receiving card.

ADJ offers full packages (sold separately) that include video processors, software, cabling, rigging bars and flight cases so that you'll have everything you need to get up and running.

ADJ AV3 Specifications:

  • General:
    • Pixel Pitch: 0.25" (3.91mm)
    • LED Configuration: 3-in-1 SMD2121 LED
    • Pixel Density: 128x128; 65536 per square meter
    • Size: 19.75" x 19.75" x 4" (500 x 500 x 100mm)
    • Module Quantity: 4
    • Weight: 20 lbs. (9 kg)
  • Mechanical Ratings:
    • Surface Flatness: Gaps <0.5mm
  • Optical Ratings:
    • Brightness: 1000 NITS
    • View Angle: Horizontal 120°/Vertical 120° @ 13ft (4m)
    • Gray Scale / Display Color: 14-bit
    • Brightness Adjustment: 0~100% 100 Levels
    • Processing: 14-bit
  • Power Supply:
    • Operation Power: 100~240V 50-60Hz
    • Max. Power Consumption: 170W/per panel
    • Avg. Power Consumption: 70W/per panel
    • Connections Power/Data: Power-PowerCon In/Out; Data EtherCon In/Out
  • Control System:
    • Control Mode: Nova Star Synchronous System with Control via DVI
    • Frame Update Frequency: 50-60Hz
    • Scan Mode: 1/16
    • Refresh Rate: 1920Hz
    • Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
    • Control Distance: Ethernet Cable <100m or Fiber Optic >120m
    • Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
    • Brightness Correction: Pixel, Module, Cabinet
  • Environmental:
    • Operating Temp / Humidity: -4° + 104° F (-20° + 40° C)/ 10-90% (No Condensation)
    • Operating Life / MTBF: 50,000 Hours / 5,000 Hours
    • Protection Level: IP20 (Front and Back)
    • Out of Control Rate: <0.02%
    • Listings:  ETL, CE, FCC Class A
