Sony HDVF-EL30
0.7" Full HD OLED Viewfinder with 3.5" Display

OUR PART #  HDVF-EL30

Call for price! Not available online.
List Price: $6,800.00

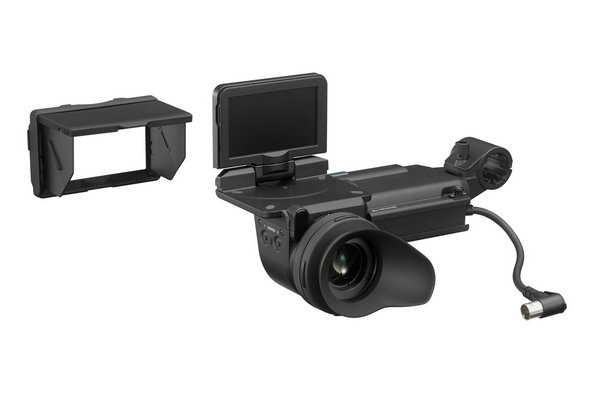

The Sony HDVF-EL30 is a 0.7" (viewable area, measured diagonally) full HD OLED viewfinder, that enables quick pixel response and focusing and tracking on moving objects. It delivers remarkably high contrast and a wide dynamic range, due to the incorporation of revolutionary Organic Light Emitting Diode (OLED) display technology.

It features a specially developed optical loupe, making a high eye-point possible, and allows operators to see a wider area of the picture if they stand back from the eye piece. To avoid vignetting, the viewfinder's displayed image can be downscaled via menu or assignable button.

The HDVF-EL30 also comes equipped with an additional 3.5", quarter HD (960 x 540) sub-LCD display for direct monitoring over a longer distance. Using both sub-LCD panel and OLED displays offers full operational flexibility and enables a camera assistant to monitor the sub-LCD display while the camera operator uses the main OLED one. The sub-LCD panel can display a tally indicator and the camera number. The included foldable hood minimizes sunlight reflection.

The HDVF-EL30 viewfinder works with a wide array of cameras such as the F65 Sony motion picture cameras, 4K/HD system cameras, and shoulder-type HD camcorders supporting the 20-pin round HDVF interface.

Sony HDVF-EL30 Features:

  • 0.7" 1920 x 1080 full HD Organic Light Emitting Diode (OLED) panel
  • High contrast ratio
  • Compatible with F65 digital motion picture cameras, 4K/HD system cameras, and shoulder-type HD camcorders
  • Specially developed optical loupe
  • 3.5", quarter HD (960 x 540) sub-LCD panel
  • Display tally and camera number on sub-LCD
  • Foldable hood for sub-LCD

Sony HDVF-EL30 Specifications:

  • General:
    • Power supply: 10.5 V to 17.0 V DC (supplied by the camera)
    • Power consumption: 7.3 W
    • Operating temperature: (-4°F to +113°F (-20°C to +45°C)
    • Storage temperature: -4°F to +140°F (-20°C to +60°C)
    • Weight: 2 lbs, 0.46 oz (920 g) (not including hood)
    • External dimensions: See "External Dimensions Illustration", above.
  • OLED panel:
    • Type: 0.7-type color OLED panel
    • Display area: 5/8" × 3/8" (15.8 × 9.0mm) (H/V, 16:9 aspect ratio)
    • Diopter range for the loupe: -4.0 to +2.0 m-1
    • Performance:
      • Brightness: 200 cd/m2 (typical)
      • Effective pixels: 1920 (horizontal) × 1080 (vertical) × 3 (RGB)
      • Color temperature: D65
  • LCD panel:
    • Type: 3.5-type color TFT transmissive LCD panel
    • Effective screen size: 3-1/8" × 1-3/4" (77.0 × 43.3mm) (H/V, 16:9 aspect ratio)
    • Performance:
      • Brightness: 300 cd/m2 (typical)
      • Effective pixels: 960 (horizontal) × 540 (vertical) × 3 (RGB)
      • Color temperature: D65
  • Input signals:
    • Y 1.0 Vp-p, synchronous, 75 ohm, terminated
    • Pb, Pr 0.7 Vp-p, asynchronous, 75 ohm, terminated
