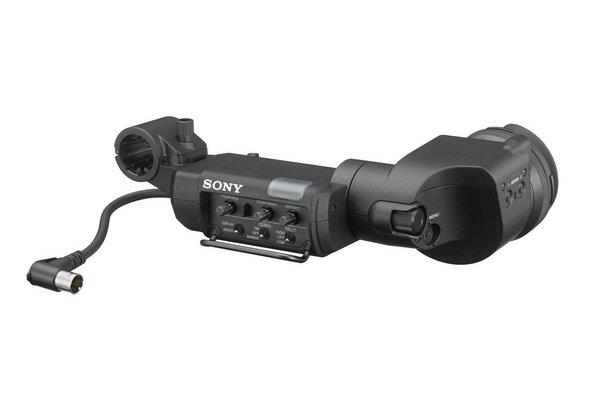

Sony HDVF-EL20
0.7" Full HD Color OLED Viewfinder


Our Price: $4,423.78
List Price: $4,815.00
You save 8%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

Sony's HDVF-EL20 is a 0.7" (viewable area, measured diagonally) full HD OLED viewfinder. It enables quick pixel response for focusing and tracking of moving objects. It provides exceptional high-contrast and a wide dynamic range thanks to its use of revolutionary Organic Light Emitting Diode (OLED) display technology.

Using a specially developed optical loupe, a high eye-point is possible. This allows operators to see a wider area of the picture when standing back from the eye piece. The displayed image on the viewfinder can be downscaled using a menu or an assignable button to avoid vignetting.

The HDVF-EL20 viewfinder can work with a wide variety of cameras such as the F65 Sony motion picture cameras, 4K/HD system cameras, and shoulder-type HD camcorders supporting the 20-pin round HDVF interface.

Sony HDVF-EL20 Features:

  • 0.7" 1920 x 1080 full HD Organic Light Emitting Diode (OLED) panel
  • High contrast ratio
  • Compatible with F65 digital motion picture cameras, 4K/HD system cameras, and shoulder-type HD camcorders
  • Specially developed optical loupe
  • Effective assignable buttons

Sony HDVF-EL20 Specifications:

  • General:
    • Power supply: 10.5 V to 17.0 V DC (supplied by the camera)
    • Power consumption: 7.3 W
    • Operating temperature: (-4°F to +113°F (-20°C to +45°C)
    • Storage temperature: -4°F to +140°F (-20°C to +60°C)
    • Weight: 1 lb, 11 oz (770 g)
    • External dimensions: See "External Dimensions Illustration", above.
  • OLED panel:
    • Type: 0.7-type color OLED panel
    • Display area: 5/8" × 3/8" (15.8 × 9.0mm) (H/V, 16:9 aspect ratio)
    • Diopter range for the loupe: -4.0 to +2.0 m-1
    • Performance:
      • Brightness: 200 cd/m2 (typical)
      • Effective pixels: 1920 (horizontal) × 1080 (vertical) × 3 (RGB)
      • Color temperature: D65
  • Input signals:
    • Y 1.0 Vp-p, synchronous, 75 ohm, terminated
    • Pb, Pr 0.7 Vp-p, asynchronous, 75 ohm, terminated
