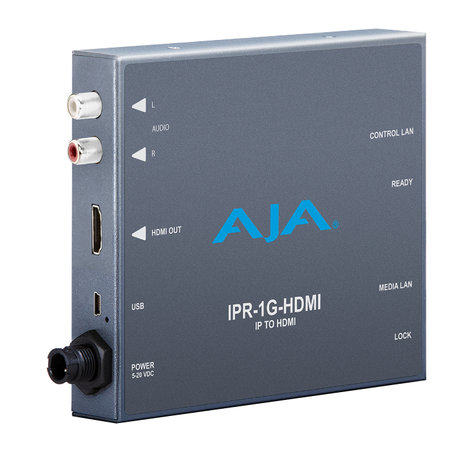

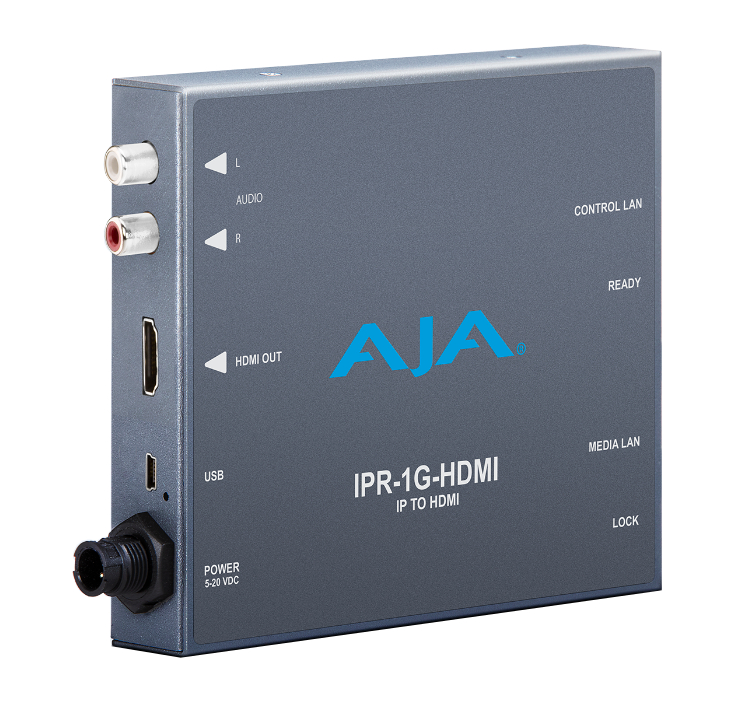

AJA Video Systems Inc IPR-1G-HDMI
JPEG 2000 IP Video & Audio HDMI Mini Converter

OUR PART #:  IPR-1G-HDMI

The AJA IPR-1G-HDMI is a VSF TR-01 (and other JPEG 2000 formats) to HDMI converter suited for point of use applications including source monitoring, digital signage...
Learn More
Our Price: $795.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc IPR-1G-HDMI
Qty:
In Stock

Similar Products

The AJA IPR-1G-HDMI is a VSF TR-01 (and other JPEG 2000 formats) to HDMI converter suited for point of use applications including source monitoring, digital signage, and video walls. The IPR-1G-HDMI decodes VSF TR-01 JPEG 2000 streams then formats the data for output on a full size HDMI 1.4 interface. The audio associated with the video stream is extracted, synchronized, and then embedded into the HDMI signal as well as output on an analog RCA audio interface.

AJA IPR-1G-HDMI Features:

  • 1x RJ-45 (IEC 60603-7) for 10/100/1000Base-T Ethernet media input
  • Essence support: VSF TR-01 and other JPEG 2000 MPEG-2 workflows
  • Rugged, fanless, portable design
  • Full size HDMI 1.4 video output
  • Embedded and analog audio outputs
  • Full 10-bit pixel processing pipeline
  • Network (LAN) control and status
  • Quick network setup with AJA eMini-Setup software

AJA IPR-1G-HDMI Specifications:

  • Video Formats:
    • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1920 x 1080i 25, 29.97
    • (HD) 1280 x 720p 50, 59.94, 60
    • (SD) 625i 25
    • (SD) 525i 29.97
  • Essense Input:
    • 1 x RJ-45 (IEC 60603-7) for 10/100/1000Base-T Ethernet (IEEE 802.3-2012)
    • VSF TR-01 and other J2K MPEG-2 workflows
  • Outputs:
    • HDMI Standard Type A connector: HDMI v1.4a 24/30 bits per pixel, RGB/YUV
    • Two RCA analog audio: Levels at -10dBV (nominal)
  • User Controls:
    • RJ-45 (IEC 60603-7) for 10/100/1000Base-T Ethernet (IEEE 802.3-2012)
      • HTTP/1.1 (RFCs 7230, 7231, 7232, 7233, 7234, 7235)
      • Web and REST clients supported
    • USB 2.0 Mini-B (IEC 62680-1) connector: AJA eMini-Setup of network parameters
  • Environment:
    • Safe Operating Temperature: 32° to 104°F (0° to 40°C)
    • Safe Storage Temperature (Power OFF): -40° to 140°F (-40° to 60°C)
    • Operating Relative Humidity: 10-90% noncondensing
    • Operating Altitude: <10,000 feet (<3,000 meters)
