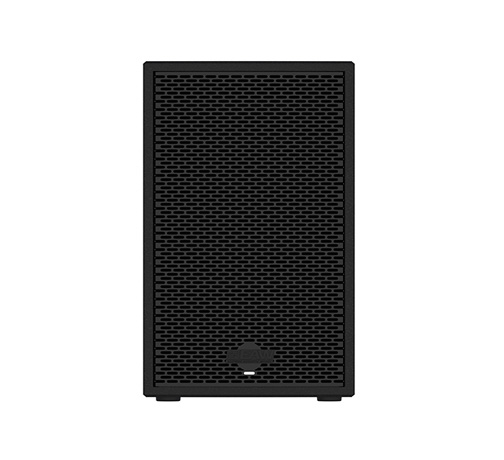

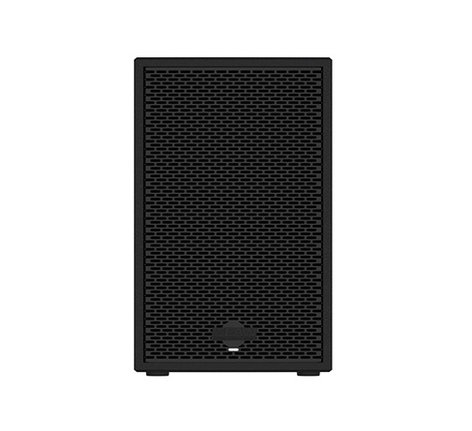

EAW RSX126 2-Way Self-Powered Loudspeaker

Designed to streamline setup and deliver maximum results in minimum time, RADIUS couples unique and intelligent features with EAW’s signature acoustical design to deliver solutions for rental firms and system integrators. The RSX126 features onboard bi-amplified electronics (500W RMS/ 1000W peak) featuring signature EAW DSP including Focusing and DynO for pristine impulse response. MK inspired constant directivity horn offers 60°x45° coverage and is rotatable for flexibility. EAWmosaic™ app provides total system optimization from anywhere in the venue, plus intuitive room design and prediction in a single, comprehensive application. With the proven sonic performance of EAW’s acoustic design and DSP mastery plus full Dante integration across the line, RADIUS delivers an intelligent and flexible system to fit any budget.

EAW RSX126 Features:

• Extremely approachable EAWmosaic™ iOS app deliverssystem prediction, control and monitoring from any location in the venue.
• Proven EAW acoustical design and DSP includingFocusing™ and DynO™ provides a pristine impulse response at all output levels.
• Four pre-defined voicings provide a variety of tonalstarting points.
• Integrated Dante™ networking (with loop-thru) on all models includingAnalog redundancy capability.

EAW RSX126 Specifications:

• Configuration
  • Subsystem:
    • Transducer: LF – 1 x 12 in cone, 3 in voice coil; HF – 1 x 1 in exit, 1.7 in voice coil compression driver
    • Loading: LF – Vented; HF – Horn-loaded
  • Operating Mode:
    • Amplifier Channels: Bi-amp (LF/HF)
    • Signal Processing: DSP w/EAW Focusing™and DynO™
  • Operating Range: 48 Hz to 20 kHz
  • Nominal Beamwidth:
    • Horizontal 60°
    • Vertical 45°
  • Calculated Axial Output Limit (whole space SPL)
    • Average: 130 dB (LF/HF)
    • Peak: 136 dB (LF/HF)
  • Input:
    • Type: Electronically balanced
    • Max Input Level: 21dBu
    • Impedance: 20 kOhm (balanced)
    • Input Wiring: XLRF, Pin 1 chassis, pin 2 +, pin 3 – separate loop-thru XLRM (for analog signal only)
    • Input Selection: Analog, Dante
  • Amplifiers & Processing (LF)
    • Type: Modified Class D (LF/HF)
    • Maximum Output: 500W (LF/HF)
    • Driver Protection: Integral DSP limiting (LF/HF)
  • AC Mains (nominal)
  • Connector: Neutrik PowerCon®
  • Input: 100 V to 240 V
  • Frequency: 50 Hz to 60 Hz
  • PowerConsumption:
    • Idle – 50W
    • Peak Draw – 500 W
  • Controls/Communication
  • Connections: 2x Neutrik® etherCON™, RJ-45
  • Protocols: Ethernet/Dante
  • Software: EAWmosaic™ (available on the App Store)
  • Indicators: LCD Screen on amplifier panel for UI, Logo LED (User-definable behavior)
  • User Controls: Push-button Rotary Encoder
