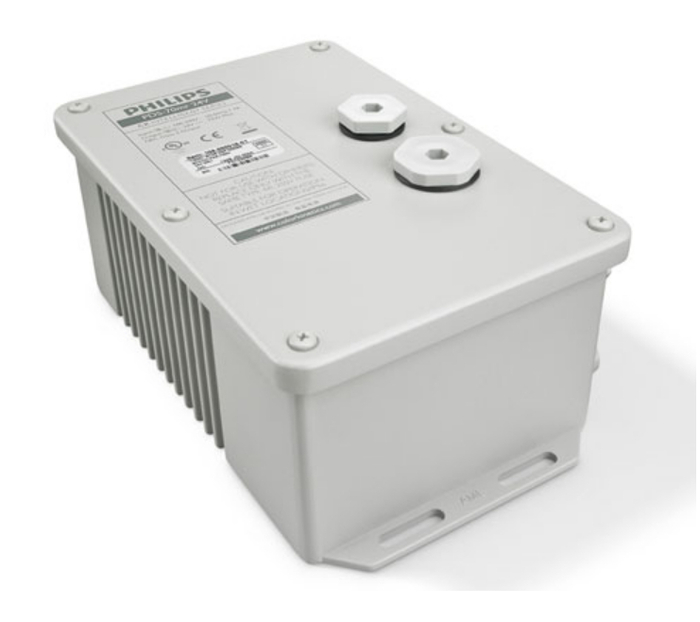

Philips Color Kinetics PDS-70mr 24V
24V Ethernet Power/Data Supply for MR LED Lamps

OUR PART #  109-000018-02

Our Price: $277.20
List Price: $358.00
You save 23%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The PDS-70mr 24V (also known as 109-000018-02) from Philips Color Kinetics is a power / data supply designed for LED lighting installations featuring MR LED lamps from Philips Color Kinetics. PDS-70mr 24V outputs a maximum of 72W in Ethernet, DMX, and Pre-programmed versions. This model is the Ethernet version.

Philips PDS-70mr 24V Features:

  • Universal power input range — PDS-70mr 24V accommodates input voltages ranging from 100 – 240 VAC. Short-circuit protection prevents device failure due to incorrectly wired fixtures.
  • Rugged exterior-rated enclosure — Features a NEMA 4 (IP66) enclosure for installation in any dry, damp, or wet locations.
  • Convenient installation — Multiple standard-size conduit entries accommodate 1/2" (13 mm) and 3/4" (19 mm) US trade-sized conduit.
  • Flexible control options — You can use PDS-70mr 24V DMX with any Philips Color Kinetics DMX or third-party controller, and PDS-70mr 24V Ethernet with any KiNET-compatible Ethernet controllers. PDS-70mr 24V Pre-programmed features four built-in visual effects, allowing configurations without DMX or Ethernet controllers. PDS-70mr 24V Pre-programmed can function as a master controller, delivering data to additional power / data supplies in a run.

Philips PDS-70mr 24V Specifications:

  • Electrical:
    • Input Voltage: 100 – 240 VAC, auto sensing, 50 – 60 Hz
    • Maximum Input Current: 1.7 A
    • Power Output: 24 VDC, 72 W maximum
    • Fuse Rating: (1) 125 V, 4 A, Type F (fast-acting) fuse
  • Physical:
    • Dimensions: 3.6" H x 5.5" W x 8.8" D (91 x 140 x 224 mm)
    • Weight: 4.5 lbs (2 kg)
    • Construction: NEMA 4 enclosure, cast aluminum, with slots for surface mounting
    • Finish: Powder-coated gray matte
    • Connectors:
      • Data: RJ-45 input and output connectors
      • Power Output:
        • 2-pin terminal block main output
        • 2-pin screw terminal auxiliary output
      • Power Input: Line-neutral-ground cable, flying leads
    • Temperature Ranges:
      • 14°– 104°F (-10°– 40°C) Operating
      • 14°– 122°F (-10° – 50°C) Startup
      • -40°– 176°F (-40°– 80°C) Storage
    • Humidity: 0 – 95%, non-condensing
    • Cooling: Convection
    • Heat Dissipation: 25% of total power input at maximum load
  • Control:
    • Data Input Source:
      • Pre-programmed: Internal
      • DMX: Philips Color Kinetics full range of DMX controllers, or compatible third-party controllers.
      • Ethernet: Philips Color Kinetics full range of Ethernet controllers, or KiNET-compatible* third-party controllers.
      • Maximum Fixture Run Length:
        • 14 MR LED lamps per device
        • 50 ft (15.2 m) maximum cable length
  • Certification and Safety:
    • Certification: UL / cUL, CE, PSE
    • Classification: UL Class 2 power supply
    • Environment: Dry / Damp / Wet Location, IP66

NOTE: *KiNET is the Ethernet lighting protocol from Philips Color Kinetics.

Philips Color Kinetics PDS-70mr 24V
24V Ethernet Power/Data Supply for MR LED Lamps

OUR PART #  109-000018-02

Product Information:

The PDS-70mr 24V (also known as 109-000018-02) from Philips Color Kinetics is a power / data supply designed for LED lighting installations featuring MR LED lamps from Philips Color Kinetics. PDS-70mr 24V outputs a maximum of 72W in Ethernet, DMX, and Pre-programmed versions. This model is the Ethernet version.

Philips PDS-70mr 24V Features:

  • Universal power input range — PDS-70mr 24V accommodates input voltages ranging from 100 – 240 VAC. Short-circuit protection prevents device failure due to incorrectly wired fixtures.
  • Rugged exterior-rated enclosure — Features a NEMA 4 (IP66) enclosure for installation in any dry, damp, or wet locations.
  • Convenient installation — Multiple standard-size conduit entries accommodate 1/2" (13 mm) and 3/4" (19 mm) US trade-sized conduit.
  • Flexible control options — You can use PDS-70mr 24V DMX with any Philips Color Kinetics DMX or third-party controller, and PDS-70mr 24V Ethernet with any KiNET-compatible Ethernet controllers. PDS-70mr 24V Pre-programmed features four built-in visual effects, allowing configurations without DMX or Ethernet controllers. PDS-70mr 24V Pre-programmed can function as a master controller, delivering data to additional power / data supplies in a run.

Philips PDS-70mr 24V Specifications:

  • Electrical:
    • Input Voltage: 100 – 240 VAC, auto sensing, 50 – 60 Hz
    • Maximum Input Current: 1.7 A
    • Power Output: 24 VDC, 72 W maximum
    • Fuse Rating: (1) 125 V, 4 A, Type F (fast-acting) fuse
  • Physical:
    • Dimensions: 3.6" H x 5.5" W x 8.8" D (91 x 140 x 224 mm)
    • Weight: 4.5 lbs (2 kg)
    • Construction: NEMA 4 enclosure, cast aluminum, with slots for surface mounting
    • Finish: Powder-coated gray matte
    • Connectors:
      • Data: RJ-45 input and output connectors
      • Power Output:
        • 2-pin terminal block main output
        • 2-pin screw terminal auxiliary output
      • Power Input: Line-neutral-ground cable, flying leads
    • Temperature Ranges:
      • 14°– 104°F (-10°– 40°C) Operating
      • 14°– 122°F (-10° – 50°C) Startup
      • -40°– 176°F (-40°– 80°C) Storage
    • Humidity: 0 – 95%, non-condensing
    • Cooling: Convection
    • Heat Dissipation: 25% of total power input at maximum load
  • Control:
    • Data Input Source:
      • Pre-programmed: Internal
      • DMX: Philips Color Kinetics full range of DMX controllers, or compatible third-party controllers.
      • Ethernet: Philips Color Kinetics full range of Ethernet controllers, or KiNET-compatible* third-party controllers.
      • Maximum Fixture Run Length:
        • 14 MR LED lamps per device
        • 50 ft (15.2 m) maximum cable length
  • Certification and Safety:
    • Certification: UL / cUL, CE, PSE
    • Classification: UL Class 2 power supply
    • Environment: Dry / Damp / Wet Location, IP66

NOTE: *KiNET is the Ethernet lighting protocol from Philips Color Kinetics.
