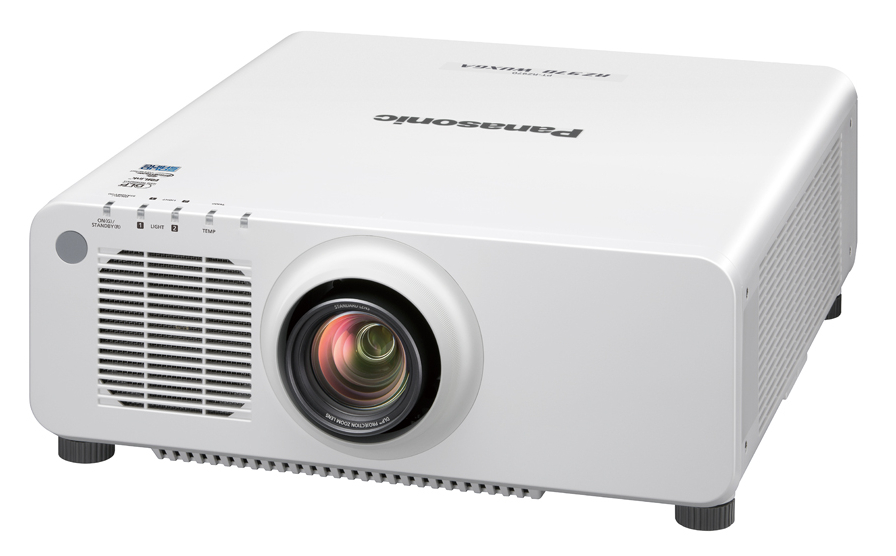

Panasonic PT-RZ970WU 10000 Lumens WUXGA DLP Laser Projector

The PT-RZ970WU from Panasonic is a member of their PT-RZ970 series of laser projectors - with this unit coming in white with a lens.

With immersive picture quality and practical features, potential application for Panasonic’s PT-RZ970 Series projectors extends from permanent installation in museums, theaters, and control rooms through roles in exhibition/rental and staging. Powered by the acclaimed SOLID SHINE Laser drive and latest 1-Chip DLP™ technology, these projectors exceed expectations with low-maintenance stability and vivid color performance maintained for longer than competitive products over years of dependable 24/7 operation. The PT-RZ970 Series: made by professionals, for professionals.

With next-generation DLP™ technology delivering high-resolution detail and dual laser modules outputting up to 10,400 lm (Center)*2 of brightness, Quartet Color Harmonizer to reduce energy loss from the light source, and robust heat-resistant phosphor wheel, the Panasonic SOLID SHINE Laser system produces scintillating images with unfailing

reliability.

The Quartet Color Harmonizer wheel mechanism captures a wider color space than comparable projectors, which allows white to be reproduced realistically on screen. Some conventional projectors can’t achieve an accurate white balance, so images can appear with a distracting greenish tint. Not the case with Panasonic SOLID SHINE Laser projectors. Thanks to the long-lasting dual solid-state laser modules, there are no lamps to replace, and image color/brightness degrades very gradually in consistent, linear fashion. As well as reducing maintenance hassle, out-of-the-box picture quality is preserved longer.

The PT-RZ970 Series directly modulates laser power output to achieve high contrast with low power consumption. Digitally controlled frame-by-frame scene-linking modulation ensures highly precise output adjustment, while accurate 10,000:1* contrast is delivered even when bright and dark scenes frequently interchange.

NOTE: * With Dynamic Contrast Mode set to 3.

The PT-RZ970 Series is among the world’s first to feature Contrast Sync and Shutter Sync functions (Patent Pending) for multi-screen and mapping applications. Contrast Sync allows the projectors’ digitally modulated contrast function to be synchronized over the network for consistent picture quality across screens, while Shutter Sync incorporates a master/slave principle to synchronize shutter on/off timing between all networked projectors. It includes simultaneous fade-in and fade-out functions.

NOTE: Use of straight cable is necessary for all serial connections.

The PT-RZ-970 comes with Geometry Manager Pro software which expands built-in image-adjustment functionality and makes complex multi-screen setup easy. The free software includes color matching, edge blending, and other functions via network. An optional ET-UK20 Upgrade Kit for Geometry Manager Pro adds uniformity correction and numerous creative masking capabilities, while the optional ET-CUK10* kit activates an Auto Screen Adjustment plug-in, allowing automatic and simultaneous setup of multiple projectors.

The plugin performs multi-screen and curved-screen calibration in three quick steps using a camera and PC connected to the projector network, greatly simplifying geometric adjustment, edge blending, color matching, stacking, brightness, and black level setup.

NOTE: * Available worldwide except the United States. Supported cameras: Nikon D5200/D5300/D5500.

Panasonic PT-RZ970 Features:

• SOLID SHINE Laser and DLP™ Projection Balances Image Quality with 20,000-hour Maintenance-free*1 Endurance
• Dynamic Contrast Function for High Contrast
• Dust-Resistant Airtight Optical Block
• Detail Clarity Processor 3 Sharpens the Finest Details
• Selectable Operational Modes Maintain Image Quality Longer
• System Daylight View 3 for Sharp and Vivid Images in Bright Environments
• Stable 24/7 Operation with Light-source Failover Protection
• Unique Contrast Sync and Shutter Sync Function
• Geometric Adjustment for Custom Screen Surfaces
• Geometry Manager Pro Software
• Multi-Screen Support System Seamlessly Connects Multiple Screens
• Multi-Unit Brightness and Color Control
• Single-Cable DIGITAL LINK Control and Video Connection
• Free 360-degree Rotation
• Supports Art-Net DMX, Crestron Connected™, and PJLink™
• Quick Start and Quick Off

Panasonic PT-RZ970 Specifications (partial):

• Main unit:
  • Power supply: AC100 - 240V 10.4-5.0A 50Hz/60Hz
  • Power consumption: 1,050W
  • NORMAL: 742W ECO: 617W
  • LONG LIFE1: 410-588
  • LONG LIFE 2: 375-588W
  • LONG LIFE 3: 349-588W
  • SHUTTER: 82W
  • STANDBY MODE [ECO]*1: 0.2W STANDBY MODE [NORMAL]: 3W
  • STANDBY MODE (When the [QUICK STARTUP] function isenabled): Approx. 85 W
  • NOTES *OperatingTemperature: 25 °C (77 °F), Altitude: 700m (2,297 ft)
• ICE62087: 2008 Broadcast contents
• Picture mode: Standard, Dynamic Contrast2
• BTU Value: Max 3,584 BTU
• LCD Panel:
  • Panel size: 17.0 mm (0.67 in) diagonal (16:10 aspectratio)
  • Display method: DLP™ chip × 1, DLP™ system
  • Pixels: 2,304,000 (1920 × 1200) × 1, total of 1,024,000 pixels
• Lens:
  • PT-RZ970B/W: Powered zoom/focus lenses (1.7–2.4:1), F1.7–1.9, f 25.6–35.7 mm
  • PT-RZ970LB/LW: Optional powered zoom/focus lenses and fixed-focus lens
• Light source:
  • Laser Diode Laser class 1 (Class3R for US models)
  • Luminance life for set: 20,000 hours at half luminance (normal)/24,000 hours at half luminance (Eco)
  • NOTES *Temperature: 30°C / 86°F, Altitude 700m (2,297 ft), Dust: 0.15mg/m3
  • Dynamic Contrast3
  • 43,800 hours at constant luminance (LONG LIFE1)
  • 61,320 hours at constant luminance (LONG LIFE2)
  • 87,600 hours at constant luminance (LONGLIFE3)
• Screen Size:
  • 1.27– 15.24 m (50–600 inches) (16:10 aspect ratio)
  • *1.27 – 5.08 m (50 – 200 inches) with the ET-DLE055 (16:10 aspect ratio)
  • *2.54 – 7.62 m (100 – 350 inches) with the ET-DLE030 (16:10 aspect ratio)
• Brightness*3:
  • 10,000 lumens (Center)*2/ 9,400 lumens*3
  • 9,400 lumens (Half luminance) (NORMAL)
  • 7,500 lumens (Half luminance) (ECO)
  • 3,700 lumens (Constant luminance) (LONG LIFE1)
  • 3,100 lumens (Constant luminance) (LONG LIFE2)
  • 2,500 lumens (Constant luminance) (LONGLIFE3)
• Center-to-corner uniformity*3: 90%
• Contrast*3: 10,000:1 (All White/All Black) (Dynamic Contrast3)
• Resolution: 1920 × 1200 pixels
• NOTE For additional details on all specifications, please see the documentation above.
