Elation DTW Bar 1000 12x10W CW / WW / Amber LED Batten Fixture

OUR PART #: DTW-BAR-1000 MFR #: DTW392

Copied to clipboard

Elation Pro Lighting's feature-rich DTW BAR 1000™ offers (12) 10W multi-chip CW / WW / Amber LEDs, a 28° beam angle, a full color temperature range control (2,700K - 6,500K)... ...Read more

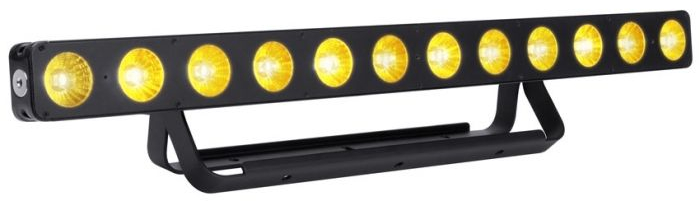

Elation DTW Bar 1000 12x10W CW / WW / Amber LED Batten Fixture Image 1
Elation DTW Bar 1000 12x10W CW / WW / Amber LED Batten Fixture Image 2
Elation DTW Bar 1000 12x10W CW / WW / Amber LED Batten Fixture Image 3
Elation DTW Bar 1000 12x10W CW / WW / Amber LED Batten Fixture Image 4
Elation DTW Bar 1000 12x10W CW / WW / Amber LED Batten Fixture
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Elation Pro Lighting's feature-rich DTW BAR 1000™ offers (12) 10W multi-chip CW / WW / Amber LEDs, a 28° beam angle, a full color temperature range control (2,700K - 6,500K), independent Dim-to-Warm channel control (1,800K - 3,200K), pixel control, variable dimming curve modes, plus strobe and chase effects. It also features: DMX, RJ45, ArtNet, KlingNet and RDM (remote device management) protocol support, power in/out connections, multiple unit power linking, LCD menu display with 4 button control panel, flicker-free operation for TV and FILM, integrated dual rigging brackets, rugged die-cast aluminum exterior, frost filter and glare shield (included), and a multi-voltage universal auto switching power supply (110-240v).

Includes

  • DTW BAR 1000 unit
  • powerCON Cable
  • Frost Filter
  • Glare Shield

Features

  • 28° Beam Angle
  • Frost Filter and Glare Shield (included)
  • Full Color Temperature Range Control (2,700K - 6,500K)
  • Pixel Control and Independent Dim-to-Warm Channel Control (1,800K - 3,200K)
  • ArtNet and KlingNet Support
  • Rugged, Die-Cast Aluminum Exterior
  • Flicker-Free Operation for TV and FILM

Specifications

  • Manufacturer SKU# DTW392
  • Source:
    • (12) 10W Multi-Chip CW / WW / Amber LEDs
    • 100,000 Hour Average LED Life (LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)
  • Photometric Data:
    • 6,425 LUX 597 FC @3.3’ (1m) (28° Full ON)
    • 3,196 LUX 297 FC @3.3’ (1m) (38° Full ON w/Frost Filter)
  • Effects:
    • Pixel Control
    • Strobe and Chase Effects
    • Variable Dimming Curves Modes
    • Independent Dim-to-Warm Channel Control (1,800K - 3,200K)
  • Control / Connections
    • (12) DMX Channel Modes (1 / 2 / 3 / 5 / 6 / 7 / 1 0 / 1 2 / 14 / 36 / 41 / 45)
    • 4-Button Control Panel and LCD Menu Display
    • ArtNet + KlingNET Protocol Support
    • RDM (Remote Device Management)
    • (2) etherCON RJ45 In/Out
    • 3-pin and 5-pin DMX In/Out
    • powerCON Power In/Out
  • Physical:
    • Dimensions: 35.4" L x 8.1" W x 6.1" Vertical Height (900 x 206.4 x 155mm) *Note: with included glare shield
    • Weight: 14.0 lbs. (6.4 kg)
  • Electrical / Thermal
    • AC 110-240V - 50/60Hz
    • Max Power Consumption: 120W
    • 5°F to 113°F (-15°C to 45°C)
  • Approvals / Ratings: CE | cETLus | IP20
