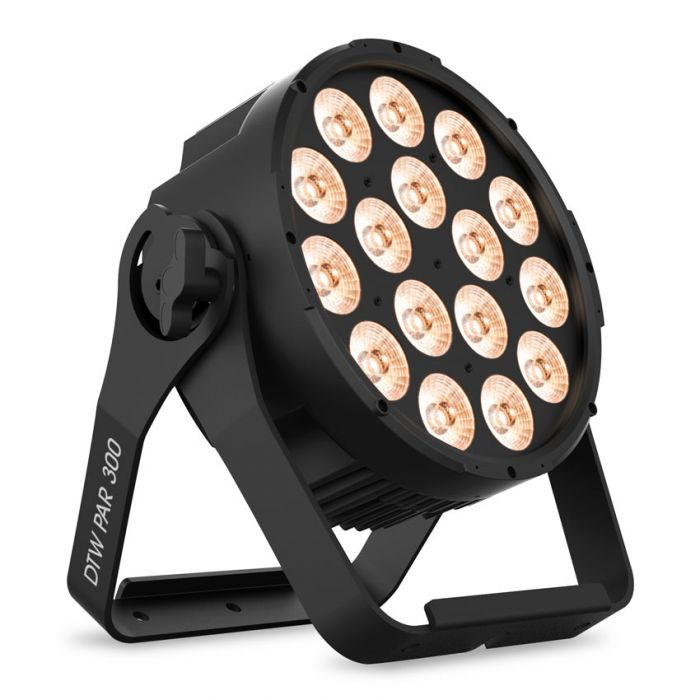

Elation Pro Lighting DTW PAR 300
Par-Type Fixture with 16x 15W - CW, WW, and Amber LEDs

OUR PART #:  DTW-PAR-300

Elation Pro Lighting's DTW PAR 300™ is a par-type fixture whose features include: (16) 10W multi-chip CW / WW / Amber LEDs, 23° beam angle...
Learn More
Our Price: $660.00
List Price: $825.00
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Elation Pro Lighting DTW PAR 300
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Elation Pro Lighting's DTW PAR 300™ is a par-type fixture whose features include: (16) 10W multi-chip CW / WW / Amber LEDs, 23° beam angle, full color temperature range control from Tungsten to Daylight (2,700K - 6,500K) and a unique “Dim-to-Warm” function that allows dimming from Tungsten to Amber at zero to emulate the halogen lamp decay when dimming, as well as variable dimming curve modes. It also includes flicker-free operation for TV and FILM, strobe effects, 3-pin and 5-pin DMX and powerCON in/out connections, RDM (remote device management) protocol support, LCD menu display with 4-button control panel, multiple unit power linking, integrated dual rigging brackets, rugged die-cast aluminum housing, and a multi-voltage universal auto switching power supply (110-240v).

Elation Pro Lighting DTW PAR 300 Includes:

  • Elation Pro Lighting DTW PAR 300 Unit
  • powerCON Cable

Elation Pro Lighting DTW PAR 300 Features:

  • 23° Beam Angle
  • Tungsten to Daylight (2,700K - 6,500K)
  • Unique Dim-to-Warm Channel Control (1,800K - 3,200K)
  • RDM - Remote Device Management
  • Rugged, Die-Cast Aluminum Exterior
  • Flicker-Free Operation for TV and FILM

Elation Pro Lighting DTW PAR 300 Specifications:

  • Manufacturer SKU# DTW301
  • Source
    • (16) 10W Multi-Chip CW / WW / Amber LEDs
    • 100,000 Hour Average LED Life*
      *LED Life may vary depending on several factors including but not limited to: Environmental Conditions,  Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
  • Photometric Data: 2,635 LUX 245 FC @9.8’ (3m) (23° Full ON)
  • Color: Tungsten to Daylight (2,700K - 6,500K)
  • Effects:
    • Electronic Strobe and Variable Dim Curves
    • Unique Dim-to-Warm Channel Control (1.800K - 3.200K)
  • Control / Connections:
    • (7) DMX Channel Modes (8 Total Channels)
    • 4-Button Control Panel and LCD Menu Display
    • RDM (Remote Device Management)
    • 3-pin and 5-pin DMX and powerCON In/Out
  • Physical:
    • Dimensions (LxWxH): 14.4" x 5.1" x 14.7" (365 x 129 x 373mm)
    • Weight: 19.0 lbs. (8.6 kg)
  • Electrical / Thermal:
    • AC 110-250V - 50/60Hz
    • 170W Max Power Consumption
    • 5°F to 113°F (-15°C to 45°C)
  • Approvals / Ratings: CE | RoHs
