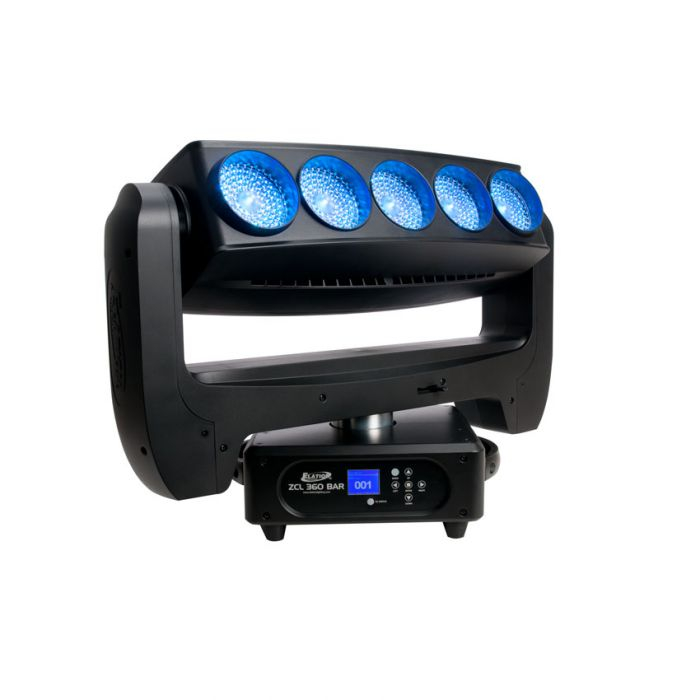

Elation Pro Lighting ZCL-360-BAR
5- 60w RGBW 360 Degree Moving Head LED with Zoom

OUR PART #:  ZCL-360-BAR

Elation Pro Lighting ZCL-360-BAR Bottom
Elation Pro Lighting ZCL-360-BAR Back
Elation Pro Lighting ZCL-360-BAR Side

Click a thumbnail to see more images. (5 total)

Our Price: $2,000.00
List Price: $2,500.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Elation Pro Lighting ZCL-360-BAR
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Elation Pro Lighting ZCL 360 BAR™ is a versatile moving bar effect luminaire with zoom featuring five individual 60W RGBW 4-in-1 LEDs and the new advanced collimator optic lens, which produces a laser-like homogenized 4° color-changing beam from each lens. Features 4° to 44° motorized zoom, pixel control, fast and precise 16-bit continuous full 360° pan and tilt rotation, strobe, and selectable dimming curve effects, DMX, RDM (Remote Device Management), KlingNET™ and Art-NET support 3/5pin XLR, RJ45 etherCON, and powerCON in/out connections, seven button control full color 180° reversible menu display, multiple unit power linking, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (100-240v).

Elation Pro Lighitng ZCL-360-BAR Features:

  • Versatile Multiple Beam Moving Bar Effect Luminairewith Zoom
  • New Advanced Collimator Lens
  • 4° to 44° Motorized Zoom and Pixel Control
  • Five Laser-Like Homogenized 4° Color Changing Beams
  • Fast and Precise 16-Bit Continuous 360° Pan/TiltRotation
  • Flicker Free Operation for TV and FILM

Elation Pro Lighitng ZCL-360-BAR Specifications:

  • Source:
    • Five 60W RGBW 4-in-1 LED
    • 100,000 Hour Average LED Life
  • Photometric Data:
    • 25,230 LUX 2,344 FC @9.8 ft (3m) (4° Min Zoom) Full ON
    • 819 LUX 76 FC @9.8 ft (3m) (44° Max Zoom) Full ON
  • Color: RGBW
  • Effects:
    • RGBW Color Mixing
    • Pixel Control
    • 4° - 44° Beam Zoom
    • Electronic Strobe and Dimming
    • Variable Dimming Curves
    • 64 Color Presets and 14 Unique Program Macros
  • Control/Connections:
    • Three DMX Channel Modes (37 Total Channels)
    • RDM (Remote Device Management)
    • Seven Button Touch Control Panel
    • Full Color 180° Reversible LCD Menu Display
    • 8 / 16 Bit Resolution Adjustable Movement
    • 3pin/5pin XLR DMX In/Out
    • RJ45 etherCON In/Out (KlingNET™ / Art-NET)
    • powerCON Power In/Out
  • Size/Weight:
    • Dimensions (LxWxH): 25.11” x 10.24” x 18.07” (637.8 x 260 x 459mm)
    • Weight: 53.0 lbs. (24.0 kg)
  • Electrical/Thermal:
    • AC 100-240V - 50/60Hz
    • 530W Max Power Consumption
    • 5°F to 113°F (-15°C to 45°C)
  • Approvals/Ratings: CE | RoHs | IP30
