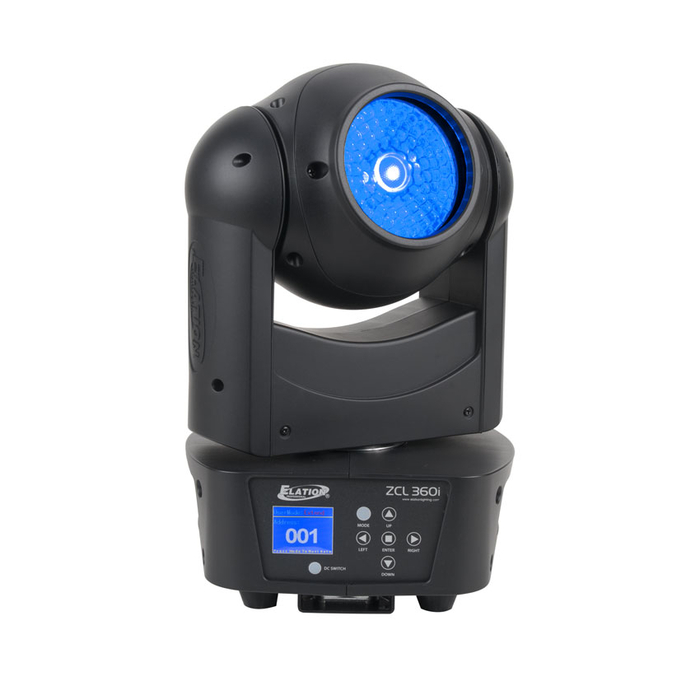

Elation ZCL 360i 90W RGBW LED Moving Head Beam Fixture with 360 Degree Pan / Tilt Rotation and Zoom

OUR PART #: ZCL-360i MFR #: ZCL301

Copied to clipboard
Elation ZCL 360i 90W RGBW LED Moving Head Beam Fixture With 360 Degree Pan / Tilt Rotation And Zoom Image 1
Elation ZCL 360i 90W RGBW LED Moving Head Beam Fixture With 360 Degree Pan / Tilt Rotation And Zoom Image 2
Elation ZCL 360i 90W RGBW LED Moving Head Beam Fixture With 360 Degree Pan / Tilt Rotation And Zoom Image 3
Elation ZCL 360i 90W RGBW LED Moving Head Beam Fixture With 360 Degree Pan / Tilt Rotation And Zoom
Our Price: $1,196.00
List Price: $1,495.00
You save 20%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Elation Pro Lighting ZCL 360i™ is a powerful single beam moving effect luminaire with zoom centered around a single 90W RGBW 4-in-1 LED and the new advanced collimator optic lens, which produces a laser-like homogenized 4° color-changing beam. Features include 4° to 44° motorized zoom, fast and precise16-bit continuous full 360° pan and tilt rotation, electronic strobe, dimmer, and selectable dimming curve effects. Controlling the ZCL 360i is done thru DMX, RDM (Remote Device Management), KlingNET™, and Art-NET support, 5pin XLR, RJ45 etherCON, and powerCON in/out connections. This fixture also offers a (7) button control full color 180° reversible menu display, multiple unit power linking, boasts flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (100-240v).

Features

  • Powerful 4° Single Beam Moving Effect Luminaire with Zoom
  • 90 W RGBW 4-in-1 LED
  • 4° to 44° Motorized Zoom
  • New Advanced Collimator Optic Lens
  • Laser-Like Homogenized Color Changing Beam
  • Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
  • Flicker Free Operation for Broadcast TV and FILM

Specifications

  • Source:
    • 90 W RGBW 4-in-1 LED
    • 100,000 Hour Average LED Life
  • Photometric Data:
    • 11,123 LUX 1,033 FC @ 9.8 ft (3m) (4° Min Zoom) Full ON
    • 483 LUX 45 FC @ 9.8 ft (3m) (44° Max Zoom) Full ON
  • Color: RGBW
  • Effects:
    • RGBW Color Mixing
    • 4° - 44° Beam Zoom Range
    • Variable Dimming Curves
    • Electronic Strobe and Dimming (0% - 100%)
    • 64 Color Presets and 14 Unique Color Macros
  • Control/Connections:
    • (3) DMX Channel Modes (21 Total Channels)
    • RDM (Remote Device Management)
    • (7) Button Touch Control Panel
    • Full Color 180° Reversible LCD Menu Display
    • 8 / 16 Bit Resolution Adjustable Movement
    • 5pin XLR In/Out
    • RJ45 etherCON In/Out (KlingNET™ / Art-NET)
    • powerCON Power In/Out
  • Dimensions (LxWxH): 8.74” x 7.31” x 13.22” (222.1 x 186 x 336 mm)
  • Weight: 13 lbs. (5.9 kg)
  • Electrical/Thermal:
    • AC 100-240 V - 50/60 Hz
    • 101W Max Power Consumption
    • 5° F to 113° F (-15° C to 45° C)
  • Approvals/Ratings: CE | RoHs | IP30
