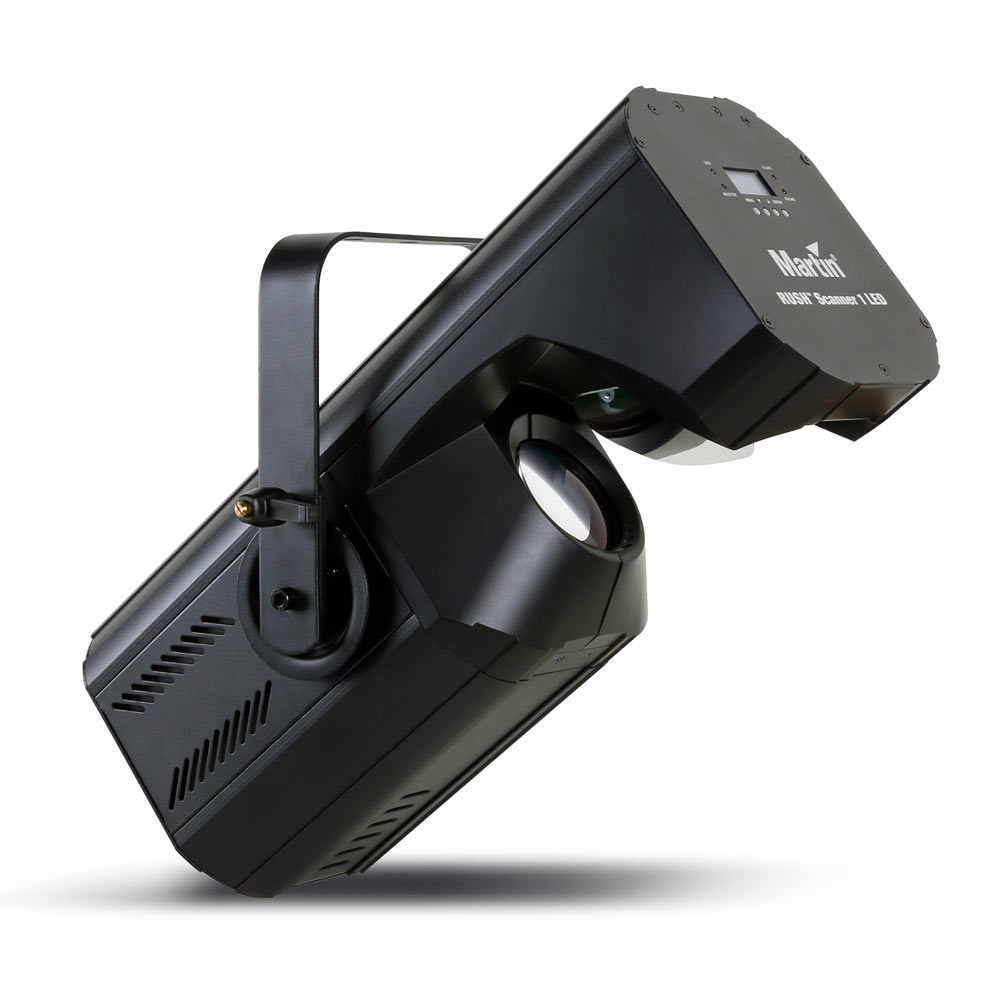

Martin Professional RUSH SCANNER 1 LED
90w LED Scanner/ Moving Mirror

OUR PART #:  RUSH-SCANNER-1

The Martin Harman RUSH-SCANNER-1 is a high-output LED fixture with a dynamic feature set.
Learn More
Our Price: $1,119.00
List Price: $1,398.75
You save 20%!
Write the first review.
Martin Professional RUSH SCANNER 1 LED
Qty:
In Stock

Related Products

The Martin Harman RUSH-SCANNER-1 is a high-output LED fixture with a dynamic feature set. The RUSH Scanner 1 LED offers multiple colors, gobos and prism effects that help lighting designers deliver high-speed mid-air looks that boost the wow factor and raise the energy of crowds. The new fixture is an exciting addition to the RUSH lighting series and perfectly suited for a wide range of entertainment venues and nightclubs.

Martin Harman RUSH-SCANNER-1 Includes:

  • Power cable, 6 A, 18 AWG, 0.75 mm2, UL- listed,H05VV-F, 1.5 m, without mains plug
  • Mounting bracket

Martin Harman RUSH-SCANNER-1 Features:

  • High-power, long-life 90 W white LED engine
  • Effects include two gobo wheels. two color wheels anda 3-facet prism
  • Sharp projections with motorized focus
  • DMX control and standalone operation
  • Auto trig and music trig standalone modes
  • Compact size and rugged construction

Martin Harman RUSH-SCANNER-1 Specifications:

  • Product Number: 90480120
  • Dimensions (LxWxH): 23.1" x 11.9" x 7.6" (588 x 303 x193 mm)
  • Weight: 21.1 lbs. (9.6 kg)
  • Dynamic Effects:
    • Color wheel 1: 8 colors plus open, rotation with variable direction and speed
    • Color wheel 2: 8 colors (incl. 1 x UV, 2 x CTC) plus open, rotation with variable direction and speed
    • Rotating gobo wheel: 6 rotating/indexing gobos plus open
    • Fixed gobo wheel: 7 gobos plus open
    • Electronic 'shutter' effect: Strobe, pulse effects, instant open and blackout
    • Prism: Indexing and rotation with variable direction and speed
    • Focus: Motorized
    • Electronic dimming: 0 - 100%, four dimming curve options
    • Pan: 170°, coarse & fine control
    • Tilt: 75°, coarse & fine control
  • Control and Programming:
    • Control options: DMX, standalone, synchronized master/slave
    • DMX channels: 16
    • Standalone trigger options: Sound activation (music trig), auto trig
    • Standalone sequences: 9 pre-programmed shows
    • Standalone memory: 20 scenes
    • Music trig sensitivity: Adjustable
    • Setting and addressing: Control panel with backlit LCD display
    • DMX compliance: USITT DMX512/1990
  • Optics:
    • Light source: 90 W LED engine
    • Minimum LED lifetime: 30 000 hours (to >70% luminous output)
    • Rotating gobo size: 0.94" (24 mm)
    • Rotating gobo image size: 0.79" (20 mm)
  • Construction:
    • Color: Black
    • Housing: High-impact flame-retardant thermoplastic
    • Protection rating: IP20
  • Installation:
    • Mounting points: Adjustable bracket, surface or truss mount
    • Location: Indoor use only, must be fastened to surface or structure
    • Orientation: Any
  • Connections:
    • AC power in/thru: Neutrik PowerCon
    • DMX data in/out: 3-pin and 5-pin locking XLR
  • Electrical:
    • AC power: 100-240 V nominal, 50/60 Hz
    • Power consumption: 168 W
    • Typical half-cycle RMS inrush current at 240 VAC: 10 A
    • Fuse: T 6.3 A
    • Power supply unit: Auto-ranging electronic switch mode
  • Typical Power and Current:
    • 100 V, 60 Hz: 1.7 A, 170 W, PF 0.997
    • 120 V, 60 Hz: 1.4 A, 165 W, PF 0.994
    • 230 V, 50 Hz: 0.7 A, 162 W, PF 0.937
  • Thermal:
    • Cooling: Forced air
    • Maximum ambient temperature (Ta max.): 104° F (40° C)
    • Minimum ambient temperature (Ta min.): 32° F (0° C)
    • Total heat dissipation (calculated, +/- 10%, at full intensity): 570 BTU/hr.
  • Approvals:
    • EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
    • EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
    • US safety: UL 1573 US EMC: FCC Part 15 Class B
    • Canadian safety: CSA C22.2 No. 166
    • Canadian EMC: ICES-003 Class A
    • Australia/NZ: RCM
