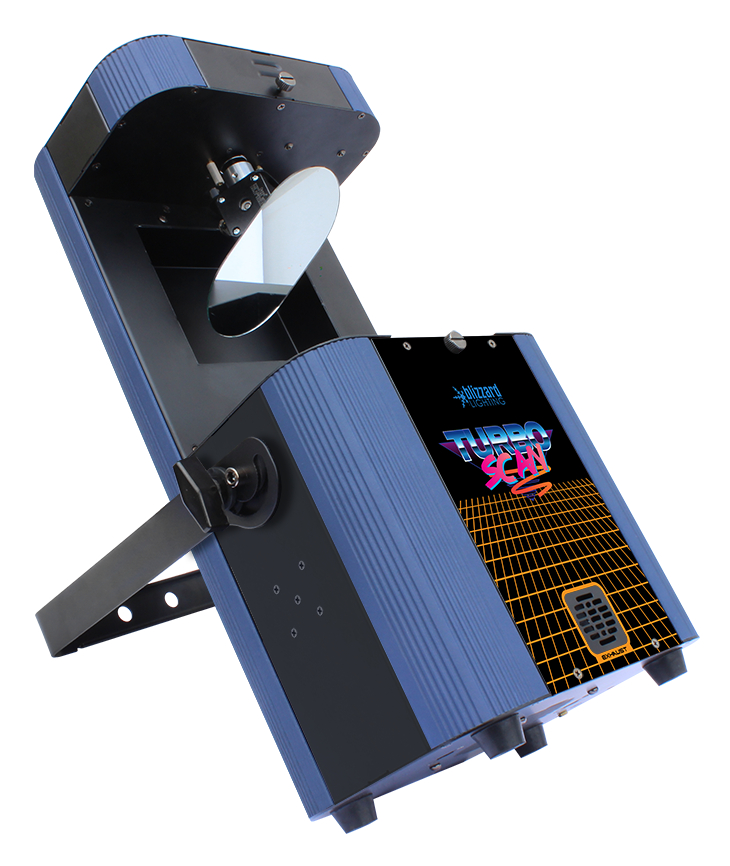

Blizzard Turbo Scan 150W LED SCanner / Moving Mirror Fixture

OUR PART #: TURBO-SCAN MFR #: TURBO SCAN

Copied to clipboard

A super-bright, blazing fast LED scanner effect... ...Read more

Blizzard Turbo Scan 150W LED SCanner / Moving Mirror Fixture Image 1
Blizzard Turbo Scan 150W LED SCanner / Moving Mirror Fixture Image 2
Blizzard Turbo Scan 150W LED SCanner / Moving Mirror Fixture Image 3
Blizzard Turbo Scan 150W LED SCanner / Moving Mirror Fixture
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

A super-bright, blazing fast LED scanner effect, Blizzard's Turbo Scan™ is built to impress with a 150-watt LED light source and an abundance of pro features that will give your audience that “nailed back in your seat” thrill that they're all hoping for.

It creates crisp, clear beams, and is equipped with two (2) gobo wheels, each with seven (7) gobos, including seven (7) rotating, indexing, and interchangeable. Glass? Of course. There's four (4) of them installed and ready to rock your world.

Blizzard Turbo Scan Features:

  • Single 150W white LED light source
  • 16-bit smooth pan/tilt resolution
  • Pan: 180° Tilt: 90° with 3-phase motors
  • Automatic pan/tilt position correction
  • User selectable 21/23/24-channel DMX modes
  • (7) colors + open color wheel with half-colors
  • (2) gobo wheels, 1 static/1 rotating both with 7 gobos + open
  • 3/8-facet dual prism with variable speed and direction
  • 0-100% linear LED dimmer
  • Extremely silent cooling fans
  • 3-pin and 5-pin male/female input and outputs
  • Powercon compatible AC power In/Out connectors

Blizzard Turbo Scan Specifications:

  • Light Source: 150W White Luminus LED, 60,000 hrs.
  • Control:
    • Protocol: USITT DMX-512
    • DMX Channels: 21/23/24
    • Operating Modes: Standalone, M/S, Auto, Sound Active
    • Input: 3-pin/5-pin XLR Male
    • Output: 3-pin/5-pin XLR Female
    • LCD full-color 4-button control panel
  • Moving Mirror:
    • Pan: 180° (0.8 seconds)
    • Tilt: 90° (0.5 seconds)
  • Optical:
    • 15° Beam Angle
    • Gobo Size: 24.8mm, Image Size: 17.5mm
    • Luminous Intensity: 32,121 Lux @ 2m | 6,017 Lux @ 5m
  • Power:
    • Operating Voltage 90-260VAC, 50-60 Hz
    • Power Consumption: 184W, 1.6A, PF:.98
  • Operating Temperature: 104° F (40° C) ambient
  • Weight & Dimensions:
    • Dimensions: 20.9" x 10.3" x 8.75"
    • Weight: 26.5 lbs.
