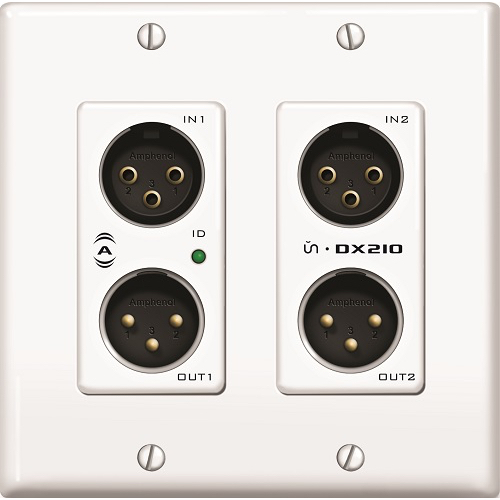

Attero Tech UNDX2IO-W-U
2x2 Channel 2 Gang US Wall Plate with XLR I/O, PoE, White Finish, UDP 3rd Party Control

OUR PART #:  UNDX2IO-W-U

The Attero Tech unDX2IO DanteTM Audio Interface is a cost effective multi-IO wall box. The unDX2IO features two balanced mic/line XLR inputs and two balanced XLR line outputs.
Learn More
Our Price: $591.00
List Price: $739.00
You save 20%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Attero Tech UNDX2IO-W-U
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Attero Tech unDX2IO DanteTM Audio Interface is a cost effective multi-IO wall box. The unDX2IO features two balanced mic/line XLR inputs and two balanced XLR line outputs. All inputs and outputs can be used simultaneously and all audio channels are available separately. The unDX2IO is designed to fit into most dual gang US junction boxes and is PoE enabled, so all connectivity (power and data) is provided by a single CAT-5 cable. The unDX2IO’s size and IO density make it easy to put Dante connectivity wherever it’s needed - near the audio source or sink - thereby eliminating costly and interference prone analog wiring.

Attero Tech unDX2IO Applications:

  • Hotel ballrooms
  • Conference/meeting centers
  • Conference rooms
  • Sports facilities
  • Convention centers
  • Houses of Worship

Attero Tech unDX2IO Features:

  • 2 balanced XLR mic/line inputs
  • 2 balanced XLR line outputs
  • 802.3af compliant PoE powered to work with anycompliant PoE network switch
  • Three input gains accommodate common line levels,phantom power and dynamic mics. Input gains are adjustable via software on aper input basis+48V Phantom power per channel - powers virtually all types ofphantom powered microphones typically used in installed AV systems
  • ID LED allows easy identification of which unDX2IO Attero Tech’s Unifysoftware is communicating with

Attero Tech unDX2IO Specifications:

  • Mic/Line Input Type: Balanced and RF filtered 3-pindepluggable
  • Phantom Power: +48V, software selectable
  • Mic/Line Gain: 0dB, +25dB, +40dB, software selectable
  • Input Impedance: >1.8K ohms at any gain setting
  • Equivalent Input Noise: -116dBu (+40dB gain)
  • Maximum Input Levels: +12dBu @ 0dB gain, -13dBu @ +25dBgain, -29dBu @ +40dB gain
  • Output Type: Balanced line level with automatic mutingon loss of Dante signal
  • Output Gain: 0dB
  • Output Noise: <-90dBu @ 0dB gain
  • Maximum Output Level: +10dBu
  • System THD: <.01% at any gain, input signal 3dBbelow maximum
  • PoE Class: Class 0 802.3af PoE PD compliant
  • Certifications: FCC Part 15 Class A, CE (EN 55022 ClassA)
  • Dimensions: 3.60” W x 2.75” H x 1.88” D
  • Operating Temperature: 0°C - 40°C
