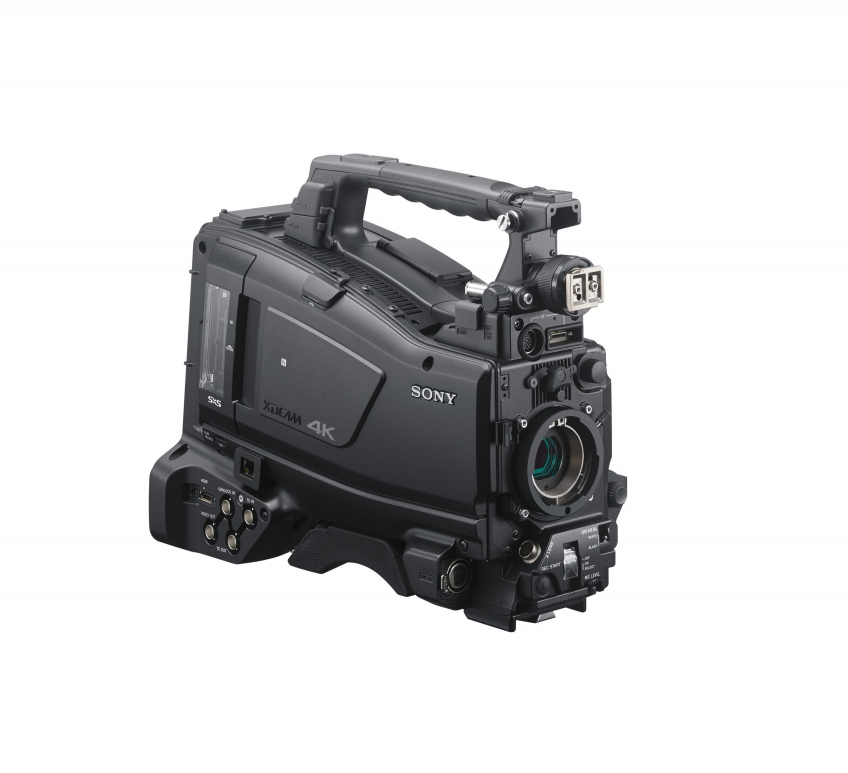

Sony PXW-Z450
XAVC 2/3” Professional Memory Camcorder - Body Only

OUR PART #:  PXW-Z450

The Sony PXW-Z450 is an advanced 4K shoulder camcorder that records 4K QFHD (3840x2160) at 50p/59.94p, as well as a variety of HD formats including XAVC Intra, XAVC Long GOP...
Learn More

Call for price! Not available online.
List Price: $27,100.00

The Sony PXW-Z450 is an advanced 4K shoulder camcorder that records 4K QFHD (3840x2160) at 50p/59.94p, as well as a variety of HD formats including XAVC Intra, XAVC Long GOP, MPEG HD 422 and MPEG HD 420. Thanks to a specially-developed 4K 2/3-type Exmor R CMOS sensor, the PXW-Z450 is ideal for a wide variety of 4K operations, allowing you to use a wide range of commercially-available B4 mount lenses without having to use an adapter. The camcorder offers the same advanced features as the PXW-X400 Full HD camcorder, with exceptional weight balance and low power consumption, alongside excellent networking features such as built-in wireless module, embedded RJ-45 Ethernet 100B-T connector and Near Field Communication (NFC) function for easy Wireless LAN setup and operation via a mobile or tablet with Sony’s Content Browser Mobile™ application.

Sony PXW-Z450 Includes:

  • Shoulder Belt (1)
  • Cold Shoe Kit (1)
  • Lens Mount Cap (1)
  • USB wireless LAN module (IFU-WLM3) (1)
  • Protective Cap (2)
  • Operation Guide (1)
  • Operation Manual (CD-ROM) (1)

Sony PXW-Z450 Features:

  • High quality recordings in 4K QFHD and HD
  • High sensitivity image making
  • Discover Optimized Weight Balance
  • Supports QHD LCD and Full HD OLED viewfinders
  • Embedded RJ-45 connector
  • One-touch wireless LAN connection
  • Built-in wireless module with Content Browser Mobile™
  • Easy network connection
  • Records a second camera’s feed via SDI
  • Lower power consumption

Sony PXW-Z450 Specifications:

  • Camera Section:
    • Built-in Optical Filters: 1: Clear, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND
    • Effective Picture Elements: 3840 (H) x 2160 (V)
    • Gain: -9, -6, -3, 0, 3, 6, 9, 12, 18, 24, 30, 36, 42 dB(TBD)
    • Imaging Device: 2/3-type "Exmor R" 4K CMOS
    • Minimum Illumination: 0.019 lx (F1.4, +42 dB, 16-frame accumulation)
    • S/N Ratio: 61 dB typical (typical, 1920x1080/59.94i mode, Noise Suppression On)
    • Sensitivity (2000 lx, 89.9% reflectance): F10 (typical) (1920 x 1080/59.94i mode or 3840 x 2160/59.94p mode)
    • Sensitivity (2000 lx, 89.9% reflectance): F11 (typical) (1920 x 1080/50i mode or 3840 x 2160/50p mode)
    • Shutter Speed (Time): 59.94i/p, 50i/p: 1/60 sec. to 1/2000 sec. + ECS
    • 29.97p: 1/40 sec. to 1/2000 sec. + ECS
    • 25p: 1/33 sec. to 1/2000 sec. + ECS
    • 23.94p: 1/32 sec. to 1/2000 sec. + ECS
    • Slow & Quick Motion Function: 1080p: Frame rate selectable from 1fps to 60 fps
    • Slow Shutter: 2, 3, 4, 5, 6, 7, 8, 16-frame accumulation
    • White Balance: Preset (3200K), Memory A, Memory B/ATW
  • General:
    • Storage Temperature: -4°F to +140°F
    • Battery Operating Time: Approx. 160 min with BP-FLX75
    • Dimensions (W x H x D): 6 3/4 x 10 5/8 x 13 1/8 inches
    • Mass: Approx. 7 lb 15 oz
    • Operating Temperature: 32° F to 104° F
    • Power Consumption: Approx. 24 W (while XAVC recording, color LCD on)
    • Power Consumption: Approx. 26 W (CBK-VF02 viewfinder, lens, microphone, while XAVC recording, color LCD on)
    • Power Requirements: DC 12 V (11 V to 17.0 V)
    • Recording Formats:
      • XAVC Intra
      • MPEG HD422
      • MPEG HD
      • MPEG IMX
      • DVCAM
  • Inputs/Outputs:
    • Audio Input: CH1/CH2: XLR-type 3-pin (female) (x2), Line/Mic/Mic/+48V selectable LINE: +4, 0, -3 dBu AES/EBU: AES3 compliant MIC: -70 dBu to -30 dBu
    • Audio Output: XLR-type 5-pin, male, +4/0/-3 dBu (balanced)
    • DC Input: XLR-type 4-pin, male, 11 V to 17 V DC
    • DC Output: Round type 4-pin, 11 V to 17 V DC, 1.8 A maximum rated current
    • Genlock Input: BNC (x1), 1.0 Vp-p, 75 O, unbalanced
    • HDMI Output: A type, 19-pin (x1)
    • Headphone Output: Stereo mini jack (x1) -11 dBu reference level output, maximum monitor volume, 16 O load
    • MIC: XLR-type 5-pin, female: -70 dBu to -3 0 dBu
    • Remote: 8-pin
    • SDI Input: SMPTE ST292/ST259 standard compliant, 4-channel audio 1.5G
    • SDI Input: Poolfeed Recording (upto 1080 59.94i)
    • SDI Output: Output 1/2/3/4: BNC (x4), 0.8 Vp-p,
    • Speaker Output: Monaural, 300 mW output
    • Timecode Input: BNC (x1), 0.5 V to 18 Vp-p, 10 kO
    • Timecode Output: BNC, 1.0 Vp-p, 75 O
    • USB: USB 3.0/2.0 4-pin (type A), USB2.0 4-pin (type B), USB2.0 4-pin (type-A)
    • VF: 20-pin IF for HDVF Series Viewfinder, and 26-pin IF for CBK-VF02, HDVF-L750
    • Video Output: BNC, SD analog composite/HD-Y selectable
    • Wireless Receiver IN: D-sub 15-pin Analog CH1: -40 dBu Digital CH1/CH2: -40 dBFS
  • Lens:
    • Lens Mount: Sony 2/3-inch type bayonet mount
  • Monitoring:
    • Built-in LCD Monitor: Color LCD, Screen size: 8.8 cm (3.5 inch) diagonal *3 , Aspect ratio: 16:9, Number of pixels: 960 (H) × 540 (V) for Video display, Audio level, TC, battery and media remaining capacity
