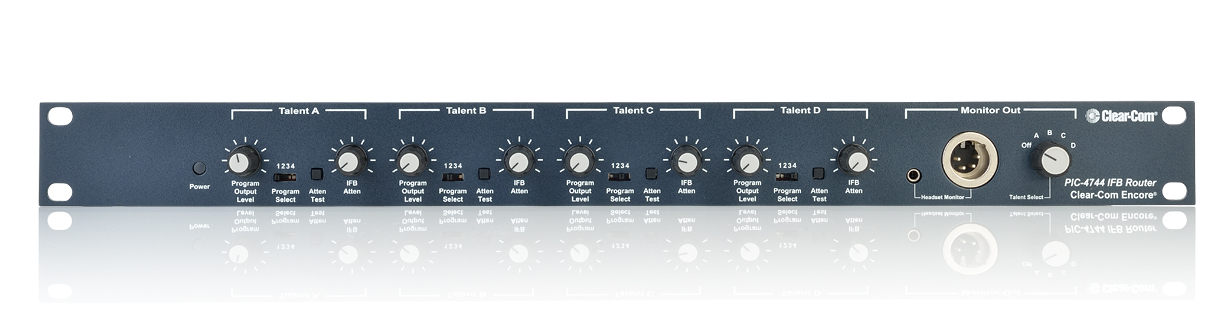

Clear-Com PIC-4744 Encore IFB Controller Router For 4 Talent Position Outputs Image 1
Clear-Com PIC-4744 Encore IFB Controller Router For 4 Talent Position Outputs Image 2
Clear-Com PIC-4744 Encore IFB Controller Router For 4 Talent Position Outputs Image 3
Clear-Com PIC-4744 Encore IFB Controller Router For 4 Talent Position Outputs
Our Price: $1,755.00

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$49/mo* with 36 month financing. ‡
Limited Time. Learn How
Item has an extended delivery time. Please call our Sales Pros for up-to-date information on product availability or alternatives.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Clear-Com's PIC-4744 is an analog partyline controller that provides four XLR3M analog partyline level audio outputs (Talent channels) and four XLR3F analog line level audio inputs (Program channels). Each Talent channel can select and place one of the four program sources to the output. A front panel variable trim pot is supplied for adjusting the source level to the output.

Connections to control stations, typically used for a director to cue talent, are provided for interrupting the source input to the audio output. The PIC-4744 can interrupt the program source with variable attenuation. Each Talent channel carries a composite of three signals; the program audio, the cue audio and the dip or mute control. Plus, multiple PIC-4744 panels can be used together if more than four audio outputs are needed.

Features

  • Wet/Dry switch allows access to 3rd party wireless IFB, console inputs, or recording devices
  • For use with MA-704 and AX-704 Talent Access Stations
  • Multiple PIC-4744 panels can be used together
  • Program attenuation is individually adjustable for each Talent input
  • 3.5mm and XLR Headset Monitor ports

Specifications

  • Program Line Input
    • Maximum Level before Clipping: >= 20 dBu
    • Input Impedance: >= 5K Ohm
  • Audio
    • Output Level for Talent: Clear-Com Partyline Output Level for Talent: Clear-Com Partyline Level (approx. -10dBu)
    • PGM Source Adjustable Range: +20dBu
    • Attenuation Adjustable Range: 50dBu
  • Frequency Response]
    • Panel Input – Talent: 200 – 18KHz +3dB
  • Max Distortion
    • Program Input – Talent: < = 0.1%
  • Noise
    • Program Input - Talent: < -85dBu
  • Power
    • Input Voltage Range: 20-30 VDC
    • Input Current: < = 90mA
  • Rear Panel Connectors
    • IFB Input: (2) XLR6F
    • Power Loop Through: (1) XLR3M, (1) XLR3F
    • Talent Out: (4) XLR3M
    • Program In: (4) XLR3F
    • Wet/Dry Switch: (4)
  • Front Panel Controls and Indicators
    • (1) Power indicator LED
    • (4) Program Output level controls
    • (4) Program Select input switches
    • (4) Attenuation (Atten) test buttons
    • (4) Auto Attenuation (Atten) Adjust level controls
    • (2) Headset Monitor ports (3.5mm and XLR)
    • (1) Monitor select switch
  • Environmental: 32°F - +122°F (0°C - +50°C)
  • Dimensions (W x H x D): 19 x 1.75 x 7.5 in (483 x 44 x 190 mm)
  • Weight: 5.76lbs (2.6kg)
