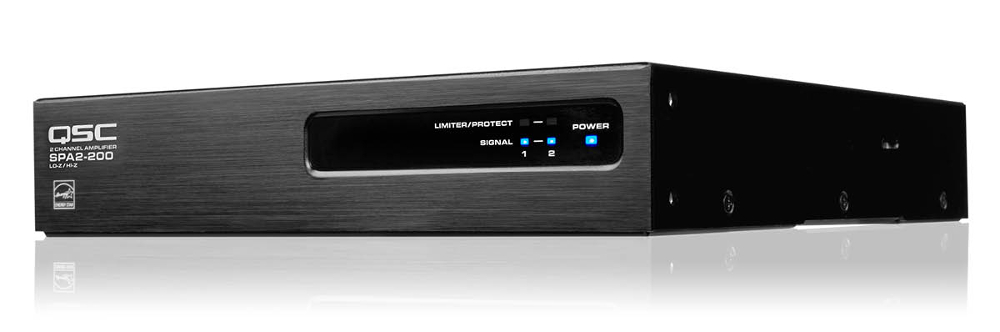

QSC SPA2-200
1/2 RU 2 Channel ENERGY STAR Amplifier

OUR PART #  SPA2-200

Our Price: $600.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

For higher power the QSC SPA2-200 two channel amplifier delivers up to 200 watts rms per channel into 4 or 8 ohms; the two channels can also be bridged providing up to 400 watts rms into 4 or 8 ohms. When the channels are bridged they can be switched into 70V or 100V direct drive mode providing up to 350 watts rms into a mono 70V or 100V output. Like the other SPA models, an 80Hz highpass filter is engaged when in 70V or 100V mode.

QSC SPA2-200 Includes:

  • Power cable
  • Quick Start Guide
  • Connector kit
  • Rack mount ears
  • Mounting brackets

QSC SPA2-200 Features:

  • Up to 200 watts per channel into 4 and 8 ohms — the outputs of the SPA2-200 model are designed to provide up to 200 watts per channel into Low-Z loads.
  • ENERGY STAR® qualified amplifier — The ENERGY STAR qualified SPA amplifiers employ an efficient class-D design to conserve energy and reduce operational cost.
  • Bridgeable outputs for higher power — Bridging the outputs of the SPA2-200 will deliver up to 350 watts into 70V or 100V when bridged.
  • Auto-Ramp provides quiet startup and power-down — The ENERGY STAR auto-ramp circuitry ensures quiet and fast power up from standby and seamless power-down following 25 minutes of inactivity, dramatically reducing power consumption.
  • Rack-mountable 1U, half rack width enclosure — The SPA amplifers can be mounted in 1 RU, 1/2 rack space, and their clever joining brackets enable easy under-table and wall-mounting

QSC SPA2-200 Specifications:

  • Stereo Mode Watter Per Channel
    • 8 Ohm dynamic, both channels driven: 200 W
    • 4 Ohm dynamic, both channels driven: 200 W
  • Bridged Mode, watts per channel
    • 8 Ohm & 4 Ohm: 400 W
    • 70V & 100v: 350 W
    • Signal to Noise (A weighted, 20 Hz-20 kHz): >100 dB
    • Input Sensitivity: 1.23 Vrms (+4 dBu)
    • Maximum Voltage Gain: 25.0 dB
    • Ouput Circuitry: Class D
    • Input Impedance: >10 k Ohm (balanced), >10 k Ohm (unbalanced)
    • Maximum Input Level: 12.3V (+24 dBu)
    • Highpass Filter: Switchable 80 Hz when Bridged in 70V & 100V
    • Front Panel Indicators: Power, per channel Signal, per channel Protect/Limit
    • Controls: 4 Ohm/8 Ohm/70V Bridge Highpass On/100V Bridged Highpass On per channel pair
    • Dimensions (HWD): 1.7" x 8.7" x 9.5" / 1RU (43 x 220 x 241mm  / 1RU)
    • Weight (Net): 4.0 lb (1.4 kg)
    • Weight (Shipping): 6.5 lb (2.5 kg)
    • Agency Approvals: UL, CE, ENERGY STAR, RoHS/WEEE compliant, FCC Class B (Conducted and Radiated emissions), UL 2043 witd PL-Kit

QSC SPA2-200
1/2 RU 2 Channel ENERGY STAR Amplifier

OUR PART #  SPA2-200

Product Information:

For higher power the QSC SPA2-200 two channel amplifier delivers up to 200 watts rms per channel into 4 or 8 ohms; the two channels can also be bridged providing up to 400 watts rms into 4 or 8 ohms. When the channels are bridged they can be switched into 70V or 100V direct drive mode providing up to 350 watts rms into a mono 70V or 100V output. Like the other SPA models, an 80Hz highpass filter is engaged when in 70V or 100V mode.

QSC SPA2-200 Includes:

  • Power cable
  • Quick Start Guide
  • Connector kit
  • Rack mount ears
  • Mounting brackets

QSC SPA2-200 Features:

  • Up to 200 watts per channel into 4 and 8 ohms — the outputs of the SPA2-200 model are designed to provide up to 200 watts per channel into Low-Z loads.
  • ENERGY STAR® qualified amplifier — The ENERGY STAR qualified SPA amplifiers employ an efficient class-D design to conserve energy and reduce operational cost.
  • Bridgeable outputs for higher power — Bridging the outputs of the SPA2-200 will deliver up to 350 watts into 70V or 100V when bridged.
  • Auto-Ramp provides quiet startup and power-down — The ENERGY STAR auto-ramp circuitry ensures quiet and fast power up from standby and seamless power-down following 25 minutes of inactivity, dramatically reducing power consumption.
  • Rack-mountable 1U, half rack width enclosure — The SPA amplifers can be mounted in 1 RU, 1/2 rack space, and their clever joining brackets enable easy under-table and wall-mounting

QSC SPA2-200 Specifications:

  • Stereo Mode Watter Per Channel
    • 8 Ohm dynamic, both channels driven: 200 W
    • 4 Ohm dynamic, both channels driven: 200 W
  • Bridged Mode, watts per channel
    • 8 Ohm & 4 Ohm: 400 W
    • 70V & 100v: 350 W
    • Signal to Noise (A weighted, 20 Hz-20 kHz): >100 dB
    • Input Sensitivity: 1.23 Vrms (+4 dBu)
    • Maximum Voltage Gain: 25.0 dB
    • Ouput Circuitry: Class D
    • Input Impedance: >10 k Ohm (balanced), >10 k Ohm (unbalanced)
    • Maximum Input Level: 12.3V (+24 dBu)
    • Highpass Filter: Switchable 80 Hz when Bridged in 70V & 100V
    • Front Panel Indicators: Power, per channel Signal, per channel Protect/Limit
    • Controls: 4 Ohm/8 Ohm/70V Bridge Highpass On/100V Bridged Highpass On per channel pair
    • Dimensions (HWD): 1.7" x 8.7" x 9.5" / 1RU (43 x 220 x 241mm  / 1RU)
    • Weight (Net): 4.0 lb (1.4 kg)
    • Weight (Shipping): 6.5 lb (2.5 kg)
    • Agency Approvals: UL, CE, ENERGY STAR, RoHS/WEEE compliant, FCC Class B (Conducted and Radiated emissions), UL 2043 witd PL-Kit
