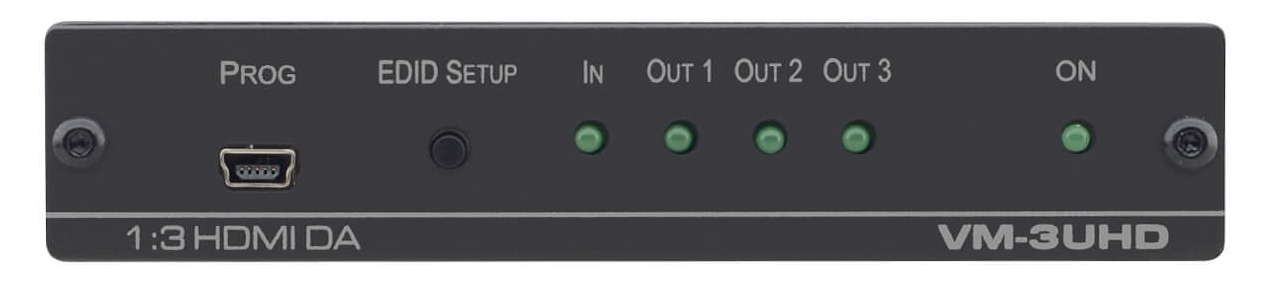

Kramer VM-3UHD
1:3 4K HDMI Distribution Amplifier

OUR PART #:  VM-3UHD

A 4K UHD 1:3 distributor for HDMI signals, Kramer's VM-3UHD takes (1) HDMI input, equalizes and reclocks the signal, and distributes it to (3) identical outputs.
Learn More
Our Price: $372.00
List Price: $465.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer VM-3UHD
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

A 4K UHD 1:3 distributor for HDMI signals, Kramer's VM-3UHD takes (1) HDMI input, equalizes and reclocks the signal, and distributes it to (3) identical outputs. It distributes signals with resolutions up to 4K @60 UHD (4:2:0), WUXGA, and 1080p.

Kramer VM-3UHD Features:

  • Max. Data Rate — 10.2Gbps (3.4Gbps per graphic channel).
  • Resolution Support — Up to WUXGA, 1080p, 4K @60 UHD (4:2:0).
  • HDMI Support — Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS–HD, CEC.
  • HDCP Compliance.
  • Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal integrity to travel longer distances.
  • I–EDIDPro™ Kramer Intelligent EDID Processing™ — An intelligent EDID handling and processing algorithm that ensures Plug and Play operation for HDMI systems.
  • Default EDID — For fast and efficient connection of the unit.
  • 3D Pass–Through.
  • USB Port — For firmware upgrading.
  • Includes Power supply

Kramer VM-3UHD Specifications:

  • Input: 1 HDMI connector
  • Outputs: 3 HDMI connectors
  • Port: 1 USB for firmware upgrade
  • Max. Data Rate: 10.2Gbps (3.4Gbps per graphic channel)
  • Compliance With HDMI Standard: Supports HDMI and HDCP
  • Controls: EDID Setup button
  • Indicator Leds: IN, OUT 1 to 3 LEDs
  • Environment:
    • Operating Temperature: 32° to 104°F (0° to +40°C)
    • Storage Temperature: –40° to 158°F (–40° to +70°C)
    • Humidity: 10% to 90%, RHL non–condensing
  • Power Consumption: 5V DC, 800mA
  • Physical:
    • Product Dimension: 4.72" W x 2.81" D x 0.96" H (12.00 x 7.15 x 2.44cm)
    • Product Weight: approx 0.4 lb (0.2 kg)
    • Shipping Dimension: 6.18" W x 4.72" D x 3.43" H (15.70 x 12.00 x 8.70cm)
    • Shipping Weight: approx 1.8 lbs (0.8 kg)
