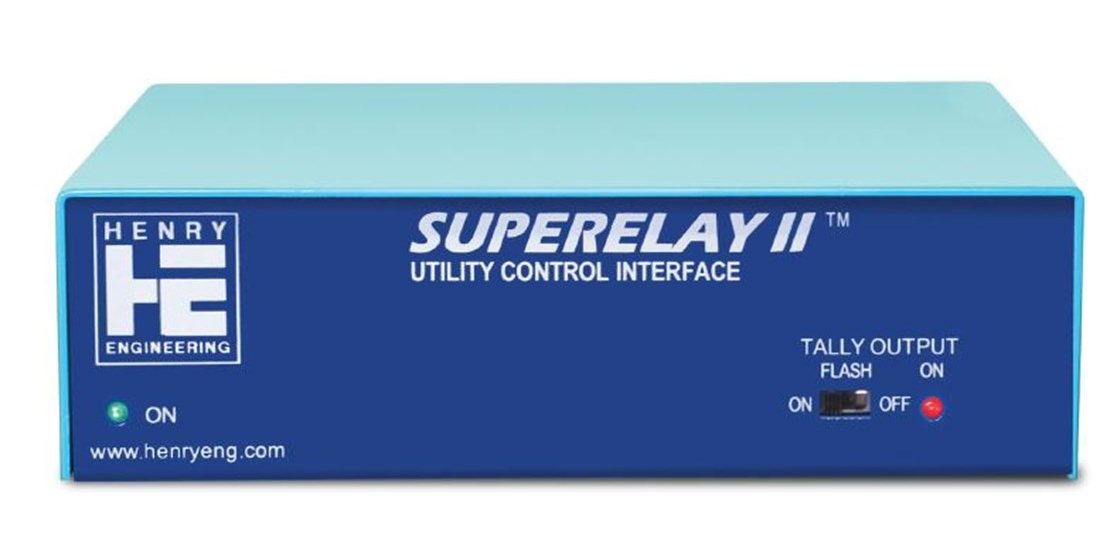

Henry Engineering SUPERELAY-II
LED Tally Light and Utility Control Interface

OUR PART #:  SUPERELAY-II

The Henry Engineering Superelay II is the updated version of Superelay! This new version now has an output for LED Tally Lights.
Learn More
Our Price: $320.25
List Price: $350.00
You save 9%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Henry Engineering SUPERELAY-II
Qty:
In Stock

Similar Products

The Henry Engineering Superelay II is the updated version of Superelay! This new version now has an output for LED Tally Lights. It will directly drive low-voltage Tally lights with up to 300ma of current.

Superelay II is a multi-circuit controller for any application where numerous circuits, including AC line voltage, need to be switched simultaneously. It is ideal for controlling On The Air tally lights and switching the various equipment functions that need to be controlled when, for example, the microphone in a broadcasting studio is turned on.

Superelay II provides six isolated SPDT relay outputs, plus AC and DC Tally Light output that can be set to flash. The AC Tally Light output can supply up to 200 watts of line voltage, and is switched with a synchronous solid-state relay to prevent electrical noise or arcing. The DC Tally Light output can supply up to 300mA at 12V DC; it can also "sink" up to 1A of currant if used with an external power source. All relay and Tally Lights outputs switch simultaneously.

Superelay II can be controlled with an external DC voltage (5-24 volts), a momentary or continuous contact closure, or any circuit that switches to ground. Control inputs and relay outputs are via plug-in Euroblock connectors. A front panel LED indicates Tally on/off status. A Slave output permits multiple Superelay II units can operate in tandem from a common Control input.

Superelay II is 1/3 rack width and can be mounted in an optional rack shelf, or wall mounted with optional wall/cabinet mounting brackets.

Henry Engineering Superelay II Specifications:

  • Control Inputs:
    • ON: Mom. or cont. contact closure
    • OFF: Mom. or cont. contact closure
    • DC: 5-24VDC, maintained
  • Outputs:
    • Relays: 6 form-C (SPDT), 1A, 24V DC max.
    • AC Tally Light: AC Line Voltage, 200W max. DC Tally Light: 12 V DC, 300mA max/1A current sink max.
  • Connections:
    • Control inputs, relay & DC outputs: euroblocks
    • AC Tally Light: Grounded AC receptacle
  • Power Input: 115/230V AC, 50-60Hz, 4W + Tally load
  • Construction: Steel enclosure
  • Physical: 5.7”w X 1.7”h X 6.0”d, 3lbs
  • Mounting: Table top, optional rack mount shelf, optional wall/cabinet mounting bracket
