JBL CSA 2300Z 2x300W Drivecore Amplifier, 70V/100V, 2U Full-Rack

OUR PART #: CSA2300Z MFR #: NCSA2300Z-0-US

Copied to clipboard

Years of innovation, insight and invention from HARMAN brands have all combined to bring about the JBL® Commercial Series Amplifiers (CSA). ...Read more

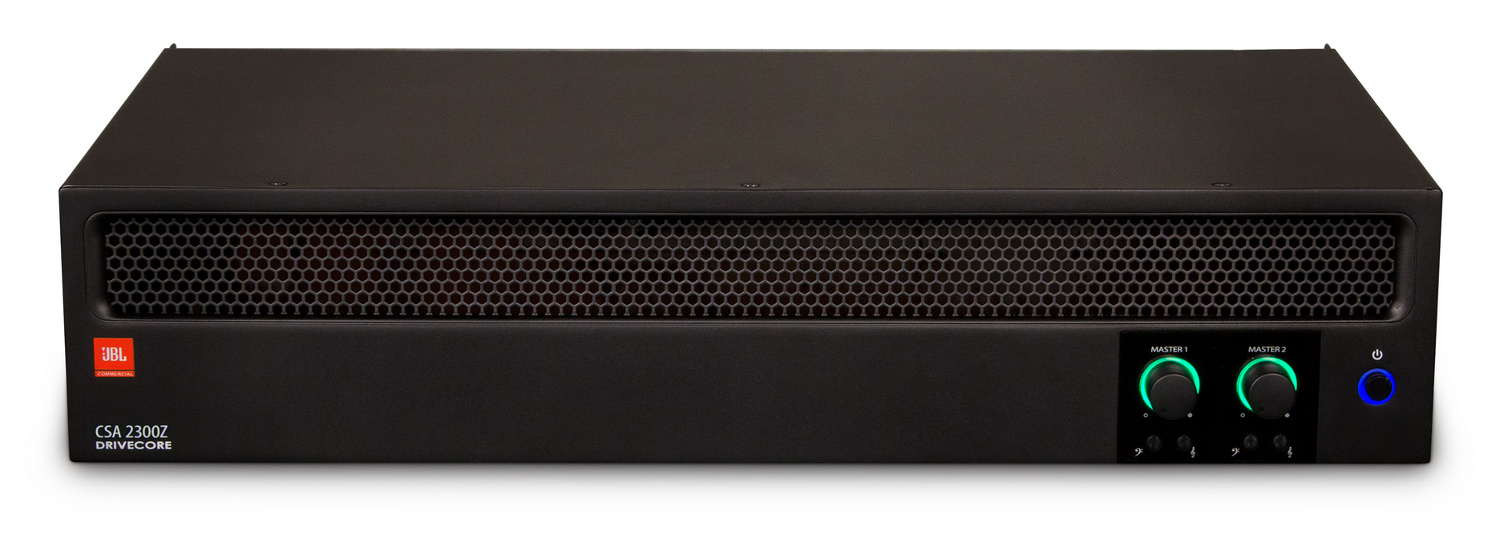

JBL CSA 2300Z 2x300W Drivecore Amplifier, 70V/100V, 2U Full-Rack Image 1
JBL CSA 2300Z 2x300W Drivecore Amplifier, 70V/100V, 2U Full-Rack Image 2
JBL CSA 2300Z 2x300W Drivecore Amplifier, 70V/100V, 2U Full-Rack
Our Price: $871.00
List Price: $1,083.41
You save 20%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$25/mo* with 36 month financing. ‡
Limited Time. Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Years of innovation, insight and invention from HARMAN brands have all combined to bring about the JBL® Commercial Series Amplifiers (CSA). Simple to configure, the CSA 2300Z amp delivers a DriveCore-based sound solution, replacing up to 500 parts with a single small chip, thus significantly reducing the part count while increasing reliability, and maintaining superb performance.

Crown DriveCore™ Technology

Going well beyond the expected in generating powerful sound, the performance efficiency of Crown’s DriveCore Technology continues to set the bar in commercial power amplifier technology. Supporting 70 V and 100 V installations right out of the box, CS amps include RJ45 connectors for use with JBL CSR-V in-wall volume controls (sold separately). And with HARMAN’s GreenEdge™ environmental initiative, this series of amps quickly pay for themselves in energy savings.

Features

  • Energy-efficient, Space-saving 2U design
  • (2) output channels x 300 W output
  • Sleek industrial look with illuminated knob rings
  • Supports JBL CSR-V wall controller (sold separately) via CAT5 cable with RJ45 connectors

Specifications

  • Rated Power: 300 W
  • Number of Output Channels: 2
  • Insertion Loss: 1 dB maximum
  • Frequency Response: +/- 1/0 dB
  • Total Harmonic Distortion: < 0.5%
  • Signal-to-Noise Ratio: > 97 dB
  • Max Input Level: + 22 dBu (Nominal)
  • Crosstalk: < -70 dB
  • Operating Temperature/Humidity: 0 °C to 35 °C @ 95% R.H
  • Storage Temperature: -20 °C to 85 °C
  • Dimensions (W x D x H): 17.0" x 10.8" x 3.5" (432 x 274 x 89mm)
  • Shipping Weight: 20.6 lbs.
  • Note: further specifications and information can be found within the items located under the "Documentation" tab above.
