Product Overview

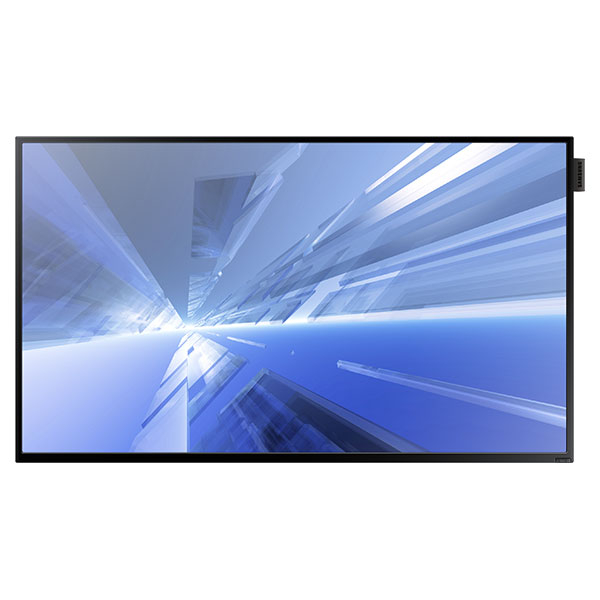

The Samsung DB32E 32" Slim Direct-Lit display offers advanced display technology in an affordable fashion. Deliver an outstanding visual experience with Full HD resolution on the 32" screen and a sleek, industrial design. A powerful CPU delivers accelerated performance, while a full range of connectivity inputs offer flexible content options.
Samsung DB32E Includes:
- Quick Setup Guide
- Regulatory Guide
- Warranty Card
- D-Sub cable
- Power Cord
- Remote Controller
- Batteries
- RS232C(IN) adapter
- Cover-Jack
- Screw (M3L8, 1EA) (M4L8, 4EA)
Samsung DB32E Features:
- Enhanced System-on-Chip Performance with a Quad Core CPU
- Sleek Industrial Design with a 10.5mm Bezel and Ultra-Slim 2.0" Chassis
- Built-In Wi-Fi® for Expanded Connectivity
- Transform Your Display with an Optional Touch Overlay for a PC-Less Touch Solution
Samsung DB32E Specifications:
- Series Name: DB-E Series
- Display:
- Screen Size: 32"
- Panel Technology: 60Hz D-LED BLU
- Resolution: 1920x1080
- Aspect Ratio: 16:9
- Brightness: 350nit
- Contrast Ratio (Typical): 5000:1
- Viewing Angle (H/V): 178:178
- Response Time: 8ms
- Connectivity:
- Input: Analog D-SUB, DVI-D(HDMI Common), HDMI1 Component(CVBS Common), Stereo mini Jack, USB 2.0 x 1
- Output: Stereo mini Jack
- External Control: RS232C(in/out) thru stereo jack, RJ45
- Sensor: IR, Ambient Light
- Power:
- Power Supply: AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
- Power Consumption (Typical/Max): 30W / 77W
- Power Consumption (Standby): less than 0.5W
- SMART Signage Platform: Yes
- Built-in Tuner: Yes
- Media Player Type: Cortex-A9 1GHz Quad Core CPU, 1.5GB, DDR3, 8GB, USB 2.0, Linux OS
- Dimensions:
- Without Stand (WxHxD): 28.4" x 16.5" x 2"
- Packaging (WxHxD): 32.1" x 19.3" x 5.2"
- Bezel Width: 10.5mm (Top/Side), 15mm (Bottom)
- Weight:
- Product Weight: 10.6 lb.
- Package Weight: 13 lb.
- Standard Warranty: 3 years onsite parts/labor
- RoHS Compliant: Yes
- Emission Standard: EMC
- Packaging Recyclability: Yes, Packing Materials
- VESA Mount: 200*200mm
- Operation:
- Operating Temperature: 0°C 40°C
- Operating Humidity: 10~80%
