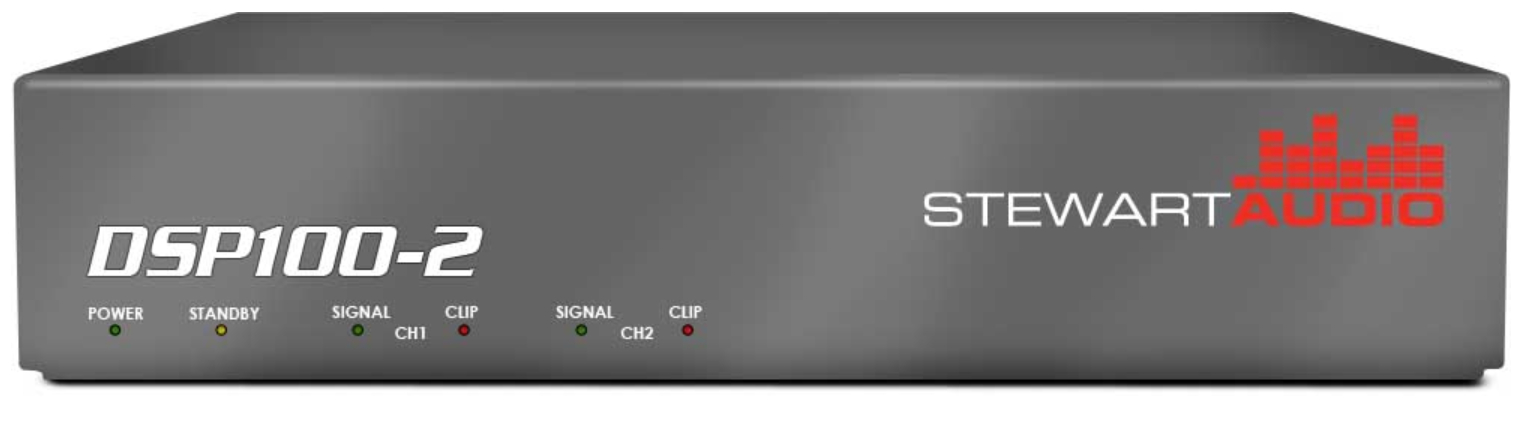

Stewart Audio DSP100-2-CV
2 Channel DSP-Enabled Amplifier, 2 x 100W @ 70V/100V

OUR PART #  DSP100-2-CV

Our Price: $609.00
List Price: $719.00
You save 15%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Stewart Audio DSP100-2-CV is an affordable, 2 channel, 70V/100V, 1/2 rack amplifier delivering 100W per channel with built in DSP and remote volume control. This amplifier is designed to optimize sound quality for small and medium zones to fit a broad range of applications.

Applications:

  • Network Audio
  • Hospitality Installations
  • Board Rooms
  • Classrooms
  • Conference Rooms
  • Houses of Worship
  • Remote locations
  • Distributed or centralized venues

Stewart Audio DSP100-2-CV Features:

  • Onboard full featured DSP
  • Configurable via USB port
  • Convection cooled, 1/2 rack enclosure
  • 2 balanced + 2 RCA analog line/mic inputs
  • Not Dante Networked
  • Remote Volume Control
  • Made in the USA

Stewart Audio DSP100-2-CV Specifications:

  • Output Power: 100W x 2 @ 70V / 100V
  • Frequency Response: 100 Hz - 20kHz
  • THD+N: <.1% @ Full Power
  • Signal-to-Noise Ratio: >100dB
  • Input Sensitivity: 1V (0 dBV)
  • Input impedance (Balanced/Unbalanced): 7.2K Ohms/3.6KOhms
  • Amplifier Class: D
  • Input Connectors: 3.5mm Euroblock and RCA
  • Output Connectors: 5mm Euroblock
  • LED Indicators: Power, Standby, Signal, and Clip
  • Controls: USB for programming, Remote Volume, TrimKnobs
  • Power Supply Input: 110/240 VAC 50/60Hz (Universal Input)
  • Cooling: Convection–Cooling (No Fans)
  • Construction: Aluminum Chassis
  • Mounting: Rack-Mountable
  • Dimensions (height, width, depth): 1.7”H x 8.4”W x10.7”D
  • Weight: 4.5lbs max (varies by model)
  • Warranty: 3 years

Stewart Audio DSP100-2-CV
2 Channel DSP-Enabled Amplifier, 2 x 100W @ 70V/100V

OUR PART #  DSP100-2-CV

Product Information:

The Stewart Audio DSP100-2-CV is an affordable, 2 channel, 70V/100V, 1/2 rack amplifier delivering 100W per channel with built in DSP and remote volume control. This amplifier is designed to optimize sound quality for small and medium zones to fit a broad range of applications.

Applications:

  • Network Audio
  • Hospitality Installations
  • Board Rooms
  • Classrooms
  • Conference Rooms
  • Houses of Worship
  • Remote locations
  • Distributed or centralized venues

Stewart Audio DSP100-2-CV Features:

  • Onboard full featured DSP
  • Configurable via USB port
  • Convection cooled, 1/2 rack enclosure
  • 2 balanced + 2 RCA analog line/mic inputs
  • Not Dante Networked
  • Remote Volume Control
  • Made in the USA

Stewart Audio DSP100-2-CV Specifications:

  • Output Power: 100W x 2 @ 70V / 100V
  • Frequency Response: 100 Hz - 20kHz
  • THD+N: <.1% @ Full Power
  • Signal-to-Noise Ratio: >100dB
  • Input Sensitivity: 1V (0 dBV)
  • Input impedance (Balanced/Unbalanced): 7.2K Ohms/3.6KOhms
  • Amplifier Class: D
  • Input Connectors: 3.5mm Euroblock and RCA
  • Output Connectors: 5mm Euroblock
  • LED Indicators: Power, Standby, Signal, and Clip
  • Controls: USB for programming, Remote Volume, TrimKnobs
  • Power Supply Input: 110/240 VAC 50/60Hz (Universal Input)
  • Cooling: Convection–Cooling (No Fans)
  • Construction: Aluminum Chassis
  • Mounting: Rack-Mountable
  • Dimensions (height, width, depth): 1.7”H x 8.4”W x10.7”D
  • Weight: 4.5lbs max (varies by model)
  • Warranty: 3 years
