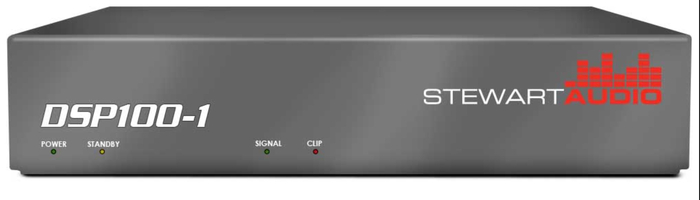

Stewart Audio DSP100-1-CV
DSP Processor 100w 70v/100v

OUR PART #:  DSP100-1-CV

The Stewart Audio DSP100-1-CV is a mono DSP-enabled amplifier,  1 x 100W @ 70V/100V.
Learn More
Our Price: $469.00
List Price: $559.00
You save 16%!
Write the first review.
Stewart Audio DSP100-1-CV
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Stewart Audio DSP100-1-CV is a mono DSP-enabled amplifier,  1 x 100W @ 70V/100V.

The DSP100-1-CV is an affordable amplifier with fully integrated DSP designed optimize the speakers and acoustical limitations of a zone. The DSP100-1-CV provides 100W audio power @ 70/100V. The robust, full function DSP includes full cross-point mixer, EQ, filters, limiters, and more. A USB port makes programing simple, fast and repeatable for large installations. The remote volume control operates with a wide range of devices. You won't find a more cost effective way to bring outstanding sound quality to a zone on the market today.

Stewart Audio DSP100-1-CV Applications:

  • Network Audio
  • Hospitality Installations
  • Board Rooms
  • Classrooms
  • Conference Rooms
  • Houses of Worship
  • Remote locations
  • Distributed or centralized venues

Stewart Audio DSP100-1-CV Features:

  • Onboard full featured DSP
  • Configurable via USB port
  • Convection cooled, 1/2 rack enclosure
  • 2 balanced + 2 RCA analog line/mic inputs
  • Remote Volume Control
  • Made in the USA

Stewart Audio DSP100-1-CV Specifications:

  • Output Power: 100W x 1 @ 70V / 100V
  • Frequency Response: 100 Hz - 20kHz
  • THD+N: <.1% @ Full Power
  • Signal-to-Noise Ratio: >100dB
  • Input Sensitivity: 1V (0 dBV)
  • Input impedance (Balanced/Unbalanced): 7.2K Ohms/3.6KOhms
  • Amplifier Class: D
  • Input Connectors: 3.5mm Euroblock and RCA
  • Output Connectors: 5mm Euroblock
  • Controls: USB for programming, Remote Volume, TrimKnobs
  • Power Supply Input: 110/240 VAC 50/60Hz (UniversalInput)
  • Cooling: Convection–Cooling (No Fans)
  • Construction: Aluminum Chassis
  • Mounting: Rack-Mountable
  • Dimensions (height x width x depth): 1.7 x 8.4 x10.7”
  • Weight: 4.5lbs max (varies by model)
  • Warranty: 3 years
