Chief Manufacturing PDR2000B

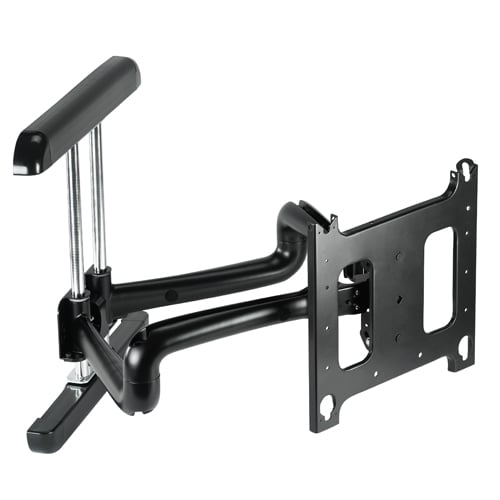

Large Swing Arm Wall Mount (without interface), Black

OUR PART #:  PDR2000B

Chief's PDR2000B swing arm mount extends 37" for ideal viewing from any angle. This black wall mount is compatible with 42" to 71" displays.
Learn More

Add to Cart to See Price

Write the first review.
Chief Manufacturing PDR2000B
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Chief's PDR2000B swing arm mount extends 37" for ideal viewing from any angle. This black wall mount is compatible with 42" to 71" displays.

Chief Manufacturing PDR2000B Large Swing Arm Wall Mount Features:

  • Centris Technology tilt mechanism adjusts to provide fingertip tilt with most flat panels
  • Post-installation height adjustment up to 1" (25 mm) for ultimate installation flexibility
  • Q-Latch Mounting System secures flat panel to mount with a latching flag
  • Extends 37" (93.98 cm) for viewing from any angle, and remains low-profile in home position
  • CableTrac System provides built-in cable management channels inside the arms for a clean installation
  • Screen can be installed in portrait or landscape orientation (Chief's PAC400 (sold separately) can be used to rotate without removing the screen)

Chief Manufacturing PDR2000B Large Swing Arm Wall Mount Specifications:

  • Certifications: UL Listed
  • Color: Black
  • Lateral Shift: 9" (229 mm)
  • Manual Height Adjustment: 1
  • Maximum Extension: 37" (939.8 mm)
  • Minimum Depth: 3.4" (86.4 mm)
  • Mounting Pattern Compatibility (Universal Versions): 200 x 200 mm - 862 x 517 mm
  • Notes: Depth and Extension do not include interface bracket (adds 0.5" -1.5")
  • Orientation: Landscape, Portrait
  • Overall Dimensions: 22" H x 39.5" W x 3.4" D (560 x 1003 x 86 mm)
  • Post-Installation Leveling (Roll): Yes
  • Shipping Weight: 63 lbs
  • Tilt: + 5┬░, - 16┬░
  • Typical Screen Sizes: 42" - 71"
  • Wall Stud Compatibility: 16"
  • Weight Capacity: 200 lbs (90.7 kg)
