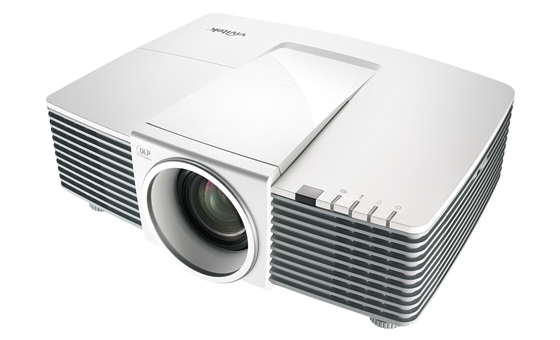

Vivitek DW3321
5,100 Lumens WXGA DLP Projector

OUR PART #  DW3321

Call for price! Not available online.

The Vivitek DW3321 delivers great features and performance along with great installation versatility. The 5,100 ANSI lumens make it bright enough for larger screens, and the wide screen WXGA native image resolution ensures that your content will be delivered with fidelity and sufficient detail for a wide range of applications. It has a 1.32 - 2.24:1 Throw Ratio that makes it possible to install it at a wide variety of distances, which makes installation planning easier, whether you're replacing an older projector or starting a new installation. Its 1.7x zoom range, as well as horizontal and vertical lens shift offers even further installation flexibility. It also comes equipped with 3D, JPG reader, and HDBaseT, which ensures the projector can handle modern signal inputs and contains features customers have come to expect.

Vivitek DW3321 Includes:

  • DW3321 unit
  • VGA Cable
  • User Manual (CD)
  • Quick Start Guide
  • Warranty Card (by region)
  • Remote Controller (with battery)
  • AC Power Cord

Vivitek DW3321 Key Features:

  • DLP® technology with BrilliantColor™ for vibrant and rich picture quality
  • 5,100 ANSI lumens of brightness, WXGA resolution, and 10,000:1 contrast ratio for clear, crisp and bright projection
  • Great flexibility with 1.7x zoom centered lens and manual horizontal and vertical lens shift
  • Easy image adjustment for keystone, curved screen, and individual corner corrections
  • Pincushion or barrel distortions are easily corrected when projecting onto a curved screen
  • HDBaseT interface for HD video and audio over standard CAT5e/6 LAN cable
  • 2x 7W speakers and microphone input ensure you are clearly heard
  • Integrated network monitoring and management solutions including Crestron® RoomView™, Extron, and more
  • DICOM Simulation Mode for medical training and seminars
  • Onboard 12V trigger for screen or blinds control
  • MHL device compatibility for streaming of video and audio content from a compatible mobile device
  • PC-Free presentation using JPG picture reader from USB thumb drive

Vivitek DW3321 Specifications:

  • Native Resolution: WXGA (1280 x 800)
  • Brightness: 5100 ANSI Lumens
  • Contrast Ratio: 10,000:1
  • Max. Supported Resolution: WUXGA (1920 x 1200) @60Hz
  • Native Aspect Ratio: 16:10
  • Lamp Life and Type: 1,500 / 3,500 Hours (Normal / Eco. Mode), 370W/280W
  • Display Type: Single chip DLP® Technology by Texas Instruments
  • Chip Size: 0.65" DMD
  • Throw Ratio: 1.32 - 2.24:1
  • Image Size (Diagonal): 21" - 351"
  • Projection Distance: 1 - 10m
  • Projection Lens: F = 2.45 - 3.22, f = 18.8 - 32 mm
  • Zoom Ratio: 1.7x
  • Lens Shift (Based on Full Image Height): Vertical +23.7%, -12.7%; Horizontal +/-10.9%
  • Offset (Based on Full Image Height): 105% - 141%
  • Keystone Correction Vertical: +/-30° ; Horizontal: +/-25°
  • Speakers: 7W x2
  • Video Compatibility: SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N) SECAM (B,D,G,K,K1,L)
  • I/O Connection Ports :
    • VGA-In (15-pin D-Sub) (x2)
    • HDMI (x2: HDMI/MHLx1, HDMIx1)
    • DVI-D
    • Component (5 BNC) (RGBHV)
    • S-Video
    • Composite Video
    • Audio-In (RCA)
    • Audio-In (Mini-Jack) (x3)
    • VGA-Out (15-pin D-Sub)
    • Audio-Out (RCA)
    • Audio-Out (Mini-Jack)
    • RJ45 (x2: LANx1, HDBaseTx1)
    • 12v Trigger
    • RS-232
    • 3D-Sync
    • USB type A for Display (Frame display) and JPG reader (Photo: Jpeg / Video: Mpeg4, H.264) (yes (JPG Reader Only)), USB A (x2: WIFI Dongle or JPEG Reader), USB miniB (USB Display), USB B (Service), Microphone (Mini-Jack), Remote Jack (wire remote)
  • Physical:
    • Dimensions: approx. 17.5" W x 13" D x 6.5" H (445 x 331 x 162mm)
    • Weight: approx. 18.5 lbs (8.4 kg)
  • Noise Level: 36dB / 33dB (Normal / Eco. Mode)
  • Power Supply: AC 100-240V, 50/60Hz Consumption: 380W (Eco. Mode), 480W (Normal Mode), <0.5W (Standby)
  • 3D Ready (DLP link, PC+Video): Yes
  • Wireless: Yes
  • Warranty: Standard Warranty: 3 years projector / 1 year on lamp or 1000 hours whichever comes first
  • UPC Code: 81309702032 1
