Liberty AV Solutions E-MVGAMAM-M

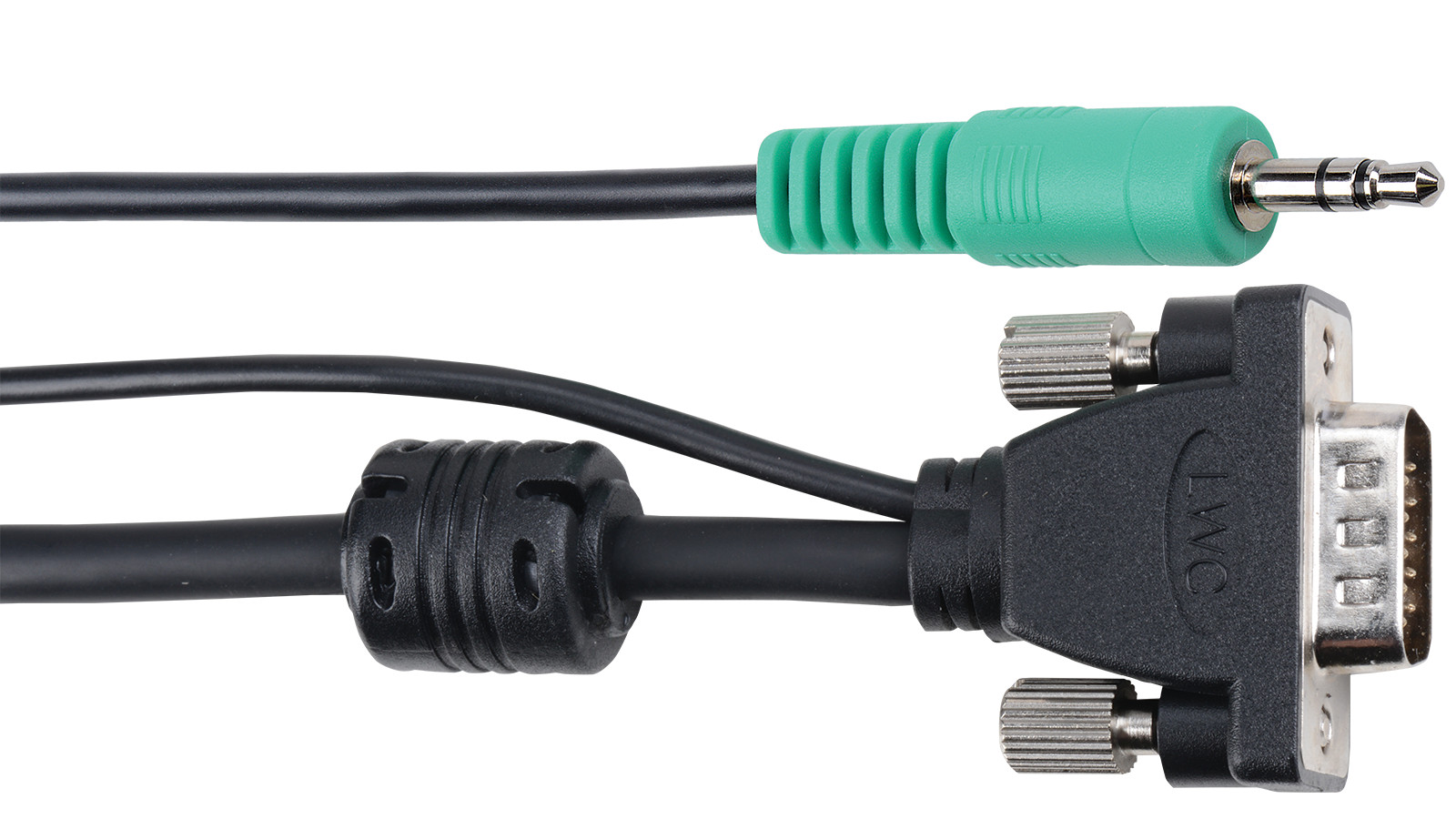

3 ft VGA EDID Compliant Cable with PC Stereo Audio

OUR PART #:  E-MVGAMAM-M-3

Liberty AV Solutions' E-MVGAMAM-M cable is designed to be used in tabletop, podium, and presentation system applications.
Learn More
Our Price: $16.45
List Price: $18.28
You save 10%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Liberty AV Solutions E-MVGAMAM-M
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Liberty AV Solutions' E-MVGAMAM-M cable is designed to be used in tabletop, podium, and presentation system applications. A very flexible UL listed cable to permit sharp bends and constant movement, this product is well-suited to interface mobile content users with laptops to the video infrastructure. The audio lead is purposefully longer at 22" for the source side, this is especially helpful when the audio jack is on the opposite side of the video jack.

The cable is a miniature coaxial cable design; the attenuation on 32 AWG coaxial cables is such that Liberty AV only warrants 1920 x1200 WUXGA to 25 feet. Care must be exercised if using this product to interface to passive wall plates and panel junctions as the loss budget could be exceeded by the combination of passive plates and cable attenuation issues. It is recommended the primary use be to patch a source to a display interface, extension device, or active switch. This product is not permitted to be run in a concealed location (in-wall) per the NEC® unless it is in conduit.

The Micro sized molding on the VGA connectors is substantially smaller than a standard molded VGA connector. The molding measures 1.09" from front of molding to back of strain relief. A standard VGA mold can measure 2" from front to back. The micro cable is only 0.200" in diameter.

Liberty AV Solutions E-MVGAMAM-M-3 Applications:

  • Conference Room
  • Classroom
  • Podium/Presentation

Liberty AV Solutions E-MVGAMAM-M-3 Features:

  • Smaller low profile molding
  • VGA with stereo audio
  • Long audio lead on source side
  • Tabletop and podium applications
  • Flexible cable
  • Micro-Sized Molding and Cable for small OD and flexibility
  • DE15 Male Plug to DE15 Male Plug Video Connectivity
  • 3.5mm Male Plug to 3.5mm Male Plug Stereo Audio
  • Video and Sync on 32 AWG high resolution coaxial cables
  • ID Bit communications and EDID Pin 9 on 28 AWG cabling
  • Full 15-Pin VESA EDID and ID/DDC Compliance
  • Double Shielded foil and braid overall shield
  • Ferrite Beads for EMI Compliance
  • Thumbscrew for ease of installation and retention
  • 8" & 22" Audio leads for routing ease and convenience
  • UL AWM 20276, CSA Type AWM I/II A/BFT4, RoHS Compliant

Liberty AV Solutions E-MVGAMAM-M-3 Specifications:

  • I/O Connections:
    • VGA: Male DE series 15 pin High Density connectors
    • Analog Audio: 3.5 mm TRS plug
  • VGA + 3.5mm Supported Video and Audio:
    • VGA Maximum Supported Video Resolution: Up to 1920x1200@75Hz up to 25 feet
    • Analog Audio Support: Up to 48 kHz sampling rate
    • VESA: Full EDID ID/DDC Plug and Play with pin 9 connected
  • Cable Construction:
    • VGA Connector Material: Molded PVC
    • VGA Connector Dimensions: 33 x 14 x 28 mm
    • Analog Audio Connector Material: Molded PVC
    • Analog Audio Connector Dimensions: 10.3 mm diameter, 36.75 mm length with strain relief included
    • Jacket Material Flexible PVC: Cable Construction Copper, 32 AWG RGB coaxial and 30 AWG sync and ID-Bit
    • Overall Cable Size: 5 mm diameter
    • Shielding: Dual foil and tinned copper braid serve shields
    • Minimum Bend Radius: 50 mm
    • Maximum Tensile Load: 10 kg
  • Environmental Requirements:
    • Operating Temperature: 0°C to +50°C (+32°F to +122°F)
    • Operating Humidity: 20% to 85%, Non-condensing Storage Temperature -30°C to +50°C (-22°F to +122°F)
    • Storage Humidity: 20% to 85%, Non-condensing
  • Power and Regulatory:
    • Regulatory: AWM 20276 80°C 30V VW-1, RoHS
