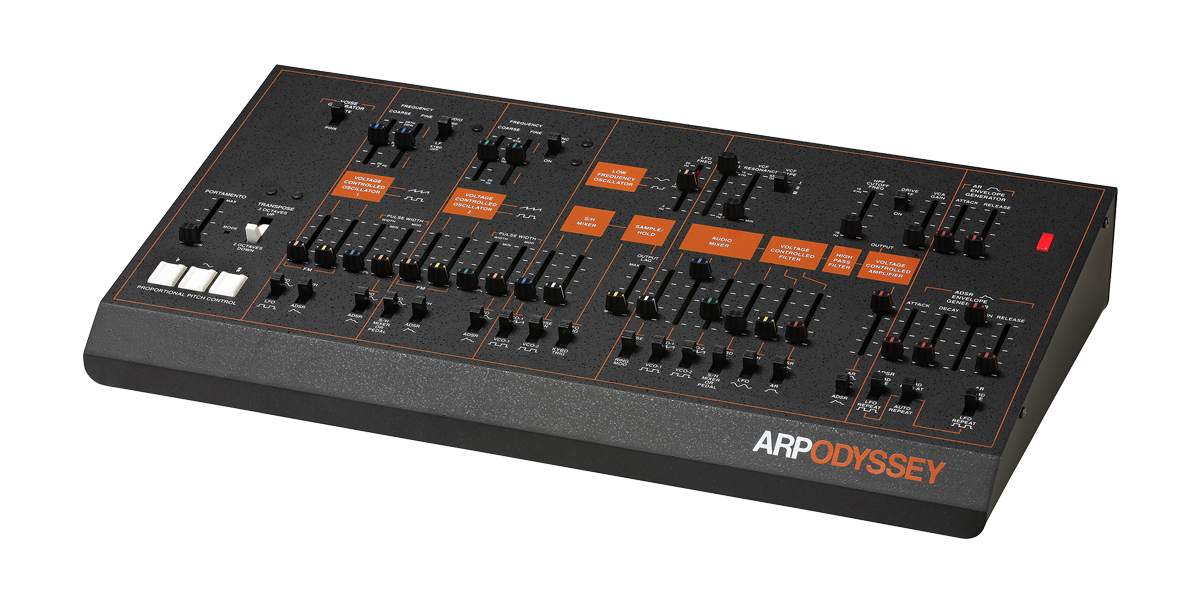

Korg ARP ODYSSEY Module
Rev3 Duophonic Synthesizer - Black and Orange

OUR PART #:  ARPMODULE3

The KORG ARP ODYSSEY Synthesizer Module is a complete reproduction of the ARP Odyssey's original circuitry.
Learn More
Our Price: $599.99
List Price: $840.00
You save 29%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Korg ARP ODYSSEY Module
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The KORG ARP ODYSSEY Synthesizer Module is a complete reproduction of the ARP Odyssey's original circuitry. The keyboard-less module uses the same analog synthesis circuitry in a compact module form and is available in two models: The White Rev1 and the black and orange Rev3.

By adding the ARP ODYSSEY Module to a DAW setup users can enhance their production with powerful analog sound that cannot be obtained from any plugin. Keyboard players can even connect the ARP ODYSSEY Module via MIDI to their favorite keyboard.

KORG ARP ODYSSEY Module Specifications:

  • Maximum Polyphony: 2 voices for duphonic; normally monophonic
  • Controllers
    • Transpose Positions: 2 octaves down, normal, 2 octave up
    • Proportional Pitch Control:
      • b (Pitch down) Pad: about -2 / 3 octave
      • - (Modulation) Pad
      • # (Pitch-up) Pad: about +2 / 3 octave
  • Noise Generator: Noise Spectrum Types (white and pink)
  • Portamento
    • Maximum Speed: about 0.01 msec./oct
    • Minimum Speed: about 1.5 sec./oct
  • VCO (Voltage Controlled Oscillator):
    • Waveforms: Sawtooth, Square, Pluse (Dynamic Pluse)
    • Frequency range: VCO-1 in low freq. mode, 0.2 Hz - 20 Hz: VCO-1 and VCO-2 (audio range) about 20 Hz - 20 kHz
    • Warm Up Drift: 1/30 semitone from turn on max
    • Pulse Width: 50 % – 5 %
    • Pulse Width Modulation:
      • ADSR, +45 %
      • LFO, +15 %
    • Voltage Controlled Response: 1 V/oct
    • Maximum Frequency Shifts
      • LFO sin wave, +1/2 oct.
      • LFO square wave, +1.5 oct.
      • ADSR, +9 oct.
      • S/H, +2 oct.
  • VCF (Voltage Controlled Filter)
    • Types: Low pass (I: 12 dB/oct., II III: 24 dB/oct.)
    • Frequency Range: 16 Hz - 16 kHz
    • Maximum Usable Q: 30
    • Resonance: 1/2 - self oscillate
    • Voltage Controlled Response:
      • C3 key (left edge): 0 V
      • C6 key (right edge) 3 V
  • VCA (Voltage Controlled Amplifier)
    • Dynamic Range: 80 dB
  • Ring Modulator
    • Type: Digital
    • Input Signal: VCO-1, VCO-2 (square wave)
  • Sample & Hold
    • Command Sources: Keyboard or LFO trigger
    • Sampled Signals: VCO-1 sawtooth wave and square wave, VCO-2 square wave and pink noise
  • ADSR Envelope Generator
    • Attack Time: 5 msec. - 5 sec.
    • Decay Time: 10 msec. - 8 sec.
    • Sutatin Level: 0 - 100 % or Peak
    • Release Time: 15 msec. - 10 sec.
  • AR Envelope Generator
    • Attack Time: 5 msec. - 5 sec.
    • Release Time: 10 msec. - 8 sec.
  • Control Input Jacks
    • Pedal: 6.3 mm monaural phone jack
    • Portamento Foot Switch: 6.3 mm monaural phone jack
  • Audio Output Jacks LOW
    • Connector: 6.3 mm monaural phone jack
    • Maximum Output Level: -20 dBu@1 k ohm load
    • Output Impedance: 10 k ohm
  • Audio Output Jacks HIGH
    • Connector: XLR connector
    • Maximum Output Level: +4 dBu@1 k ohm
    • Output Impedance: 330 ohm
  • Headphones Jack
    • Connector: 6.3 mm stereo phone jack
    • Maximum Output Level: 50 mW + 50 mW@ 33 ohm load
    • Output Impedance:
      • 10 ohm
  • External Audio Input (Ext Audio Input) Jack
    • Connector: 6.3 mm monaural phone jack
    • Maximum Input Level: -10 dBu
    • Input Impedance: 22 k ohm
  • MIDI Connector: IN
  • USB Connector: Type B
  • CV IN/OUT Jacks
    • Keyboard CV (IN/OUT): 1 V/oct.
    • Connector: 3.5 mm monaural phone jack
  • GATE IN/OUT Jacks
    • GATE IN: +3 V (minimum)
    • GATE OUT: +10V; key down; 0 V all keys up
    • Connector: 3.5 mm monaural phone jack
  • TRIG IN/OUT Jacks
    • TRIG IN: +3 V pulse min., 10 µsec. Duration minimum
    • TRIG OUT: +10 V pulse on key depression, 10 µsec. Duration
    • Connector: 3.5 mm monaural phone jack
  • Power Supply: AC adapter jack (DC 9V)
  • Power Consumption: 6.5 W
  • Dimensions (WxDxH): 19.53" x 10.43" x 3.50" (496 x 265x 89 mm)
  • Weight: 8.16 lbs (3.7 kg)
  • Design Variations: White (ARP ODYSSEY Module Rev1),Black and Orange (ARP ODYSSEY Module Rev3)
  • Included Items: AC adapter, phone cable, mini-phonecable
  • Accessories
    • Expression/Volume Pedal: XVP-20
    • Volume Pedal: VP-10
    • Pedal Switch: PS-3
    • Pedal Switch: PS-1
    • Patch Cables: SQ-CABLE-6
