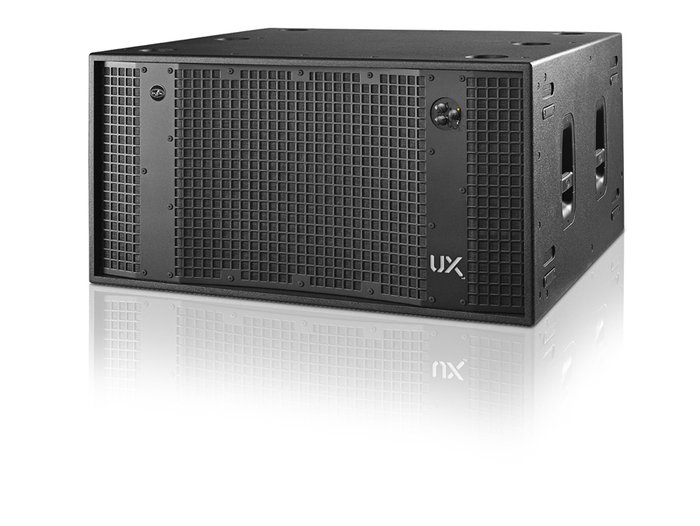

DAS Audio UX-221A
Powered subwoffer w/DASnet, 2x21"

OUR PART #:  UX-221A

The DAS Audio UX-221A make use of two 21? loudspeakers with impressive specifications.
Learn More

Call for price! Not available online.
List Price: $13,965.00

Related Products

The DAS Audio UX-221A make use of two 21? loudspeakers with impressive specifications. The 21UXN loudspeakers are equipped with 6? voice coils, a remarkable 60 mm peak-to-peak excursion, and powerful neodymium magnet assemblies. Efficient ventilation of the voice coil gap provides for a high thermal rating, and reduced power compression.

The UX-221A amplifier offers 2 x 3400 W and incorporates the latest in Class D power amplification. A high efficiency, low consumption universal power supply with Power Factor Correction (PFC) allows for fail-safe use worldwide. State-of-the-art electronic design such as the fixed frequency switch mode output stage provides for the highest grade of audio accuracy. A comprehensive set of “smart” protections include thermal, over current, short circuit and overload on the output, clip limiter and high frequency protection keeping the amp and acoustic components safe.

The enclosure is constructed using  21 mm Birch plywood and makes use of extensive bracing to eliminate resonances. The woodwork is finished with the robust D.A.S. ISO-flex protective coating for durability.  A dolly platform with locking casters denominated the PL-221S is offered to stack and move the systems. Protection during transport is provided by the optional covers available from D.A.S.

DAS Audio UX-221A Features:

  • Powered ultra low frequency subwoofer system
  • 2 x 3400 W Class D amplifier
  • DASnet™ remote monitoring and control capable
  • Twin 21? Neodymium loudspeakers with 6? voice coils
  • Solid 21 mm Birch plywood construction
  • Impressive 60 mm peak-to-peak excursion

DAS Audio UX-221A Specifications:

  • Nominal LF Amplifier Power: 2 x 3400 Wcontinuous
  • Frequency Range (-10 dB): 28 Hz - 125 Hz
  • Rated Peak SPL at 1 m: 145 dB
  • Connectors:
    • Audio Input: Female XLR
    • Audio Loop Thru: Male XLR
    • DASnet Input: etherCON
    • DASnet Output: etherCON
    • AC INPUT: powerCON TRUE1
  • AC Requirements: Universal Mains 85 - 230V, 18.4 A @115V/9.2A @ 230 V
  • Enclosure Material: Birch Plywood
  • Color/Finish: Black/ISO-flex Paint
  • Dimensions (H x W x D): 60 x 120 x 110 cm (23.6 x47.2 x 43.3 in)
  • Weight: 150 kg (330 lb)
