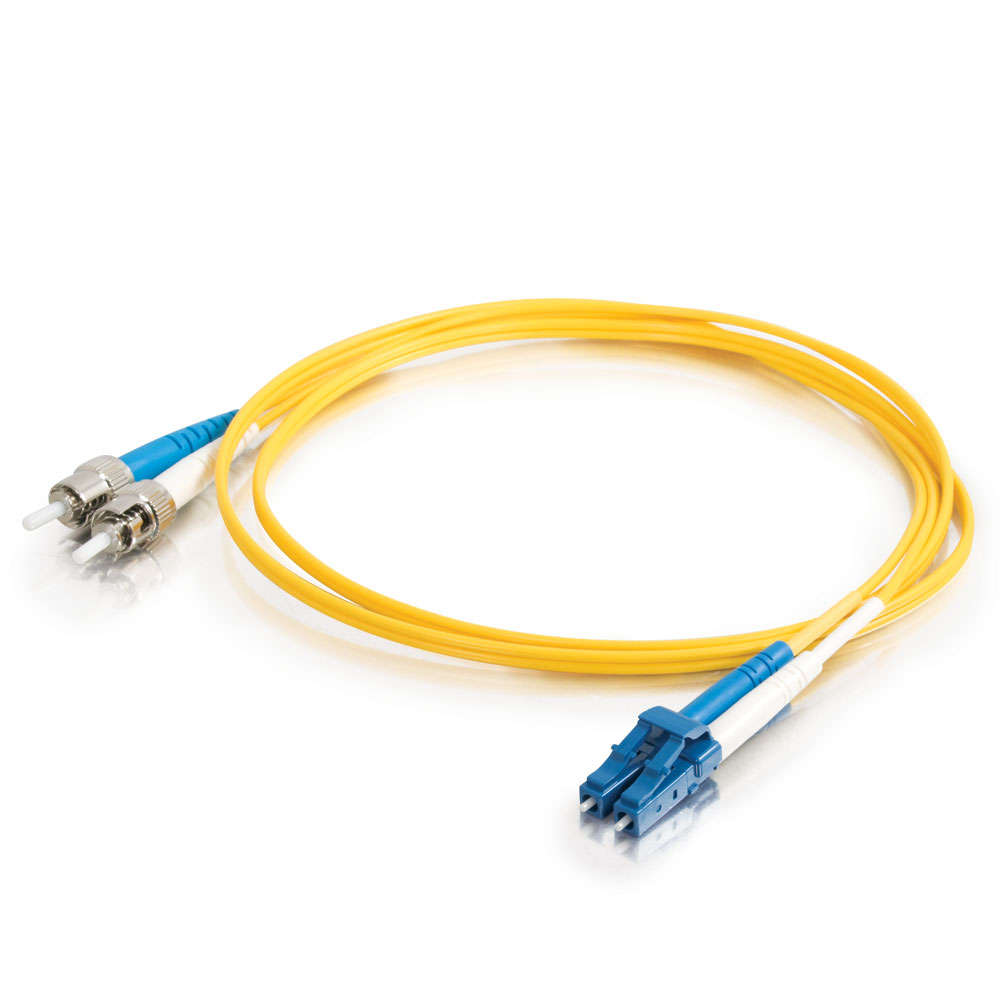

Cables To Go 37474 LC to ST 9/125 OS2 Duplex Single-Mode Cable 1M PVC Fiber Optic Cable, Yellow

With LC to ST termination, this high quality fiber optic patch cable from Cables To Go is specificially designed for gigabit ethernet applications, and provides high bandwidth and transmission rates over long distances. The patented injection molding process provides each connection greater durability in resisting pulls, strains and impacts from cabling installs. A pull-proof jacket design surrounds the popular 9/125 single-mode fiber, making it immune to electrical interference.

Cables To Go LC to ST 9/125 Single-Mode Fiber Optic Cable Features:

• OS1 - 9µm core
• OFNR - Riser rated jacket
• Tested in accordance with EIA/TIA-455-171A

Cables To Go LC to ST 9/125 Single-Mode Fiber Optic Cable Specifications:

• Part Number: 37474
• Color: Yellow
• Length: 1 Meter
• Warranty: Lifetime
• Weight: 0.07 lb
• Connector 1: (1) LC Male
• Connector 2: (1) ST Male
• LC Connector Dimensions: 10.75mm H x 12.5mm W x 50mm D (with installed duplex clip)
• ST Connector Dimensions: 9.8mm H x 19.6mm W x 59mm D
• Maximum Connector Loss: 0.50 dB
• Typical Connector Loss: 0.30 dB
• Typical Return Loss: -55 dB
• Buffer Material: PVC
• Buffer OD: 900 µm
• Jacket Material: PVC (OFNR riser-rated)
• Jacket OD: 1.8 mm
• Installation Tensile Load: 100 N (445 lbs)
• Long-Term Tensile Load: 50 N (222 lbs)
• Maximum Tensile Load: 100 N/cm
• Installation (Loaded) Minimum Bend Radius: 5.0 cm (1.97")
• Long-Term (Unloaded) Minimum Bend Radius: 3.0 cm (1.2")
• Crush Resistance: 750 N/cm
• Impact Resistance: 1,000 cycles
• Flex Resistance: 5,000 cycles
• Attenuation at 1550 nm: 0.25 dB/km
• Attenuation at 1310 nm: 0.35 dB/km
• Operating Temperature: -20°C to +70°C
