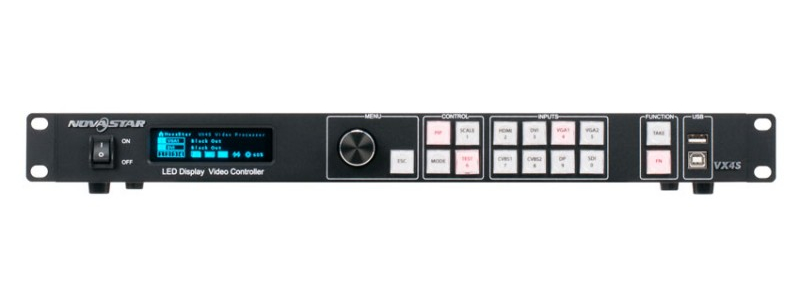

ADJ VX4S
Video Wall Processor, Scaler, and Switcher

OUR PART #:  VX4S

Our Price: $1,999.95
List Price: $2,999.95
You save 33%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

ADJ VX4S
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The ADJ NOVASTAR VX4S™ is a professional and user friendly LED display controller and a powerful front end processor that supports multiple signal formats including DP / HDMI / VGA / DVI / CVBS / SDI, and up to 1920 x 1200p @60Hz input resolution, includes (4) RJ45 outputs for up to 2.6 million pixels of LED control, and supports Nova’s new generation point-by-point correction technology.

NOVASTAR VX4S™ is compatible with the ADJ AV6 video panels.

ADJ VX4S Includes:

  • DP cable
  • VGA cable
  • USB cable
  • HDMI cable
  • DVI cable
  • CAT5 cable
  • Power cable

ADJ VX4S Features:

  • User Friendly LED Display Controller
  • Powerful Front End Processor
  • Up to 1920 x 1200 p @60Hz Input Resolution
  • Multiple Video Signal Format Support
  • New Generation Point-By-Point Correction Technology
  • Cascade Multiple Units Together Via USB
  • Rack Mountable Aluminum Enclosure (screws not included)

ADJ VX4S Specifications:

  • Contol/Connections:
    • (1) RJ45 LAN for IP Based Control
    • (4) RJ45 Outputs for up to 2.6 million Pixels of LED Control
    • (2) USB Type A and (2) USB Type B Ports (1 set on each side)
    • (1) 1/8" (3.5mm) Audio Input
    • Video Input: (1) DP / (1) HDMI / (2) VGA / (1) DVI / (2) CVBS / (1) SDI
    • Video Output: (1) DVI Loop / (1) DVI / (1) VGA / (1) SDI Loop
    • Locking IEC Power Input
  • Size/Weight:
    • LxWxH: 19.0” x 10.8” x 1.8” (483 x 275 x 45mm)
    • Weight: 5.6 lbs. (2.55 kg)
  • Electircal:
    • AC 100-240V - 50/60Hz - 0.65A
    • Max Power Consumption: 16W
