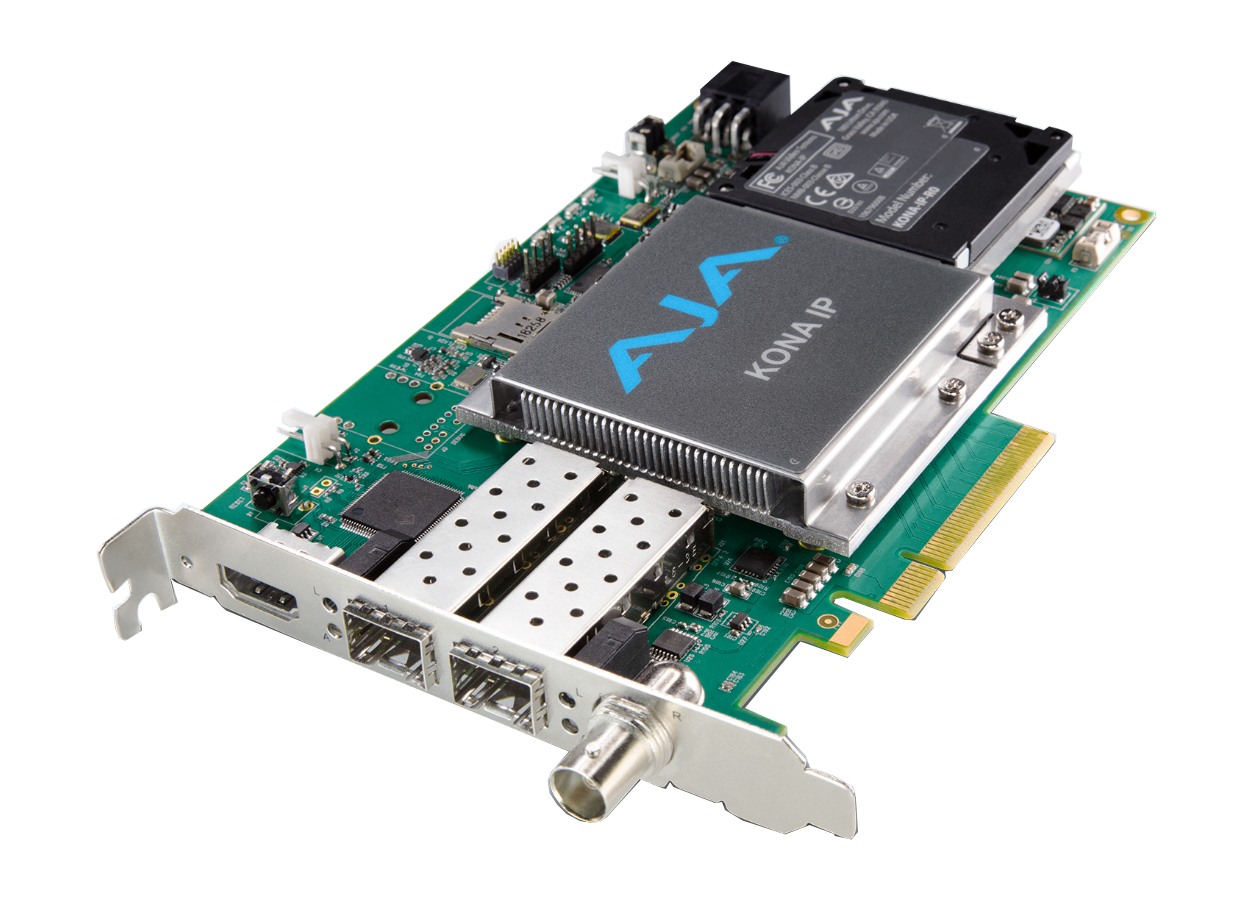

AJA Video Systems Inc KONA-IP
Compatible I/O for IP Pipelines

OUR PART #:  KONA-IP

The AJA Video Systmes KONA® IP is desktop video and audio I/O for professional IP based workflows.
Learn More
Our Price: $2,495.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc KONA-IP
Qty:
In Stock

Similar Products

The AJA Video Systmes KONA® IP is desktop video and audio I/O for professional IP based workflows. KONA IP is the next generation of AJA’s industry leading KONA line of PCIe capture and playback cards, and works with AJA's Control Room, Control Panel software and SDK tools, providing support for leading third party content creation applications. Designed as a flexible platform with support for SMPTE 2022-6 and 2022-7 uncompressed IP video, KONA IP offers you the flexibility to keep current as the IP transition proceeds.

AJA Video Systems KONA-IP Features:

  • Transition seamlessly
  • Throughput
  • Flexible patform
  • Great compatibility
  • HDMI monitoring
  • HDR

AJA Video Systems KONA-IP Specifications:

  • Video Formats:
    • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1080i 25, 29.97
    • (HD) 720P 50, 59.94, 60
    • (SD) 625i 25
    • (SD) 525i 29.97
  • Media Transport Interface for SMPTE 2022-6, 2022-7:Two SFP+ Cages - SFPs not included
  • Video Input:
    • SMPTE 2022-6, 2022-7: Up to 4 channels input
  • Video Output Digital:
    • SMPTE 2022-6, 2022-7: Up to 4 channels output
    • HDMI v1.4
      • 30/36 bits/pixel, RGB or YUV, 2.25 Gbps
      • 2K/HD/SD
      • HDR 10 Support - HDR Info frame metadata, in accordance with HDMI 2.0a/CTA-861.3
  • Audio Input Digital: 16-Channel SDI embedded audio, 24-bit per channel, 48 kHz synchronous
  • Audio Output Digital:
    • 16-Channel SDI embedded audio, 24-bit per channel, 48 kHz sample rate, synchronous
    • 8-Channel HDMI embedded audio, 48 kHz sample rate, synchronous
  • Downstream Keyer: Supports graphics with alpha channel over video, matte or framebuffer, or framebuffer content over incoming video or matte
  • Reference and LTC I/O: BNC assignable to reference video or LTC input
  • Reference:
    • Analog Color Black (1V) or Composite Sync (2 or 4V)
    • Nonterminating
  • Electrical Interface: 8-lane PCIe 2.0
  • Size (WxDxH): 0.75" x 8.25" x 5.0" (19.05 x209.55 x 127mm)
  • Weight: 0.7 lb (0.3 kg)
  • Power: 25W typical, 27W maximum
  • Environment:
    • Safe Operating Temperature: 32° to 104°F (0° to 40°C)
    • Safe Storage Temperature (Power OFF): -40° to 140°F (-40° to 60°C)
    • Operating Relative Humidity: 10-90% noncondensing
    • Operating Altitude: <3,000 meters (<10,000 feet)
