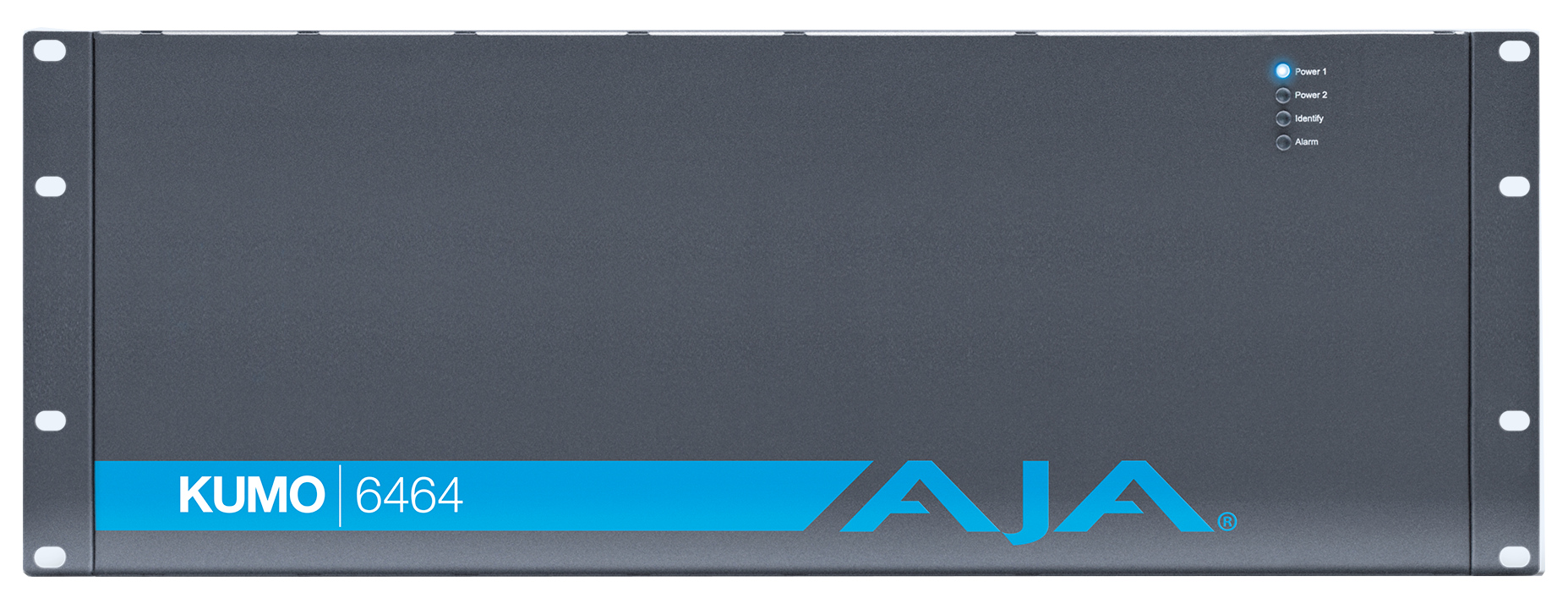

AJA Video Systems Inc KUMO-6464
Compact 64x64 3G-SDI Router

OUR PART #:  KUMO-6464

The AJA KUMO-6464 router offers 64 inputs and 64 outputs of 3G-SDI video and audio, while maintaining a slim and cmpact 4RU profile.
Learn More

Call for price! Not available online.
List Price: $7,995.00

Similar Products

The AJA KUMO-6464 router offers 64 inputs and 64 outputs of 3G-SDI video and audio, while maintaining a slim and cmpact 4RU profile. KUMO 6464 has elegant and powerful web-based network control, and supports any SDI-based signal up to 3G-SDI, including HD and even 4K/UltraHD signals. Built to the same high quality standards as all AJA KUMO products, KUMO 6464 is the ideal choice for any installation where a balance of size and routing capacity are critical.

AJA Video Systems Inc KUMO-6464 Features:

  • Compact rounting
  • Powerful signal control
  • Broadcast standard reliability
  • Simple installation and configuration
  • Affordable

AJA Video Systems Inc KUMO-6464 Specifications:

  • Video Formats:
    • (HD) 1080i 25, 29.97, 30
    • (HD) 1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 720p 50, 59.94, 60
    • (SD) 625i 25
    • (SD) 525i 29.97
  • Video Input Digital:
    • 3G-SDI, SMPTE-259/292/424, 8 or 10-bits
    • Single Link 4:2:2 (1 x BNC per input)
  • Video Output Digital:
    • 3G-SDI, SMPTE-259/292/424 8 or 10-bits
    • Single Link 4:2:2 (1 x BNC per input)
    • Reclocker: SMPTE 259/292/424 compliant, automatic rate selection
  • Audio Input Digital: 8-Channel, 24-bit SMPTE-259 SDI embedded audio, 48 kHz sample rate, synchronous
  • Audio Output Digital: 8-Channel, 24-bit SMPTE-259 SDI embedded audio, 48 kHz sample rate, synchronous
  • Switching Modes:
    • Quad Link: Supports 4K/UltraHD
    • Dual Link
    • Multiport SDI switching for 2 or 4 sources at once
  • Timecode: SDI RP188 preserved from inputs to outputs
  • Reference Input:
    • Analog Color Black (1V) or Composite Sync (2 or 4V)
    • Looping, nonterminating
  • Network Interface:
    • 10/100/1000 Ethernet (RJ-45)
    • Embedded web server for remote control
  • Machine Control:
    • RS-422, Grass Valley Native Protocol
    • 9-pin D-connector pinout is as follows:
      • 1: GND
      • 2: RX-
      • 3: TX+
      • 4: GND
      • 5: No Connection
      • 6: GND
      • 7: RX+RX+
      • 8: TX-
      • 9: GND
      • Shell: GND
  • Size (WxDxH): 19.0" x 1.5" x 7" (482.6mm x 38.1mm x 178.0mm)
  • Weight: 9.2 lbs (4.2 kg)
  • Power:
    • 100-240 VAC 50/60 Hz, 9-17 VDC, 12 VDC nominal, Optional redundant power supply
    • 35 watts, 2.9A at 12VDC
  • Environment:
    • Safe Operating Temperature: 32° to 104°F (0° to 40°C)
    • Safe Storage Temperature (Power OFF): -40° to 140°F (-40° to 60°C)
    • Operating Relative Humidity: 10-90% noncondensing
    • Operating Altitude: <3,000 meters (<10,000 feet)
