AJA Video Systems Inc ROVORX-SDI
UltraHD/HD HDBaseT Receiver to 6G/3G-SDI & HDMI Frame Sync


The AJA Video Systems ROVORX-SDI is a companion UltraHD/HD HDBaseT Mini-Converter receiver for RovoCam, with additional support for other higher frame rate HDBaseT workflows...
Learn More
Our Price: $995.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


AJA Video Systems Inc ROVORX-SDI
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

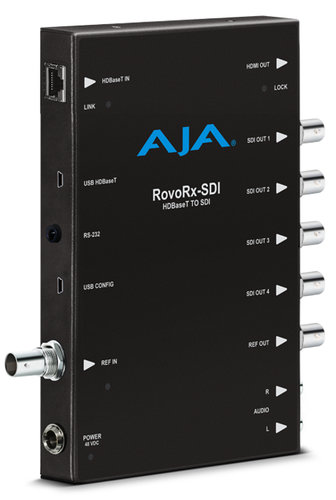

The AJA Video Systems ROVORX-SDI is a companion UltraHD/HD HDBaseT Mini-Converter receiver for RovoCam, with additional support for other higher frame rate HDBaseT workflows, with four integrated 6G/3G-SDI outputs and HDMI video and audio outputs for UltraHD and HD workflows.

Receive the RovoCam’s video and audio up to 100m away from the camera, and output to 6G/3G-SDI monitors, routers and recorders and HDMI TVs and devices simultaneously.

The HDBaseT connector on RovoRx-SDI supports camera uncompressed video, audio, power, and control, all over a single Cat 5e/6 cable, greatly simplifying cabling and systems integration.

RovoRx-SDI uniquely offers a DA Mode for signal distribution from an HDBaseT source, greatly expanding HDBaseT delivery options.

AJA Video Systems ROVORX-SDI Includes:

  • Four 6G/3G-SDI outputs
  • HDMI UltraHD/HD output
  • DA Mode for distributing multiple SDI signals from anHDBaseT source
  • RCA Stereo audio output
  • USB
  • RS-232 Bi-directional
  • HDBaseT connector (RJ-45) allowing for camera interaction, power, andcontrol, all over one Cat 5e/6 cable

AJA Video Systems ROVORX-SDI Features:

  • Four 6G/3G-SDI outputs support video and embeddedaudio for incredible multi-format compatibility
  • 8-Channels (4 pairs) of SDI embedded audio supported
  • DA Mode for distributing 6G/3G-SDI UltraHD and HDsignals from HDBaseT sources
  • HDMI simultaneous output for UltraHD and HD displays
  • REF in/out that can be genlocked with other broadcastgear
  • USB port for software configuration of SDI settings
  • Power over HDBaseT (PoH), allowing RovoCam to be powered remotely from its physical location

AJA Video Systems ROVORX-SDI Specifications:

  • Video Formats:
    • (UltraHD) 3840 x 2160p 25, 29.97
    • (HD) 1080p 50, 59.94
    • (HD) 1080i 25, 29.97
    • (HD) 720p 50, 59.94
    • (SD) 625i
    • (SD) 525i
  • Video Input: HDBaseT (RJ-45), Analog Video referenceterminating input
  • Video Outputs:
    • HDMI 1.4b, No EDID negotiation, No embedded audio
    • 6G-SDI output on SDI 1-4
      • Four 6G-SDI while in "DA Mode"
      • UltraHD 3840 x 2160p 25, 29.97
      • UltraHD 4:2:2 or 4:4:4 (4 x BNC)
      • 4K/UltraHD LFR 3.0 GB 2SI (2 x BNC)
      • 4K/UltraHD LFR 1.5 GB 2SI (4 x BNC)
      • 4K/UltraHD HFR 3.0 GB Level A 2SI (4 x BNC)
      • 4K/UltraHD HFR 3.0 GB Level B 2SI (4 x BNC)
    • 3G-SDI (Level A or B): (HD) 1920 x 1080p 50, 59.94
    • HD-SDI:
      • (HD) 1920 x 1080i 50, 59.94
      • (HD) 1280 x 720p 50, 59.94
    • SD-SDI:
      • (SD) 625i 50
      • (SD) 525i 59.94
  • Video Displays: HDBaseT Cable Run Performance for 4K/UltraHD/HD

  • Audio Output Digital:
    • 8-Channels (4 pairs) of SDI embedded audio supported
    • Rates supported: 48 kHz
  • Audio Output Analog: RCA connector, 2-Channelunbalanced
  • RS-232: 3.5mm TRS Input for RS-232 bidirectionalsignal
  • USB Config: One USB
  • Size (WxDxH): 4.66” x 6.97” x 0.94” (118 x 177 x23.9mm)
  • Weight: 0.8 lbs (0.4kg)
  • Power:
    • RovoRx-SDI only: 48V @ 303mA = 14.5W typical, 48V @ 335mA = 16W max
    • RovoRx-SDI powering RovoCam: 48V @ 450mA = 21.6W typical, 48V @ 480mA = 23W max
  • Environment:
    • Safe Operating Temperature: 32° to 104°F (0° to 40°C)
    • Safe Storage Temperature (Power OFF): -40° to 140°F (-40° to 60°C)
    • Operating Relative Humidity: 10-90% noncondensing
    • Operating Altitude: <3,000 meters (<10,000 feet)
