AJA Video Systems Inc ROI-SDI
DVI/HDMI to SDI with ROI Scaling


Our Price: $995.00
Write the first review.

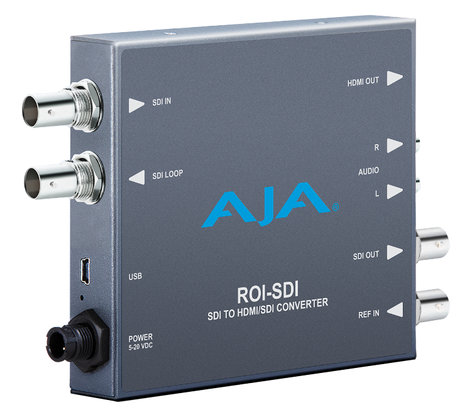

AJA Video Systems Inc ROI-SDI
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The AJA Video Systems ROI-SDI Scan Converter allows exceptionally high quality conversion and extraction of a Region of Interest (ROI) from a 3G-SDI input to 3G-SDI and HDMI mirrored outputs at an affordable price in a very portable form factor. With incredible image scaling, extensive aspect ratio conversion and audio functionality, ROI-SDI fulfills the growing need to customize video signals for a range of display and SDI workflow needs without sacrificing budget or space.

AJA ROI-SDI Features:

  • 3G-SDI to HDMI and 3G-SDI conversion
  • Region of Interest scaling
  • 3G-SDI loop through
  • Audio embedding
  • Aspect ratio conversion
  • Genlock input
  • Configure via USB port and supplied Mini-Config software
  • Uses 5-18VDC power (universal power supply included)
  • 5 year warranty

AJA ROI-SDI Specifications:

  • Video Formats:
    • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1080i 25, 29.97, 30
    • (SD) 720p 50, 59.94, 60
    • (SD) 625i 25
    • (SD) 525i 29.97
  • Reference Input:
    • Supported reference video inputs include:
      • 1080i tri-level sync
      • 1080p tri-level sync
      • 720p tri-level sync
      • 625i Color Black
      • 525i Color Black
  • Video Input: 3G-SDI BNC, SMPTE-259/292/424
  • Video Outputs:
    • 3G-SDI BNC, loop through
    • 3G-SDI BNC, SMPTE-259/292/424
    • HDMI Type A, HDMI v1.4
  • HDCP: ROI does not encode the HDMI output with HDCP encryption
  • Audio Output Digital:
    • SDI embedded audio, 24-bit, 8-Channel
    • HDMI embedded audio, 24-bit, 2-Channel or 8-Channel
  • Audio Output Analog: Two Analog RCA Jack, 2-Channel
  • User controls: USB port used with supplied cable and Mini-Config software application to configure device via Mac or Windows
  • Size (WxDxH): 5.765" x 4.02" x 0.9" (146.431mm x 102.108mm x 22.86mm)
  • Power:
    • Uses AJA power supply model DWP-U-R1 (included with purchase)
    • 100-240V, 50/60 Hz universal input
    • 5-20V DC regulated, 8 watts max
  • Safe Operating Temperature: 32° to 104°F (0° to 40°C)
  • Safe Storage Temperature (Power OFF): -40° to 140°F (-40° to 60°C)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
