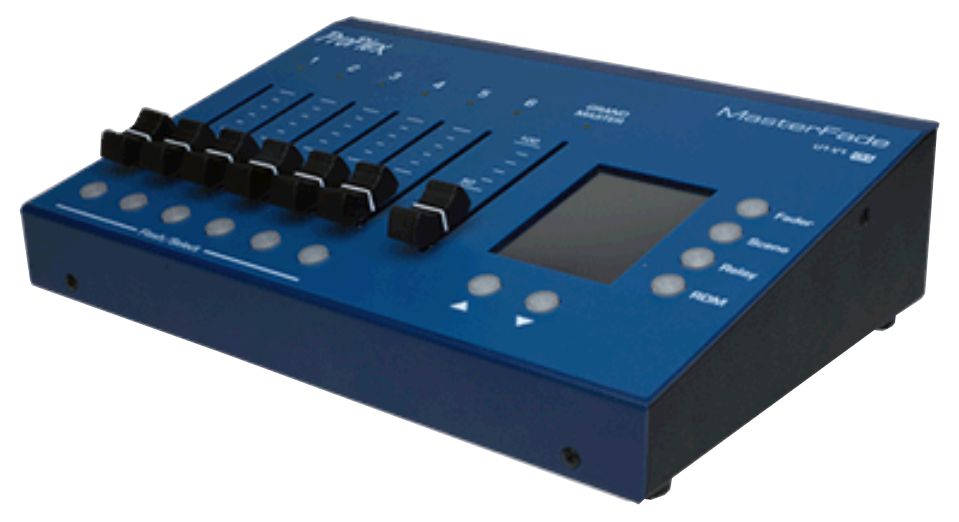

ProPlex MasterFade U1-V1


Our Price: $1,499.40
List Price: $1,785.00
You save 16%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The TMB PPDDMFCU1V1 MasterFade is a unique lighting capture and playback consoles with full RDM management capability. The unit operates within one DMX universe (512 channels). The six versatile faders can have individual channels patched to them, store static scenes, or store dynamic scenes. Multiple pages of faders can be accessed via user-friendly the touchscreen. A 10-hour dynamic recording time is available for all memories (actual recording length depends on the DMX input rate). MasterFade merges incoming DMX signals and its own recorded and playback signal by the following rule: HTP (Highest Takes Precedence). The final output level will be the highest value coming from the same DMX channel from both playback and DMX input. MasterFade supports the RDM protocol and allows changes to a fixture’s DMX address, DMX mode, lamp settings, and displays a fixture's sensor statuses. Furthermore, the device can be located and reset via RDM protocol options.

TMB U1-V1 Features:

  • Patch any six channels, or record scenes to the fader
  • Capture static or dynamic scenes from an external console
  • Setup and monitor RDM-capable devices

TMB U1-V1 Specifications:

  • Part Number: PPDDMFCU1V1
  • DMX Universes: 1
  • DMX Inputs: 1
  • DMX Outputs: 1
  • Recorded memories: Multiple
  • Static or variable scenes: 4
  • Master faders: 6
  • Grand Master: 1
  • Touchscreen: 4.1” 1
  • Record length hours: 24
  • Cooling: Conventional
  • IP Rating: IP 20
  • Operating temperature: -20º - +40ºC
  • DMX connectors (In/Out): XLR5 M/F
  • Power connectors (In): PowerCON 20A
  • AC Power: 100-240V, 48-62Hz
  • Power consumption: 10W
  • Body Style: Desktop
  • Dimensions (WxHxD): 220mm x 178mm x 41mm
  • Weight: 1.4 Kg
